The VB60 Pepper Seed Vision Counting & Packing Machine accurately counts seeds for batch packaging. It uses high-speed CCD imaging technology to ensure high precision, unlike weighing methods, which are less accurate because individual seed weights vary.
Model :
- VB60-1
Features :
- Counts pepper seeds accurately for batch packaging
- Uses high-speed CCD vision technology
- Provides precise and efficient bulk seed counting
- Eliminates inaccuracies found in weighing-based methods
- Helps save costs by reducing errors and labor requirements
Advantages :
- High efficiency:Vision based counter uses large track and scan falling objects,instead of using several narrow tracks to separate objects one by one
- 99.99% accuracy
- Insensitive to dust
- Fast changeover:One button operation for clearing to change objects
- Self-learning software:Easy to calibrate for multiple objects counting
- Extremely low maintenance
- Reducing labor cost
- Compacted design to save space

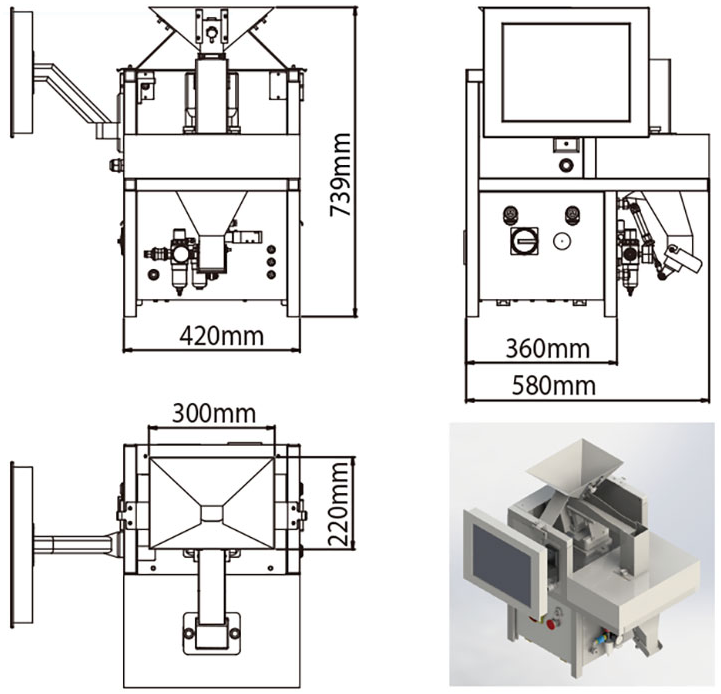

Dimension :
.png)
Applications :
.png)
Specifications :
- High-frequency CCD sensor with a scanning speed of 10,000 times per minute
- 6-million-pixel optical lens with a minimum recognition size of 0.2 mm
- Advanced FPGA processing and control system with 1-nanosecond response time
- Optimized algorithms to accurately detect overlapping objects and tiny impurities
- Industrial touchscreen tablet for easy operation and storage of programs for different objects
- Intelligent alarm system for abnormal conditions and material shortages, with on-screen alerts
- Patented self-learning technology for easy counting of different objects
- One-button clearing function for quick reset
- Can be connected to ERP systems
- Optional tailing material collection channel
Technical Data :
| Model | VB60-1 | VB2-60-1 |
| Applicable material size | Cube : 2mm≤L≤15mm | Cube : 2mm≤L≤20mm |
| Cuboid /cylinder : φ≤15mm,L≤30mm | Cuboid /cylinder : φ≤15mm,L≤30mm | |
| Counting accuracy | 99.99%, No negative error | |
| Unit pack | ≥ 50 | |
| Counting efficiency | Φ3mm, 1000pcs, 3bags/min | φ3mm, 1000pcs, 6bags/min |
| φ10mm, 200pcs, 2bags/min | φ10mm, 200pcs, 4bags/min | |
| Type of applicable materials | Seeds, diamond, fasteners, small parts, capacitors, chips, etc | |
| Applicable to packaging machine | Vertical and premade pouch packaging machine | |
| Power / gas source | 220V,50HZ/0.5-0.6MPa | |
| Dimension | 580mm × 420mm × 740mm | 620mm × 600mm × 740mm |
| Power | 0.4kw | 0.45kw |
