VB224-2 capacitor vision counting & packing machine can count capacitor for batch package. It is highly accurate by adopting high speed CCD image technology, while counting by weigher is not precise for weight of each capacitor is not exactly the same.



Model :


• VB224-2



---

Features :


• Uses high-speed CCD vision technology to count capacitors for batch packaging.
• Provides more accurate counting than traditional weighing methods.
• Eliminates errors caused by weight differences between individual capacitors.
• Improves efficiency and reduces labor costs.
• High-speed camera scans capacitors as they fall from vibrating chutes.
• Image algorithms count each item to achieve accurate batch counting and packaging.
• High-speed camera scans continuously for accurate counting, unaffected by weight differences.
• Intelligent vibration feeding system ensures stable and precise material flow.
• Self-learning software reduces setup time and supports different materials.
• One machine handles multiple products with saved programs.
• One-key cleaning prevents material mixing during changeover.
• Automatic data logging with ERP connectivity for easy tracking.
• Smart alarms detect foreign objects, material shortages, and machine faults.
• Open hopper design prevents blockage and ensures smooth discharge.



---

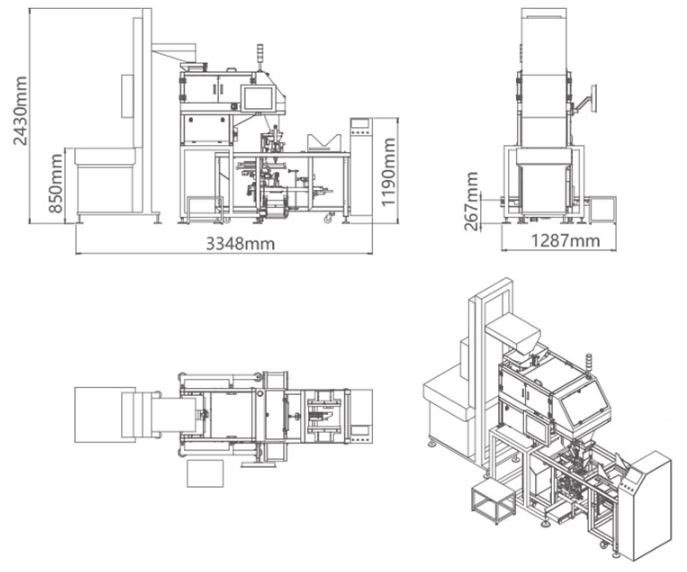

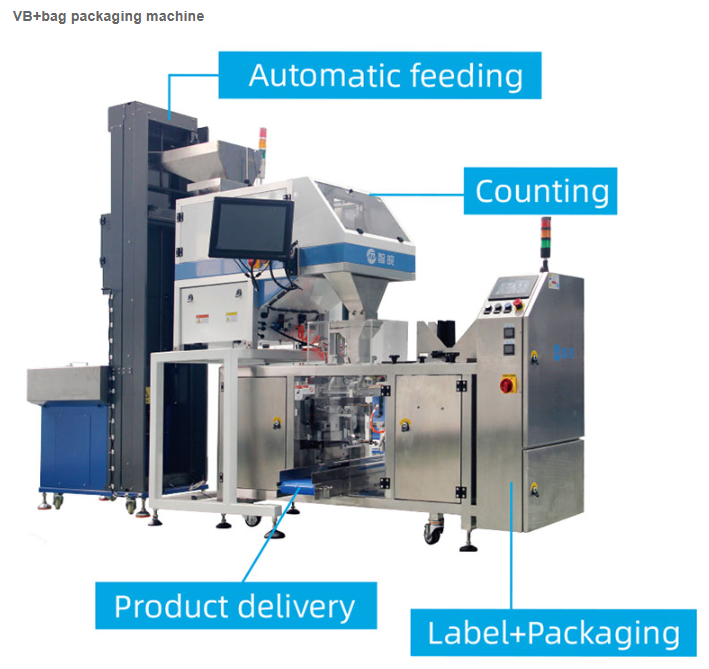

Diagram :









---

Advantages :


• High efficiency: Vision-based counting uses a wide track to scan falling objects, instead of separating them one by one on narrow tracks.
• High accuracy (up to 99.99%): Accurate counting even when individual item weights vary.
• Dust resistant: Performance is not affected by dust in the working environment.
• Fast changeover: One-button operation clears the system for quick product change.
• Self-learning software: Easy calibration and quick setup for counting different objects.
• Low maintenance: Designed for long-term, stable operation with minimal upkeep.
• Lower labor cost: Automated counting reduces manual work.
• Compact design: Saves floor space and fits easily into production lines.

---

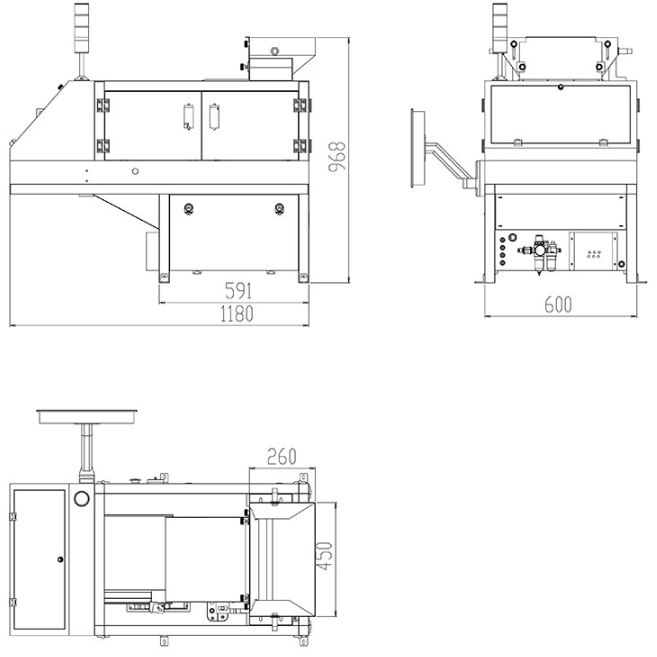

Dimension :






---

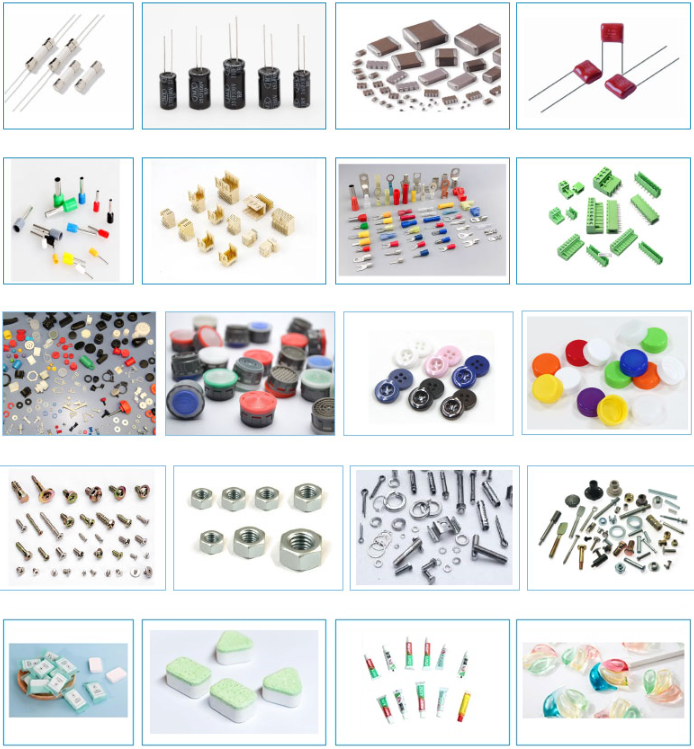

Applications :





---

Specifications :


Model	VB224-2	VB63-2
Applicable material size	Cube : 2mm≤L≤30mm	Cube : 2mm≤L≤20mm
	Cuboid /cylinder : φ≤20mm,L≤50mm	Cuboid /cylinder : φ≤15mm,L≤30mm
Counting accuracy	99.99%, No negative error
Unit pack	≥100	≥50
Counting efficiency	φ10mm,1000pcs,3-4bags/min	φ3mm,1000pcs,3bags/min
	φ25mm,200pcs,3-4bags/min	φ15mm,100pcs,2bags/min
Type of applicable materials	Fasteners, connectors, cold pressure terminals, capacitor, zipper, buttons, seeds, medicine, blood collection needles, steel beads, etc
Applicable to packaging machine	Vertical and premade pouch packaging machine
Power/gas source	220V,50HZ/0.5-0.6MPa
Dimension	1180mm × 600mm × 970mm	940mm × 400mm × 920mm
Power	0.4kw



---
