VB63-2 can count various small parts, such as copper contacts, small screws, and small bolts. The vision counting machine uses CCD image technology to count items accurately for batch packaging.
Since the weight of each item may vary, weight-based counting is not precise. Only vision counting ensures accurate results, helping to reduce costs and labor.
Model :
- VB63-2
Features :
- Counts silver contacts accurately using high-speed CCD vision technology
- Ideal for batch counting and packaging
- More precise than weight-based counting (items have uneven weight)
- Saves labor and reduces material cost
- CCD camera scans items falling from vibrating chutes
- Optimized algorithms analyze images to count objects in real time
Advantages :
- High efficiency: large track vision scanning of falling objects
- 99.99% counting accuracy
- Insensitive to dust
- Fast changeover with one-button clearing
- Self-learning software for easy calibration of multiple objects
- Extremely low maintenance
- Reduces labor cost
- Compact, space-saving design

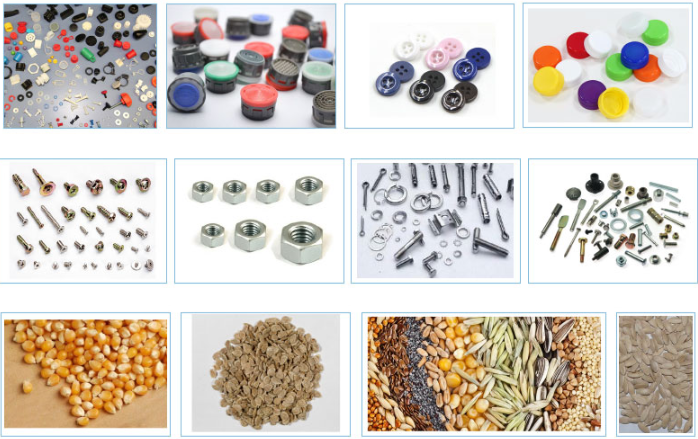

Applications :
- Electronic components: cellphone & hard-disk screws, capacitors, resistors, relay silver contacts, electrical connectors
- Plastic injection-molded parts: pipe fittings, plastic parts, garment buttons, plastic components
- Hardware: nuts, bolts, screws, washers, rivets, pins, studs, inserts, cock bolts, fasteners, self-piercing rivets
- Agriculture: seeds, flower bulbs, dried vegetables
- Accessories
- Engineering parts
.png)
Specifications :
- High frequency CCD sensor,scanning frequency at 10,000 times per minutes,six million pixels optical lens with minimum recognition size of 0.2mm
- Advanced large capacity FPGA processing and control system,response time at 1 nanosecond
- Optimized algorithm software effectively identifies overlapping objects and micro impurity
- Industrial tablet computer with touch screen makes it easy to store program for different objects
- Intelligent alarming system for abnormal situation and shortage, screen will appear tips
- Patented self-learning technology can achieve to count different objects easily
- One button clearing function
- Connectable to ERP system
- Tailing materials collecting channel is optional
Technical Data :
| Model | VB224-2 | VB63-2 |
| Applicable material size | Cube:2mm≤L≤30mm | Cube:2mm≤L≤20mm |
| Cuboid /cylinder:φ≤20mm,L≤50mm | Cuboid /cylinder:φ≤15mm,L≤30mm | |
| Counting accuracy | 99.99%,No negative error | |
| Unit pack | ≥100 | ≥50 |
| Counting efficiency | φ10mm,1000pcs,3-4bags/min | φ3mm,1000pcs,3bags/min |
| φ25mm,200pcs,3-4bags/min | φ15mm,100pcs,2bags/min | |
| Type of applicable materials | Fasteners, connectors, cold pressure terminals, capacitor, zipper, buttons, seeds, medicine, blood collection needles, steel beads, etc | |
| Applicable to packaging machine | Vertical and premade pouch packaging machine | |
| Power/gas source | 220V,50HZ/0.5-0.6MPa | |
| Dimension | 1180mm × 600mm × 970mm | 940mm × 400mm × 920mm |
