The Special Features
The AutoVision series provides stable, reliable and high-accuracy measurement with imported linear scale, precision mechanical structure, high definition camera, automatic zoom lens and intelligent LED illumination.
2.5D Fully Auto Vision Measuring Machine – AutoVision Series
2.5D Fully Auto Vision Measuring Machine with four-axis CNC fully auto close loop control, auto measurement, high accuracy vision measurement and proprietary fully auto measuring software iMeasuring 4.1.
Features
.png "AUTOVISION1")
Moving Gantry Structure
Moving gantry structure, the workpiece is fixed.
Four-Axis CNC Control
Four-axis CNC fully auto close loop control, auto measurement.
Stable Marble Base
“00” grade “JINANQING”marble base and pillar, stable and reliable.
High Accuracy Scale
Imported open type linear scale, resolution is 0.1um, high accuracy, great stability.
Precision Motion System
Imported H grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position.
High Definition Camera
Imported high definition color industry camera, ensure clear observation and stable measurement requirement.
Auto Zoom Lens
6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time.
LED Illumination
Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently.
iMeasuring 4.1 Software
With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation.
Optional Touch Probe
Optional touch probe and laser probe, it can also be customized according to customer request.
Optional FexQMS Software
Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.
.png "AUTOVISION2")

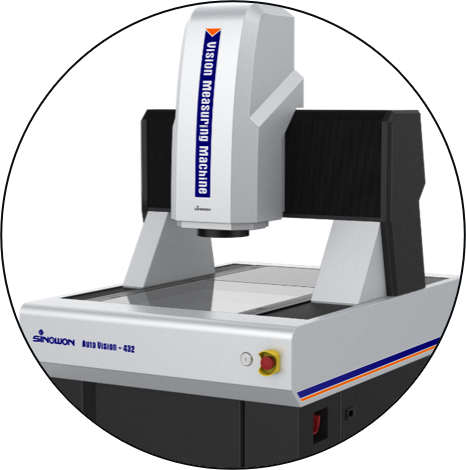

High Accuracy
Imported open type linear scale with resolution of 0.1µm for higher accuracy and greater stability
Imported H grade linear guide, precision grinding ball screw and AC servo motor to ensure accuracy stability of system position
6.5x continue auto zoom lens, precision auto zoom, only need to make pixel calibration one time

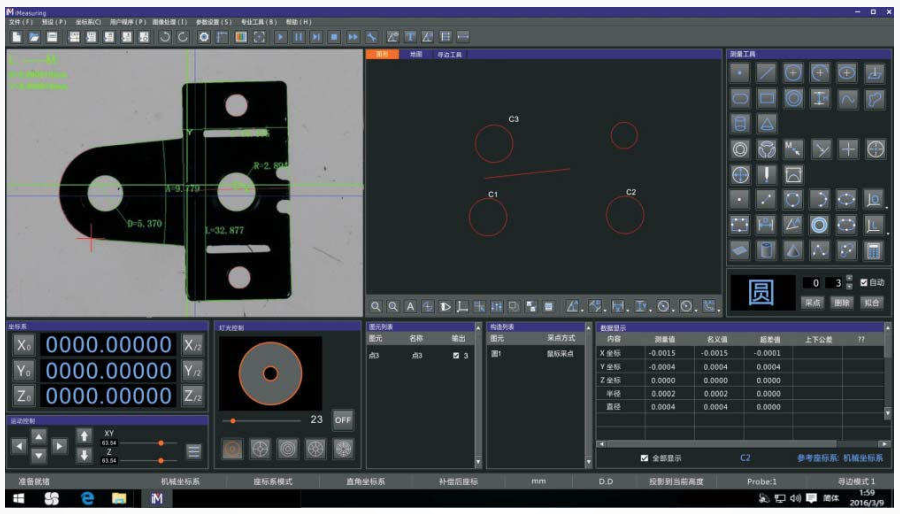

SINOWON iMEASURING 4.1
Professional multisensory 3D measuring software which is friendly operation, powerful function, high accuracy and stability, and simple maintenance that enhance the quality control situation.
.png "IVISION2")
Full Specifications
| Product Name | 2.5D Fully Auto Vision Measuring Machine | ||||||
| Model | AutoVision 432 | AutoVision 542 | AutoVision 652 | AutoVision | |||
| Code | 520-121 | 520-131 | 520-141 | 520-151 | |||
| X-Y axis Travel | 500 x 400 mm | 500 x 400 mm | 600 x 500 mm | 800 x 600 mm | |||
| Z axis Travel | 200 mm | 200 mm | 200 mm | 200 mm | |||
| Load Capacity | 30 kg | 30 kg | 30 kg | 30 kg | |||
| Dimension | 1450 x 950 x 1650 mm | 1450 x 950 x 1650 mm | 1600 x 1050 x 1650 mm | 2000 x 1200 x 1650 mm | |||
| Packing Dimension | 1690 x 1300 x 2000 mm | 1690 x 1300 x 2000 mm | 1800 x 1400 x 2000 mm | 2300 x 1700 x 2000 mm | |||
| Weight | 780 kg | 780 kg | 1380 kg | 2000 kg | |||
| X-Y-Z axis Linear Scale(mm) | Imported open linear scale, resolution: 0.0001 mm | ||||||
| Guidance Mode | Imported H grade linear guide, double track double slider guide | ||||||
| Operation Mode | Joystick controller, mouse operation, automatic detection program | ||||||
| Measurement Accuracy | X-Y axis:≤2 + L/200µm | ||||||
| Z axis: ≤5+ L/200µm | |||||||
| Repeatibility | ±2µm | ||||||
| Video System | 1/2″ color CCD camera | ||||||
| 6.5x automatic zoom lens | |||||||
| Optical magnification: 0.7x – 4.5x, video magnification: 20x – 129x (21.5″ monitor) | |||||||
|
Field-of-View(mm) (Diagonal* Horizontal* Vertical) |
Lens magnification | 0.7X | 1X | 2.0X | 3.0X | 4X | 4.5x |
| 1/2″ CCD | 11.43X9.14X6.86 | 8.00X6.40X4.80 | 4.00X3.20X2.40 | 2.67X2.13X1.60 | 2.00X1.60X1.20 | 1.78 x 1.42 | |
| Illumination | Contour: LED parallel contour illumination | ||||||
| Surface:5-ring 8-division 0-255 grade continue adjustable | |||||||
| Software System | iMeasuring 4.1 Fully Auto Measuring Software | ||||||
| Working Environment | Temperature 20°C±2°C, humidity range <2°C/hr, humidity 30-80%, vibration<0.002g, <15Hz | ||||||
| Power | 220V/50Hz/10A | ||||||
Contact us today to inquire about the 2.5D Fully Auto Vision Measuring Machine and enhance your vision measurement capabilities.
