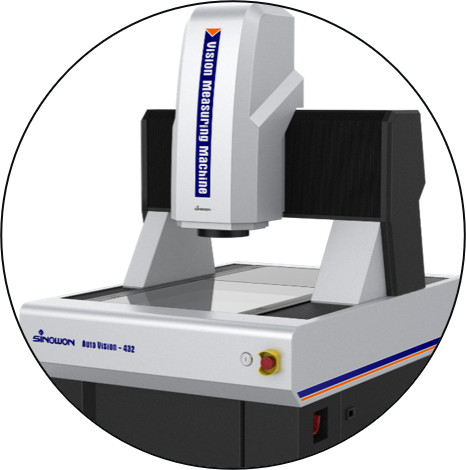

2.5D Fully Auto Vision Measuring Machine

Features

The Special Features

Features

Moving gantry structure, the workpiece is fixed;
Four-axis CNC fully auto close loop control, auto measurement;
“00” grade “JINANQING”marble base and pillar, stable and reliable;
Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;
Imported H grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation;
Optional touch probe and laser probe, it can also be customized according to customer request;
Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

High Accuracy

Imported open type linear scale with resolution of 0.1µm for higher accuracy and greater stability

Imported H grade linear guide, precision grinding ball screw and AC servo motor to ensure accuracy stability of system position

6.5x continue auto zoom lens, precision auto zoom, only need to make pixel calibration one time

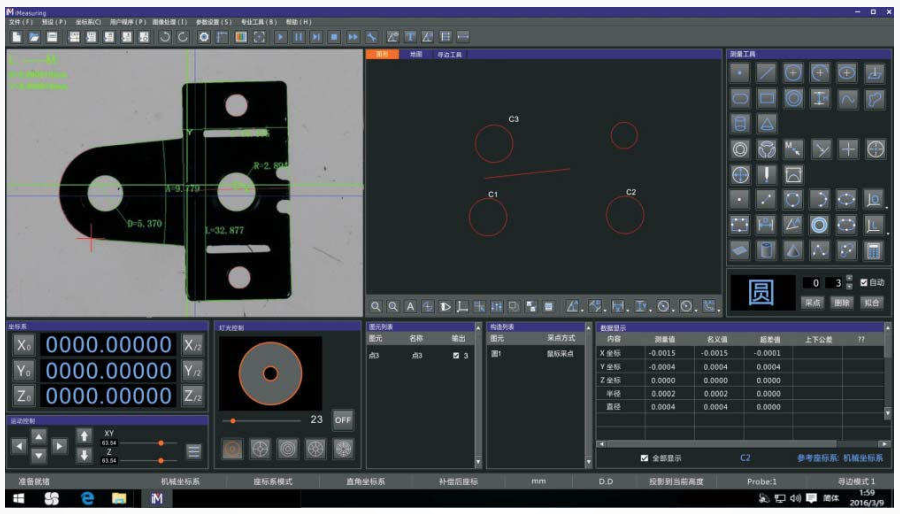

SINOWON iMEASURING 4.1

Professional multisensory 3D measuring software which is friendly operation, powerful function, high accuracy and stability, and simple maintenance that enhance the quality control situation.

Full Specifications

Product Name	2.5D Fully Auto Vision Measuring Machine
Model	AutoVision 432		AutoVision 542		AutoVision 652		AutoVision
Code	520-121		520-131		520-141		520-151
X-Y axis Travel	500 x 400 mm		500 x 400 mm		600 x 500 mm		800 x 600 mm
Z axis Travel	200 mm		200 mm		200 mm		200 mm
Load Capacity	30 kg		30 kg		30 kg		30 kg
Dimension	1450 x 950 x 1650 mm		1450 x 950 x 1650 mm		1600 x 1050 x 1650 mm		2000 x 1200 x 1650 mm
Packing Dimension	1690 x 1300 x 2000 mm		1690 x 1300 x 2000 mm		1800 x 1400 x 2000 mm		2300 x 1700 x 2000 mm
Weight	780 kg		780 kg		1380 kg		2000 kg
X-Y-Z axis Linear Scale(mm)	Imported open linear scale, resolution: 0.0001 mm
Guidance Mode	Imported H grade linear guide, double track double slider guide
Operation Mode	Joystick controller, mouse operation, automatic detection program
Measurement Accuracy	X-Y axis:≤2 + L/200µm
	Z axis: ≤5+ L/200µm
Repeatibility	±2µm
Video System	1/2″ color CCD camera
	6.5x automatic zoom lens
	Optical magnification: 0.7x – 4.5x, video magnification: 20x – 129x (21.5″ monitor)
Field-of-View(mm) *(Diagonal Horizontal* Vertical)**	Lens magnification	0.7X	1X	2.0X	3.0X	4X	4.5x
	1/2″ CCD	11.43X9.14X6.86	8.00X6.40X4.80	4.00X3.20X2.40	2.67X2.13X1.60	2.00X1.60X1.20	1.78 x 1.42
Illumination	Contour: LED parallel contour illumination
	Surface:5-ring 8-division 0-255 grade continue adjustable
Software System	iMeasuring 4.1 Fully Auto Measuring Software
Working Environment	Temperature 20°C±2°C, humidity range <2°C/hr, humidity 30-80%, vibration<0.002g, <15Hz
Power	220V/50Hz/10A

Contact us today to inquire about the 2.5D Fully Auto Vision Measuring Machine and enhance your measurement capabilities.
