Model :
- DF610
Features :
- High Vibration Frequency Achieves fewer deviations in loading due to high vibration frequency, improving supply capacity.
- No Need for Re-adjustment of Spring Steel Sheets Once set, the spring sheets do not require adjustment; speed regulation for different disc bodies can be achieved through frequency and amplitude control.
- Low Noise, High Power With a spring angle of 15 degrees, a wider frequency amplitude range, stronger load capacity, and reduced speed differences between the disc body and the base.
- Reduced Ground Reaction Force Design Through a 15-degree angle and a matched ratio between the lower and upper vibrating bodies, achieving lower downward rebound force.
- Independent Design and R&D, Unique Structural Performance, Product Holds Appearance and Usage Patents.

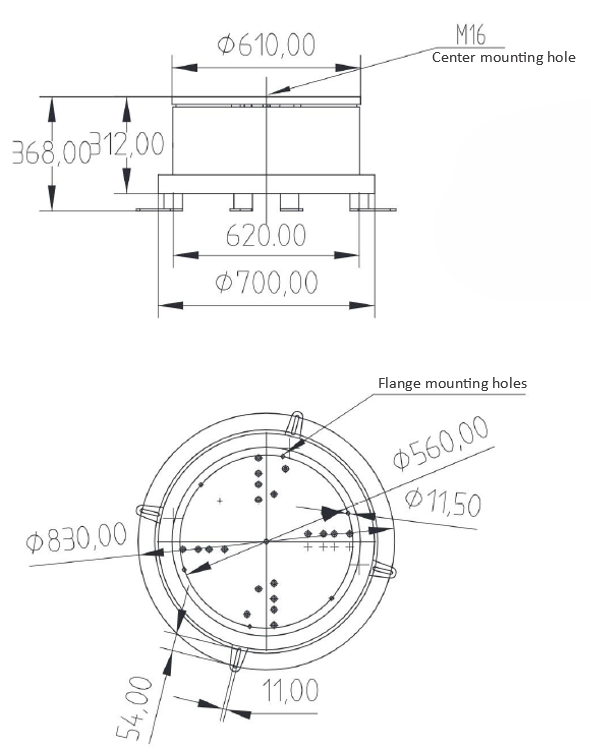

Dimensions :
.png)
Specifications:
| Vol(V) | 220 |
| Freq (Hz) | 50-100 |
| Ctrl Mode | V/F Adj. |
| Amp (mm) | 0.05-0.3 |
| P (W) | 1250 |
| Load (Kg) | 50 |
| Tray Ø (mm) | Ø 1200 |
| Temp (°C) | 0-40 |
| Fix Method | Ctr Hole side lock |
| I (A) | 10 |
