Model :
- DF460
Features :
- High Vibration Frequency by using a high vibration frequency, it reduces deviations in material loading uniformity and improves supply capacity.
- No Need for re-adjusting Spring Steel Sheets Once set, the spring sheets do not require adjustment. Speed regulation for different disc bodies can be achieved through frequency and amplitude control.
- Low Noise, High Power The spring angle is 15 degrees, with a wider frequency amplitude range, stronger load capacity, and reduced speed differences between the disc bodies and the base.
- Reduced Ground Reaction Force Design The 15-degree angle and the proportional match between the lower and upper vibrating bodies achieve lower downward rebound force.
- Independent Design and R&D, Unique Structural Performance The product has obtained appearance and utility model patents.

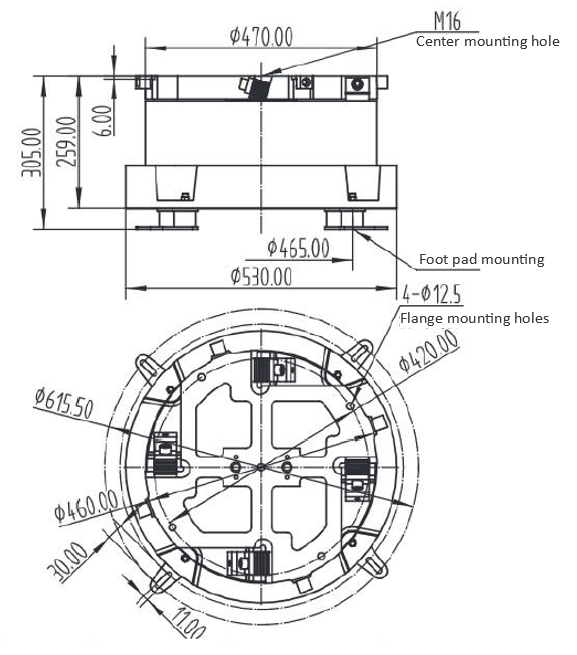

Dimensions :
Specifications:
| Vol(V) | 220 |
| Freq (Hz) | 50-100 |
| Ctrl Mode | V/F Adj. |
| Amp (mm) | 0.05-0.3 |
| P (W) | 1050 |
| Load (Kg) | 17 |
| Tray Ø (mm) | Ø 900 |
| Temp (°C) | 0-40 |
| Fix Method | Ctr Hole side lock |
| I (A) | 6 |
