Roll to Roll Eco-Solvent Inkjet Printer - In Pursuit of High Image Quality and Ease of Use for everyone

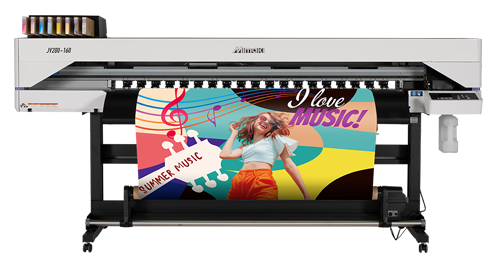

"JV200 Series" is a Roll to Roll eco-solvent inkjet printer which equipped with a single print head of "330 Engine" in our flag-ship printer, enabling even inexperienced operators to produce printed products beautifully, quickly, and easily.
Overwhelming Beauty

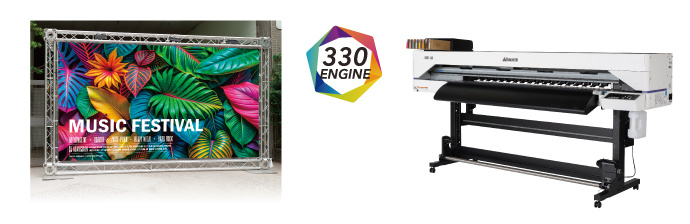

The JV200 is equipped with a single print head of "330 Engine" in Mimaki's flagship printer. The technology of precise control of a minimum 3pl ink drop and the print head that delivers high-density prints, even at high speeds, resulting in overwhelmingly beautiful printing.
.jpg)

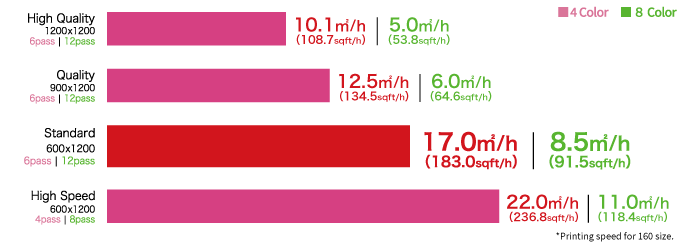

Reliable Productivity even during Peak Season
Simple Design

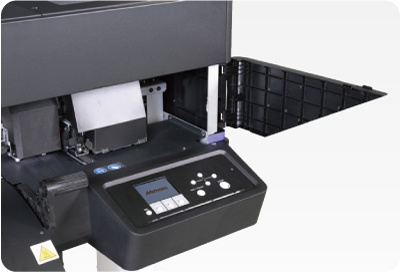

- Wide Open Cover for Easy Access
- Up-Facing Control Panel for Easy Operation

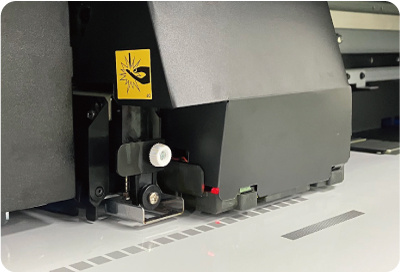

Easy and Precise Automatic Set Up
Automatically performs necessary adjustment at the media setup to ensure optimal image quality at all times. (DAS Dot Adjustment System)
Ink Saving Function: Reduce Ink Consumption with Just 2 Clicks
Anyone can easily reduce ink consumption without technical expertise. This function is available with any substrates and profiles.
Specification:
| JV200-130 | JV200-160 | ||
| Print head | On-demand piezo print head | ||
| Print resolution | 600dpi, 900dpi, 1200dpi | ||
| Print gap | By manual 2 levels (1.5/2.0 mm) | ||
| Ink | Type/Color | Eco-solvent ink | |
| SS22 (C,M,Y,K,Lc,Lm,Lk,Or) | |||
| SS21 (C,M,Y,K,Lc,Lm,Lk,Or) | |||
| BS4 (C,M,Y,K) *1 | |||
| Capacity *2 | SS22：440ml Ink cartridge / 1L Ink pack | ||
| SS21: 440ml Ink cartridge / 2L Ink pack | |||
| BS4: 600ml Ink pack *3 / 2L Ink pack | |||
| Maximum print width | 1,361mm (53.6") | 1,610mm (63.4") | |
| Media | Maximum width | 1,371mm (54.0") | 1,620mm (63.8") |
| Thickness | 1.0 mm or lower | ||
| Roll diameter | φ180 mm or less | ||
| Roll weight | 25 kg (55.1lb) or less [45 kg (99.2 lb) or less with option *4] | ||
| Roll inside diameter | 2 inch / 3 inch | ||
| Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed | ||
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, | ||
| CE Marking (EMC, Low voltage, Machinery directive, and RoHS), | |||
| CB, Energy Star, RCM, KC | |||
| Power supply | Single-phase (AC 100–120V/200–240V)×2 50/60Hz±1Hz | ||
| Power consumption | Max. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode) | ||
| Operational environment | Temperature: 20–30 °C (68–86 °F) | ||
| Relative humidity: 35–65% Rh (Non condensing) | |||
| Recommended temperature: 20–25 °C (68–77 °F) | |||
| Dust level: General office level | |||
| Dimensions (W×D×H) | 2,520 x 748 x 1,370 mm (99.2 x 29.4 x 53.9") | 2,770 x 748 x 1,370 mm (109.0 x 29.4 x 53.9") | |
| Weight | 130 kg (286.6 lb) | 140 kg (308.6 lb) | |
| JV200-160B | ||
| Print head | On-demand piezo head | |
| Print resolution | 600dpi, 900dpi, 1200dpi | |
| Print gap | By manual 2 levels (1.5/2.0 mm) | |
| Ink | Type/Color | Eco-Solvent Ink CS250 (C,M,Y,K) |
| Capacity | 1L bottle | |
| Maximum print width | 1,610 mm (63.4") | |
| Media | Maximum width | 1,620 mm (63.8") |
| Thickness | 1.0 mm or lower | |
| Roll diameter | φ180 mm or less | |
| Roll weight | 25 kg (55.1lb) or less [45 kg (99.2 lb) or less with option *1] | |
| Roll inside diameter | 2 inch / 3 inch | |
| Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed | |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, | |
| CE Marking (EMC, Low voltage, Machinery directive, and RoHS), | ||
| CB, Energy Star, RCM, KC | ||
| Power supply | Single-phase (AC 100–120V/200–240V)×2 50/60Hz±1Hz | |
| Power consumption | Max. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode) | |
| Operational environment | Temperature: 20–30 °C (68–86 °F) | |
| Humidity: 35–65% Rh (Non condensing) | ||
| Recommended temperature: 20–25 °C (68–77 °F) | ||
| Dust level: General office level | ||
| Dimensions (W×D×H) | 2,770 x 748 x 1,403 mm (109.1 x 29.4 x 55.2") *2 | |
| Weight | 140 kg (308.6 lb) | |
Product Application:
.png)
