What are the performance advantages of steel pipes with external 3LPE and internal HEMPEL 35560 Coating?

Introduction

The hybrid coating system combining external 3-layer polyethylene (3LPE) and internal HEMPEL 35560 epoxy paint represents the state-of-the-art in pipeline corrosion protection. This dual-barrier technology addresses both external environmental threats and internal fluid corrosion, delivering exceptional performance in oil/gas, water supply, and industrial applications.

1, Integrated Corrosion Protection

The synergistic combination of external 3LPE and internal HEMPEL 35560 epoxy creates a bidirectional defense:

External 3LPE:

• 3-layer structure (FBE+adhesive+PE) provides >50kV dielectric strength.
• Withstands 28-day cathodic disbondment ≤6mm (ISO 21809-1).
• Impact resistance >10J/mm at -30°C

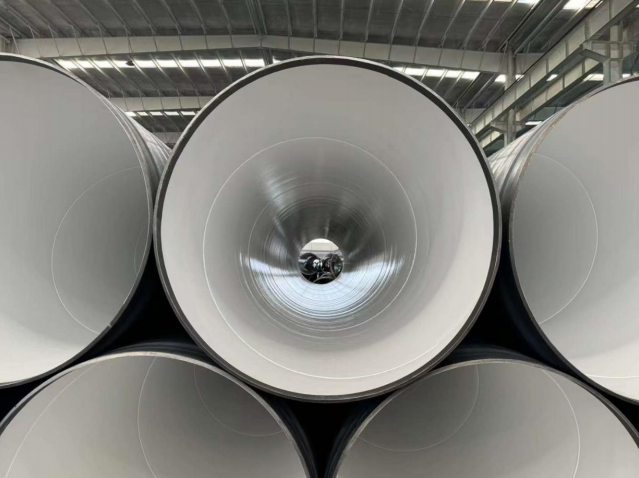

Internal HEMPEL 35560:

• NSF/ANSI 61 certified for potable water.
• Reduces biofilm formation by 85% vs uncoated pipes.
• Maintains adhesion after 5,000 hrs in pH 2-12 solutions.

2, Mechanical amp; Operational Benefits

• Impact resistance: 3LPE layer absorbs >8J/mm² kinetic energy during trenchless installation.
• Flow efficiency: Internal coating's surface roughness (Ra ≤7μm) lowers pressure loss by 18% in water pipelines.
• Temperature adaptability: Operates continuously at -40°C~110°C (short-term peak 130°C).

3, Operational Benefits

• Internal surface roughness Ra <10μm reduces pumping energy by 15-20%.
• Temperature range: -40°C to 110°C continuous service.
• Field-repairable with standard epoxy kits.

4, Economic Value

• Lifecycle cost: Reduces maintenance by 60% over 30 years compared to FBE-only pipes.
• Installation flexibility: Compatible with HDD, sliplining, and welding without coating damage.

5, Certification amp; Applications

• Complies with ISO 21809 (external) and NSF/ANSI 61 (internal) for oil/gas/water sectors.
• Case study: 56km seawater intake pipeline (Qatar) showed zero corrosion after 7-year service.

Conclusion

This coating system delivers superior lifecycle value, with ROI achieved within 3-5 years through reduced downtime and maintenance. It’s adaptability to extreme environments makes it the premier choice for critical infrastructure projects worldwide.
