Features:
A new deskstand is now available for use with rechargeable NiMH batteries. A charger input connector is fitted to the side of the housing and allows the batteries to be charged in position even while the units is being used. The M3102 option includes:
- a deskstand fitted with a modified wiring harness
- 4 x NiMH 2500mA batteries
- a dedicated NiMH charger
- various power supply input pins to allow the charger to be used world-wide
The 20mm LCD display has LED back light for easy viewing in all lighting conditions. All cable connections are via spring-locking terminals for ease of installation (no soldering required).
There is a Rin-LINK infra-red port designed into the display for PC access to all setup and calibration functions. The “FLASH” ROM allows for quick and easy updating of standard or custom software in the field.
Specifications:
The R300 series of indicators builds on over 15 years of design experience to create aseries of cost effective reliable products that are ideal for use in mobile applications suchas forklifts, platforms, inside truck cabs, crane scales and OEM applications. The compact housing and versatile power supply options make them suitable for basic weighing through to OEM applications. They are ideal for basic weight-control or level-control functions.
Available in ABS and stainless steel housings:
- R320 IP65 ABS housing
- R323 IP65 stainless steel housing.
Programmable function key configured for any one of the built-in functions (Unitswitching. Counting, Manual Hold, Peak Hold, Live Weight, Totalising)
Configurable printing combined with the clock calendar allow for traceable dockets to be printed.
Built in RS232 communications port is 15kV static protected.
Two Isolated set point outputs – high side driver up to 300mA, allowing direct connectionto PLCs and for external actuators to be driven directly
Wide DC operation (7-24V) to suit a variety of onboard OEM applications. Eliminates theneed for third party power supplies saving on system complexity and cost.
Long life rechargeable battery options ideal for mobile installations allowing for operator flexibility.
Opto-link magnetically coupled link on front fascia for easy access in sit for updates/setup of the indicator, saving the installer time and effort.
IP65 rated housings: Dust and water tight, increasing reliability and indicator life time.
Trade approved in Australia, Europe and USA. Products are export ready with approved component.

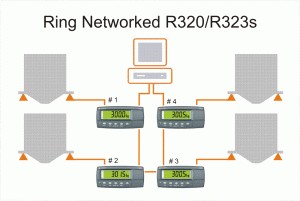

Ring networking
