Features :
- 600mm(12U)H x 600mmW
- Depth of 150mm; 300mm is optional.
- Knock-down cable-entry plate on Top & Bottom.
- Tempered Glass door.
- Side Ventilation Holes on the door.
- Lock on the door.
- 4U Mounting Plate is optional.
- Flush-mount frame is optional.
- Standard Colors (Grey RAL7035 & Off-White RAL9010)

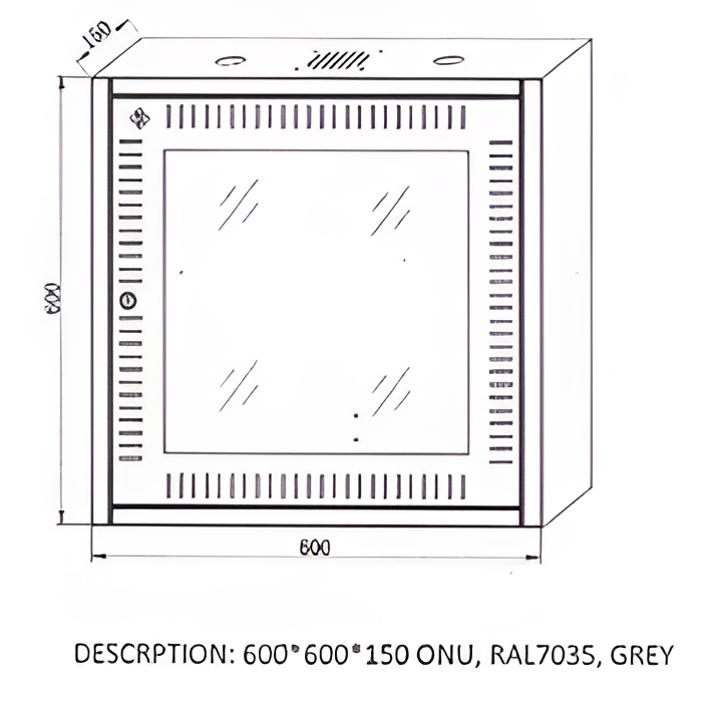

Dimensions :
Advantages :
- The cabinet is engineered and manufactured to meet the exact specifications of Etisalat FTTX.
- Its robust and durable design ensures ease of installation and maintenance.
- This ONU cabinet is offered in wall-mount and flush-mount options, with various colors and dimensions to meet specific requirements.
- Features include a welded frame, sturdy structure, and wall-mounting capability.
- Supports 19” standard installations with a ventilated door design.
- Provides cable entry options on the top cover, bottom, and back sides.
- The front door offers a turning angle of over 180 degrees.
- Includes adjustable mounting rails for versatile equipment installation.
- Optional features include unloaded panels, power sockets, and a 3U perforated panel for active equipment mounting.
Specifications :
|
Cabinet Standard
|
Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491
|
|
Material
|
SPCC cold rolled steel
|
|
Size
|
430*630*120 mm
|
|
Model Number
|
BLONU-FM4612
|
|
Product Name
|
12U Flush Mount Telephone Box
|
|
Description
|
12U 430x630x120 Flush Mount ONT Cabinet
|
|
Application
|
FTTH Optical Network Terminal Unit Telephone Box
|
|
Material
|
Frame 1.2 mm, others 1.0 mm
|
|
Material Thickness
|
SPCC cold rolled steel
|
|
Surface Finish
|
Powder Coated
|
|
Dimensions
|
12U*630*120 mm (H*W*D)
|
|
Installation Type
|
Wall Mount / Flush Mount
|
|
Degree of Protection
|
IP20
|
|
Color
|
Glossy White RAL9010 / Grey RAL7035
|
