Features :


• Halogen lamp/HBM sensor
• Readability: 0.001g; 0.002g; 0.005g; 0.01g
• Max. Capacity: 110g
• Operating Temp: 5-35




---

Advantages :


• Halogen lamp/HBM sensor
• Aluminum shell/Stainless steel chamber
• LCDWhite back light with black font
• Temperature/Time set
• The percentage of moisture content/dry residual
• Store historical set
• Option:Aluminum box/Printer/Grinder.

---

Specifications :


Model	MCA110-10	MCA110-5	MCA110-2	MCA110-1	MCA110-1A
Max. capacity	110g
Readability	0.01g	0.005g	0.002g	0.001g	0.001g
Operating Temp	5-35

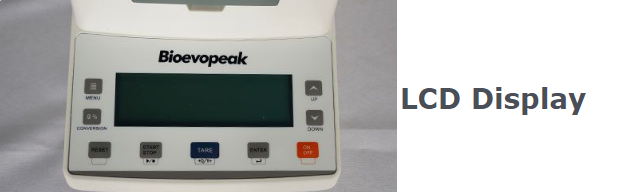

Display	LCD (White back light with black font)	LCD (White back light with black font)	LCD (White back light with black font)	LCD (White back light with black font)	LCD HD Back Display
Calibration	External Calibration

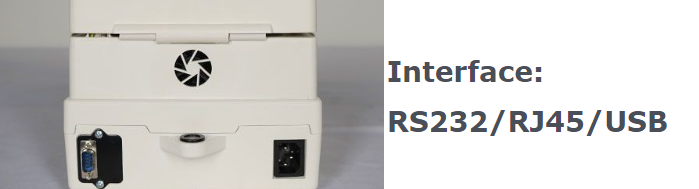

Interface	RS232/RJ45/USB…
Pan Size	Ø90mm
Packing Size	490x350x360mm
Gross Weight	7.5kg
Heating Source	Halogen Lamp-1	Halogen Lamp-2	Halogen Lamp-3	Halogen Lamp-4	Halogen Lamp-2
Temp.Sensor	PT100
Temp.Range	40-199
Temp.Step	1
Moisture Range	0.00%-100.00%
Moisture Readability	0.20%	0.10%	0.04%	0.01%	0.01%
Dry Range	100.00%-0.00%
Dry Readability	0.20%	0.10%	0.04%	0.01%	0.01%
Temp Setting	40-199 By 1 Step
Time Setting	1-99min By 10s
Number Of Storage	15
Heater	220V ±15% 50HZ/110V±15% 60HZ/400W
Balance	Input:220V 50HZ/110V 60HZ Output:9V
