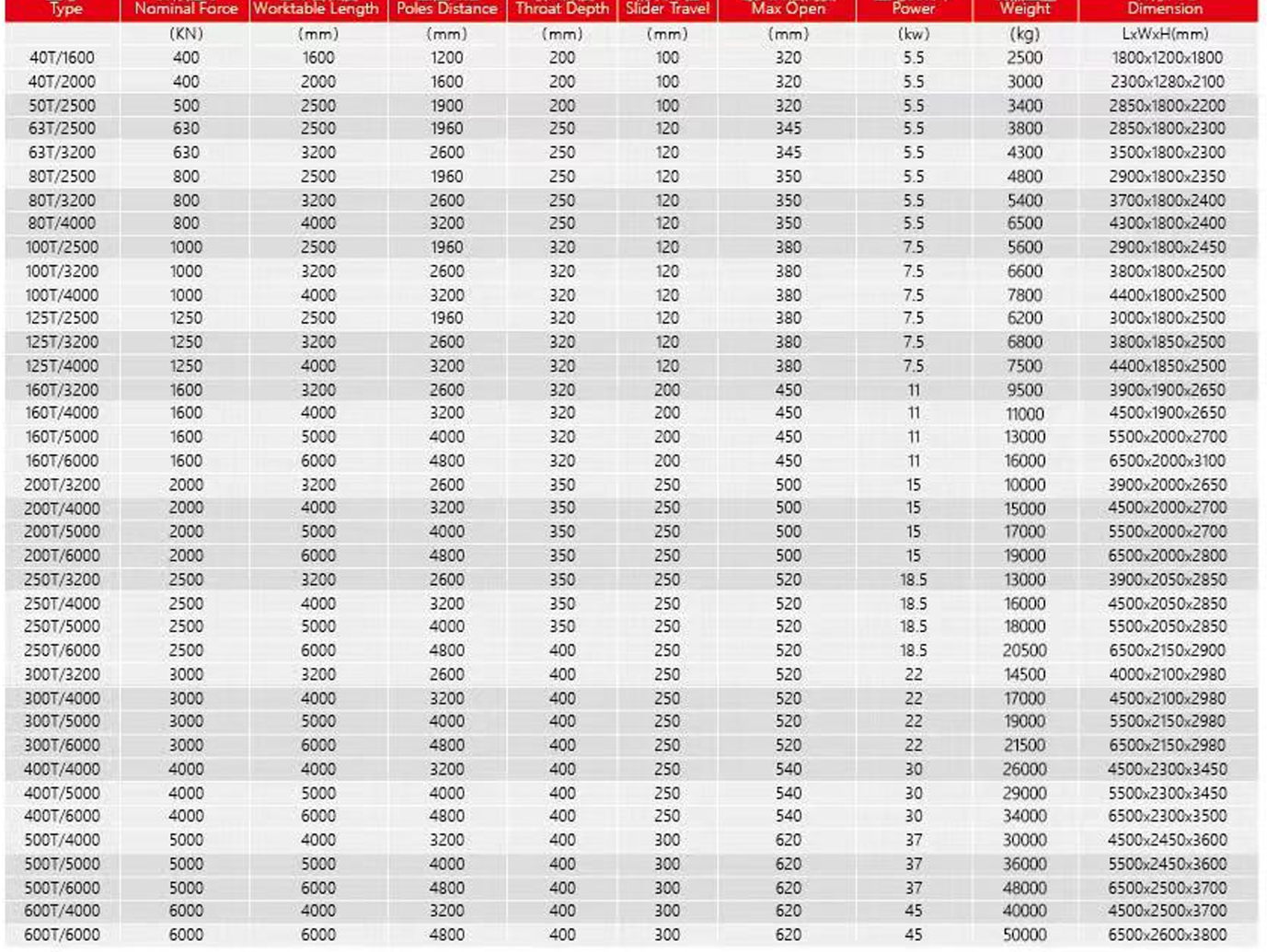

Specifications
- Brand: SEMOEM
- Machine Press Force: 1600kN
- Column Distance: 2600mm
- Slider Stroke: 200mm
- Motor Power: 7.5kW
- Work Table: 3200mm
- Throat Depet: 320mm
- Maximum Open: 380mm
- Machine Weight: 2500kg
- Machine Size: 1650mm x 1300mm x 2200mm
Features:
- CNC-controlled press brake featuring hydraulic crowning, offered in an essential yet comprehensive configuration. It’s equipped with four CNC-controlled axes (Y1-Y2, X, V), enhancing its versatility.
- Heavily built, reliable, precision CNC press brake at an economical price.
- Representing a blend of reliability, robust construction, and precision.
- Equipped with high-precision digital encoders on both sides, this machine continually monitors the upper beam’s movement and position (axes Y1-Y2), transmitting the data to the CNC controller that manages the hydraulic valves.
- This advanced system ensures an unparalleled accuracy level in the movement and final positioning of the upper beam, thanks to the continuous monitoring and feedback from the encoder’s measurement data. Utilizing this state-of-the-art technology, this machine can consistently achieve a repeatability of nearly 100% (+/- 0.01 mm).
Product Details:
