SFKK industrial robots primarily utilize a modular design to integrate ball screws and linear guideways, thus offering features such as high precision, rapid installation, selectability, high rigidity, small size, and space saving.
The high-precision ball screw is used as the transmission mechanism, and the optimized U-shaped track is used as the guide mechanism to ensure the requirements of precision and rigidity.
Features :
- Easy to design and install
- Small size and light weight
- High precision
- High rigidity
- Fully equipped
- Optimal design
- The optimal rigidity of the track structure was obtained through finite element analysis.
Structure Diagram :
.png)
Components Diagram :
Advantages :
.png)
- Modular integrated design combining ball screws and linear guides in a single unit.
- Simplified selection process, eliminating the need to separately select guide and drive components.
- Easy installation, reducing assembly complexity and setup time.
- Reduced verification requirements for component compatibility and alignment.
- Compact structure, minimizing overall system size.
- Space-saving design, requiring less installation space.
- High rigidity, providing improved structural stiffness and stability.
- Faster deployment, shortening machine design and integration time.
- Reduced engineering effort, lowering the workload for system designers and users.
- Improved efficiency, saving both time and space during implementation and operation.
Optional Accessories and Their Functions :
- Aluminum Protective Cover
- Prevents foreign objects and contaminants from entering the system.
- Protects internal components, enhancing service life, precision, and operational smoothness.
- Telescopic Sleeve
- Shields the actuator from dust, debris, and other external impurities.
- Helps maintain performance, accuracy, and reliability during operation.
- Motor Connection Flange
- Enables the attachment of various motor types to the SFKK industrial robot.
- Provides secure and reliable motor mounting.
- Limit Switch
- Acts as a safety device for slider positioning.
- Defines the origin (home) position of the slider.
- Prevents the slider from exceeding its allowable travel range, reducing the risk of damage.
.png)
Specifications :

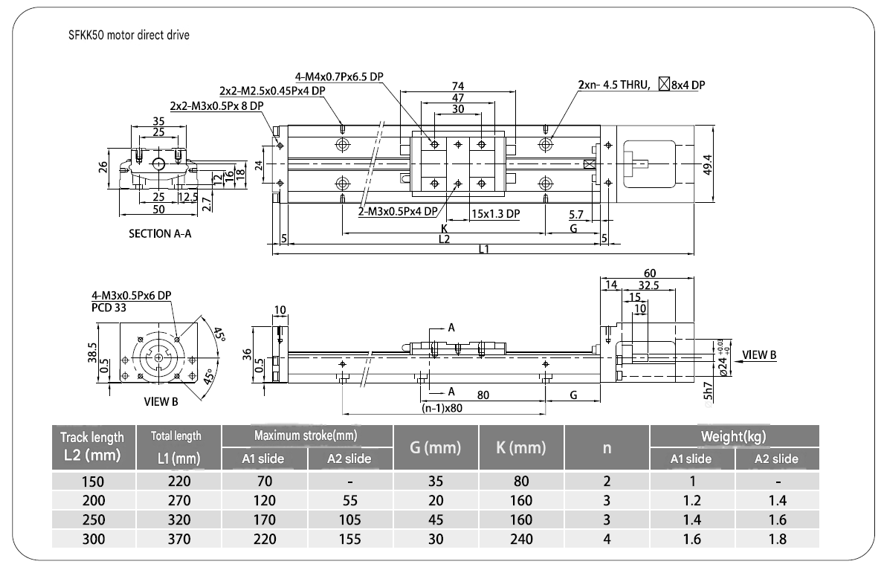

- SFKK50 (Does not include protective cover) :
.png)

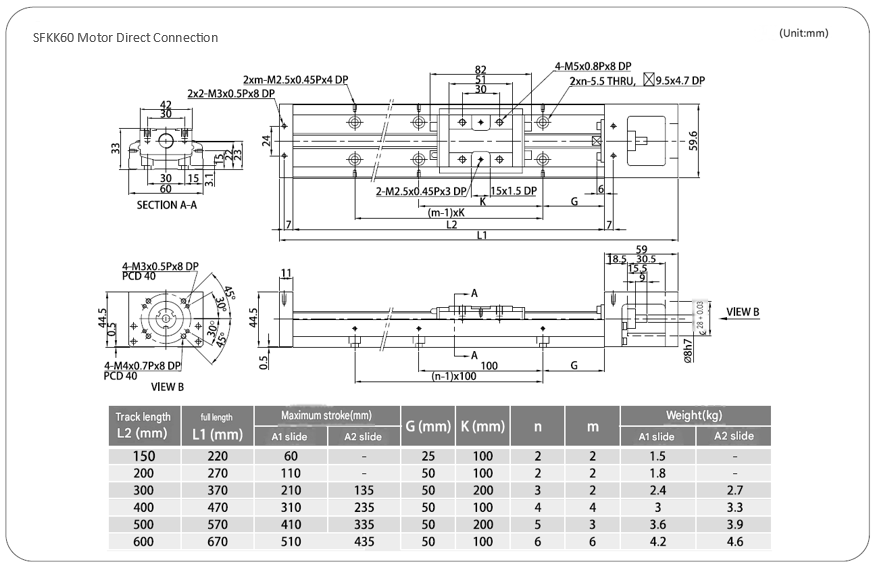

- SFKK60 (Does not include protective cover) :
.png)
