Encoder equipped for X-Y coordinate control
This product can be equipped with precision encoder, to achieve X-Y coordinate positioning function, for precision components locking anti-error, the product is composed of X axis, Y axis, control system, operating system. Its installation space is small, a variety of flexible installation methods.



Model :


• HB-080-(   )-(   )
• HB-150-(   )-(   )



---

Features :


• Operate at ease
• It improves the working environment, counteracts the reaction force of the screwdriver and the weight of the screwdriver, and reduces muscle injury caused by repetitive movements.
• Supports up to 80Nm tools
• Improves work efficiency
• This product can greatly improve the speed and quality of assembly, and improve work efficiency.

---

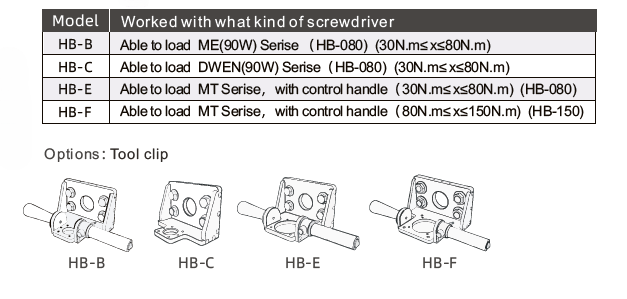

Accessories :






---

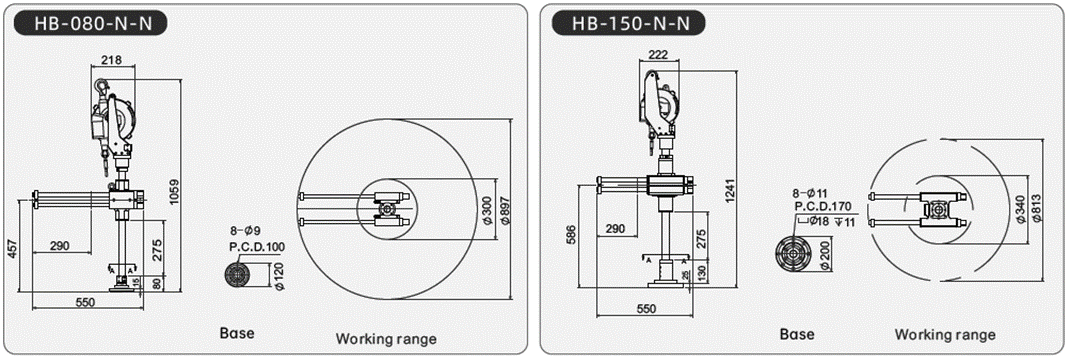

Dimensions :






---

Specifications :



Model	HB-080-(   )-(   )	HB-150-(   )-(   )
Max. torque (N.m)	80	150
Max. tool weight (kg)	8	13
Max. arm length (mm)	448.5	406.5



---
