Model :


• XH800 Series



---

Features :


• Maximum Stroke : 800 mm
• Maximum Speed : 3333 mm/s
• Gearbox Number : 120 mm
• Linear Guide : 28X26-2
• Gear Specification : 3 M



---

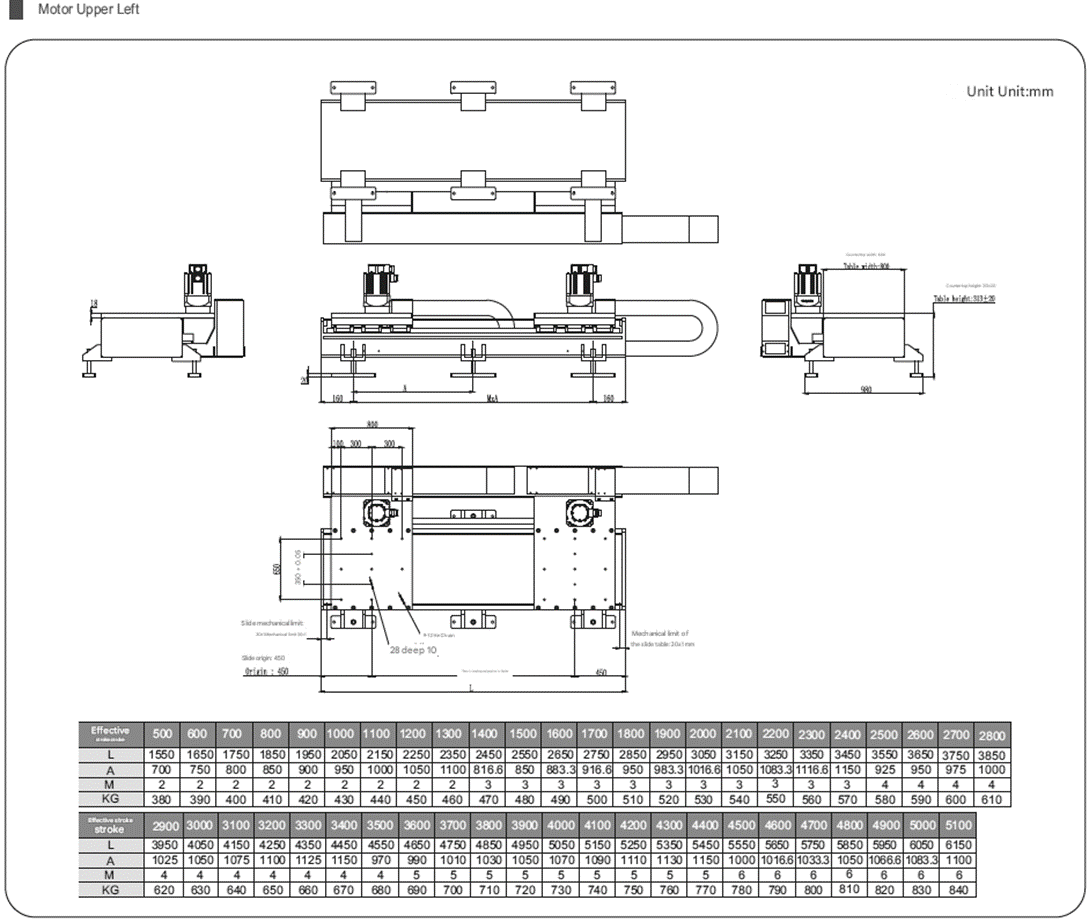

Dimension :






---

Sensor layout :






---

Specifications :



Capabilities	Repeatability (mm)		±0.1
	Gear Lead (mm)		200 mm
	Upper pulla load (kg)		1000
	Stroke Pitch (mm)		Unlimited length / Interval 100
Parts	Gearbox Number (mm)		120
	Gear Specification (M)		3M
	High Rigidity Linear Guide (mm)		28X26

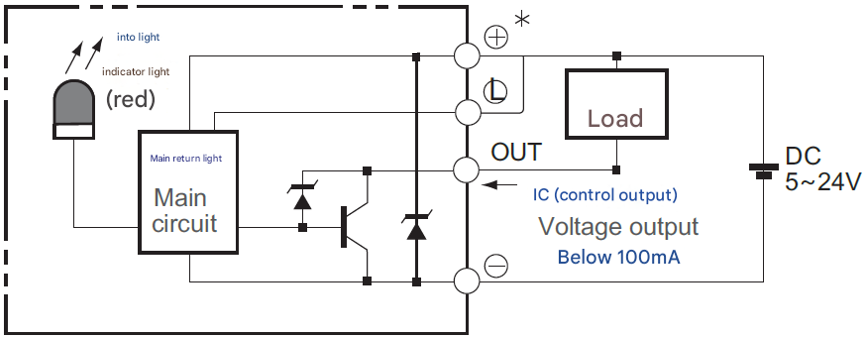

	Home Sensor	Outside	EE-SX674 (NPN)



---
