Model :


• STAM-011-120×150
• STAM-011-240×248
• STAM-011-400×480



---

Dimension :

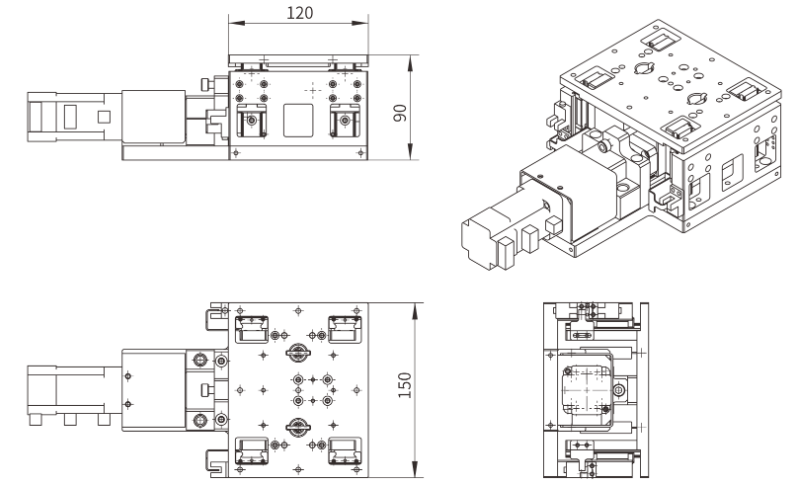

• STAM-011-120×150

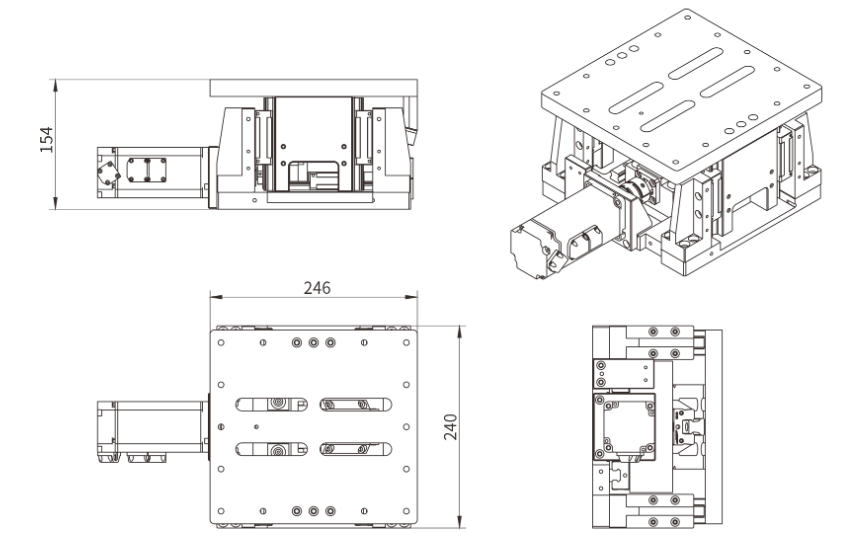

• STAM-011-240×248



---

Specifications :


Model parameters	STAM-011-120×150	STAM-011-240×248	STAM-011-400×480
Servo motor model	100W (including brake)	200W (including brake)	400W (including brake)
Workbench size (mm)	120 × 150	240 × 248	400 × 480
Load(Kg)	on demand	on demand	on demand
Stroke(mm)	Customized according to requirements (<20mm)	Customized according to requirements (<20mm)	Customized according to requirements (<20mm)
Screw lead (mm)	2	2	2
Maximum speed (mm/s)	<0.075m/s	<0.075m/s	<0.075m/s
maximum acceleration	<0.1G	<0.1G	<0.1G
Positioning accuracy (µm (after compensation))	<±8	<±5	<±5
Repeatability (µm)	<±5	<±3	<±3
Machine material	Aluminum black anodized	Aluminum black anodized	Aluminum black anodized
Installation method	Horizontal installation	Horizontal installation	Horizontal installation

---
