HIOKI M7103 Power Measurement Module

HIOKI M7103 Power Measurement Module
Realizing a Compact, High-precision Power Testing System


---

OVERVIEW

Introducing the M7103, a power measurement module that boasts power analyzer class accuracy. This product delivers exceptional scalability, high-speed data recording, and unparalleled stability in multi-channel power efficiency measurement. It is the optimal choice for embedded applications, offering valuable solutions for all your data recording needs.



Key Features

• Power analyzer class accuracy, DC/AC ±0.07%
• 1500 V DC accuracy guarantee
• Up to 12 channels in a 4U unit that fits in a 19-inch rack
• Up to 120 channels (10 sets of 12 channels)
• Synchronization Source Sharing function for more stable efficiency measurement

Model No. (Order Code)

M7103

Power Measurement Module

The M7103 cannot perform measurement by itself. Separately sold Data Logger LR8101 or LR8102, AC Power Module M1100, voltage cords, and current sensors are required. Can connect up to four M7103 modules per one data logger.


---

FEATURES

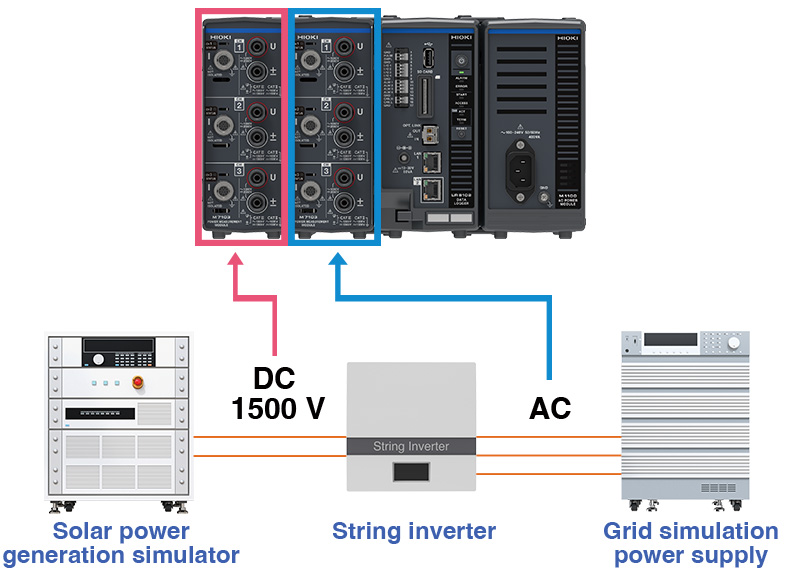

Compact PV Inverter Testing For PV inverter production lines

Realize high-accuracy measurement without differential probes, even for high voltages

Manufacturers are developing PV inverters that operate at higher voltages to reduce equipment costs and transmission losses. As a result, measurement of PV inverters requires instruments that can accommodate high voltages.
The M7103 supports 1500 V DC CAT II and 1000 V DC CAT III measurement, allowing high voltages to be input directly and measured safely.
In addition, quality is assured during PV inverter testing since accuracy is guaranteed up to 1500 V DC with direct input.

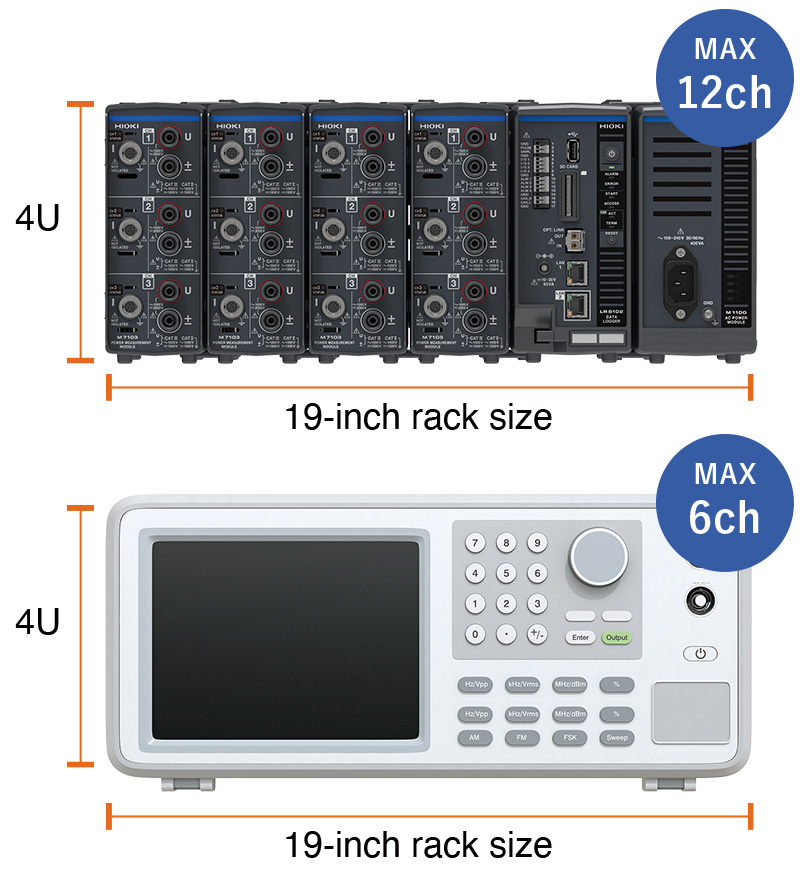

Expandable power meter ideal for PV inverter production lines

The M7103 delivers multi-point power measurement across up to 12 channels in a 4U unit that fits in a 19-inch rack, helping save space and lower costs on PV inverter production lines.
In addition, its expandable design means customers can add or replace modules themselves, providing flexibility when building PV inverter production lines.

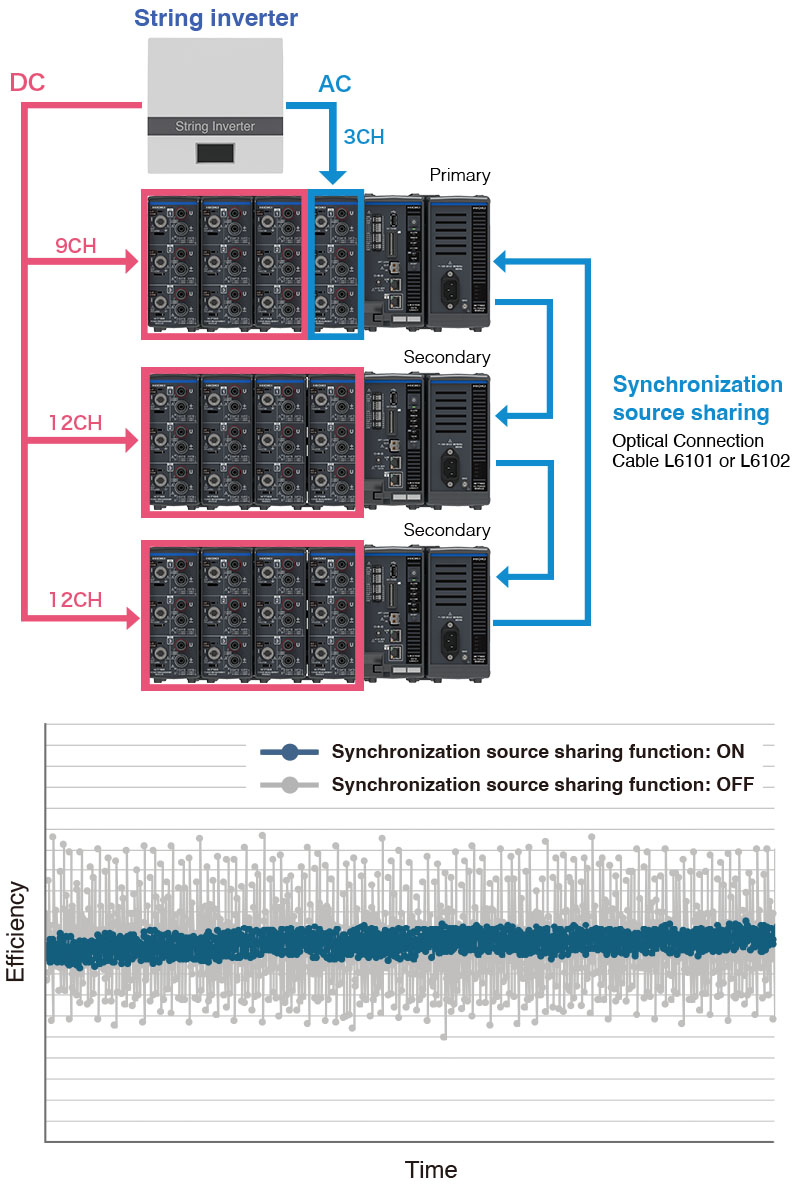

Efficiency measurement of multi-MPPT string inverters

Manufacturers are developing multi-string inverters to maximize the generating capacity of solar power systems.
Multi-string inverters are controlled using maximum power point tracking (MPPT) so that they create as much power as possible per string. On production lines, measurements must be made at numerous points to test whether each MPPT is functioning properly.
By using the LR8102's Synchronization Source Sharing function, the M7103 can simultaneously measure power across up to 120 channels. Furthermore, the Synchronization Source Sharing function makes possible stable efficiency measurement.



Unmatched Capability for Capturing Data from High-Voltage Battery Packs
Suitable for Battery Charge/Discharge Testing

Assuring safety when testing cell voltages of a 1500 V battery pack: Achievement unlocked.

Terminal-to-ground voltage: 1500 V DC (CAT II) Insulation
EN IEC 61010 Safety standard-compliant

Since the M7103 has a maximum rated terminal-to-ground voltage of 1500 V, it can accommodate testing of 800 V batteries with an ample margin of safety.
It can also be used to measure cell voltage and temperature of next-generation battery packs that exceed 800 V and power storage systems such as energy storage systems (ESSs) that exceed 1000 V.



Turbocharged data transfers at an interval as short as 5 ms mean you can output data for all cells to an HIL system in real time (when using only the LR8102)

The logger can continuously transfer data at high speed to an upstream system using UDP communication (*1).
Modules sample data at high speed at a rate of up to 5 ms and output it immediately.

Since the data logger continuously acquires live voltage data for measured cells at an interval as short as 5 ms, data can be used in real-time simulation by an HIL system.
In addition, this capability allows comprehensive analysis of charge/discharge characteristics by observing the responsiveness of total voltage as measured by the M7103 Power Measurement Module and individual cells’ voltage data.



*1:UPD communication functionality is exclusive to the Data Logger LR8102.


---

SPECIFICATIONS

General Specifications
Accuracy guaranteed: 1 year


Compatible models	Data Logger LR8101: Standard model Data Logger LR8102: Advanced model
Operating temperature and humidity range	0°C to 40°C (32°F to 104°F), 80% RH or less (non-condensing)
Measurement lines	1-phase/2-wire (1P2W) 1-phase/3-wire (1P3W) 3-phase/3-wire (3P3W2M, 3V3A, 3P3W3M) 3-phase/4-wire (3P4W)
Number of power channels	3
Input terminal	Voltage: plug-in terminals (safety terminals) Current: dedicated connectors (ME15W)
Input type	Voltage: isolated input, resistive potential divider Current: isolated input via current sensors (voltage output)
Voltage ranges	6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V
Current ranges	0.04 A range to 20 kA range (depends on the current sensor in use)
Crest factor	3 (relative to voltage and current range ratings), but 1.35 for 1500 V range
Input resistance, input capacitance	Voltage inputs: 3 MΩ±30 kΩ, 1.5 pF typical Current sensor inputs: 1 MΩ±50 kΩ
Maximum input voltage	Voltage inputs: 1000 V AC, 2000 V DC Current sensor inputs: 8 V, ±12 V peak
Maximum rated terminal-to-ground voltage	1000 V AC/DC, measurement category III, anticipated transient overvoltage 8000 V 1000 V AC / 1500 V DC, measurement category II, anticipated transient overvoltage 8000 V
Measurement method	Simultaneous voltage and current digital sampling with zero-cross synchronized calculations
Sampling	500 kHz, 16 bits
Frequency band	DC, 0.1 Hz to 100 kHz
Effective measurement range	1% of range to 110% of range
LPF (Low pass filter)	Select from OFF/500 Hz/5 kHz
Measurement parameters	Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power actor (λ), phase angle (φ), voltage frequency (fU), current frequency (fI), voltage ripple ratio (Urf), current ripple ratio (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)
Other measurements	Frequency, integration, harmonic (IEC measurement mode, wide-band measurement mode)
Functions	AUTO range, calculation, synchronization source sharing
Dimensions and weight	Approx. 65W × 170H × 255D mm (2.6W × 6.7H × 10.0D in.) (excluding protruding parts) Approx. 1.5 kg (3.3 lbs)
Included accessory	Instruction Manual ×1



---

OPTIONS

Voltage measurement (8)

VOLTAGE CORD L1000
Red/ Yellow/ Blue/ Gray each 1, Black 4, 3m (9.84ft) length, Alligator clip ×8

PATCH CORD L1021-01
Banana branch-banana, Red: 1, 0.5 m (1.64 ft) length, for branching from the L9438s or L1000s, CAT IV 600 V, CAT III 1000 V

PATCH CORD L1021-02
Banana branch-banana, Black: 1, 0.5 m (1.64 ft) length, for branching from the L9438s or L1000s, CAT IV 600 V, CAT III 1000 V

VOLTAGE CORD L1025
1500 V DC CAT II, 1 A, 1000 V CAT III , 1 A, banana - banana (red, black each1), alligator clip, approx. 3 m (9.84 ft) length

GRABBER CLIP L9243
Attaches to the tip of the banana plug cable, Red/Black: 1 each, 185 mm (7.28 in.) length, CAT II 1000 V

VOLTAGE CORD L9438-50
1000 V specifications, Black/ Red, 3 m (9.84 ft) length, Alligator clip ×2

WIRING ADAPTER PW9000
When three-phase 3-wire connection, the voltage cord to be connected can be reduced from 6 to 3

WIRING ADAPTER PW9001
When three-phase 4-wire connection, the voltage cord to be connected can be reduced from 6 to 4


Power supply (1)

AC POWER MODULE M1100
• Supplies power up to four Power Measurement Modules M7103
• 100 V to 240 V AC, 50 Hz/60 Hz
• Approx. 80W × 166H × 238D mm (3.1W × 6.5H × 9.4D in.) (excluding protruding parts), approx. 2.0 kg (4.4 lbs)


Current sensors: High accuracy pass-through (9)

AC/DC CURRENT SENSOR CT6862-05
• DC to 1MHz, ±0.05% accuracy
• Rated 50A AC/DC

AC/DC CURRENT SENSOR CT6863-05
• DC to 500kHz, ±0.05% accuracy
• Rated 200A AC/DC

AC/DC CURRENT SENSOR CT6872
• DC to 10 MHz
• Rated 50 A AC/DC

AC/DC CURRENT SENSOR CT6873
• DC to 10 MHz
• Rated 200 A AC/DC

AC/DC CURRENT SENSOR CT6875A
• Rated 500 A AC/DC

AC/DC CURRENT SENSOR CT6876A
• DC to 1.5 MHz
• Rated 1000 A AC/DC

AC/DC CURRENT SENSOR CT6877A
• DC to 1 MHz
• Rated 2000 A AC/DC

AC/DC CURRENT SENSOR CT6904A, CT6904A-1
• DC to 4 MHz (CT6904A), DC to 2 MHz (CT6904A-1)
• Rated 500 A AC/DC

AC/DC CURRENT SENSOR CT6904A-2, CT6904A-3
• DC to 4 MHz (Model CT6904A-2), DC to 2 MHz (Model CT6904A-3)
• Rated 800 A AC/DC


Current sensors: High accuracy clamp (9)

AC/DC CURRENT PROBE CT6830
• Band: DC to 100 kHz
• Rated measurement current: 2 A AC/DC
• Measurable conductor: #5 mm
• For power analyzers and 3 ch current unit of Memory HiCORDER

AC/DC CURRENT PROBE CT6831
• Band: DC to 100 kHz
• Rated measurement current: 20 A AC/DC
• Measurable conductor: #5 mm
• For power analyzers and 3 ch current unit of Memory HiCORDER

AC/DC CURRENT PROBE CT6833, CT6833-01
• DC to 50 kHz
• Rated 200 A AC/DC
• For vehicle power testing, compliant with WLTP & SAE J1634 standards

AC/DC CURRENT PROBE CT6834, CT6834-01
• DC to 50 kHz
• Rated 500 A AC/DC
• For vehicle power testing, compliant with WLTP & SAE J1634 standards

AC/DC CURRENT PROBE CT6841A
• DC to 2 MHz
• Rated 20 A AC/DC
• Automatic phase correction function

AC/DC CURRENT PROBE CT6843A
• DC to 700 kHz
• Rated 200 A AC/DC
• Automatic phase correction function

AC/DC CURRENT PROBE CT6844A
• DC to 500 kHz
• Rated 500 A AC/DC
• Automatic phase correction function

AC/DC CURRENT PROBE CT6845A
• DC to 200 kHz
• Rated 500 A AC/DC
• Automatic Phase Correction function

AC/DC CURRENT PROBE CT6846A
• DC to 100 kHz
• Rated 1000 A AC/DC
• Automatic phase correction function


Current sensors: General use clamp (1)

CLAMP ON SENSOR 9272-05
• 1 Hz to 100 kHz, ±0.3% accuracy
• Rated 20 A/200 A AC


Standard current sensors (4)

AC FLEXIBLE CURRENT SENSOR CT7040 series
• 10 Hz to 50 kHz, ±1.5% accuracy
• 600A or 6000A AC rated

AC/DC CURRENT SENSOR CT7642
• DC to 10kHz, ±1.5% accuracy
• Rated 2000 A AC/DC

AC/DC AUTO-ZERO CURRENT SENSOR CT7742
• DC to 5 kHz, ±1.5% accuracy
• Rated 2000A AC/DC

CONVERSION CABLE CT9920
Required to connect the PW3390 or other instrument’s ME15W terminal to a current sensor with a PL14 output connector.


High accuracy sensor: Direct wire type (1)

AC/DC CURRENT BOX PW9100A
• Max. 50 A AC direct input to Hioki Power Analyzers
• Wide DC to 3.5 MHz, ±0.02% accuracy
• 3 ch/4ch


Measure large currents of up to 8000 A (2)

SENSOR UNIT CT9557
• 4 channels, ±0.06% DC accuracy
• Waveform, total waveform, and total RMS output

CONNECTION CABLE CT9904
ME15W (12 pin) terminal to ME15W (12 pin) terminal, 1 m (3.28 ft) length (for connecting CT9557 total output to PW6001 or PW3390 only)


Measure high voltages of up to 5000 V (1)

AC/DC HIGH VOLTAGE DIVIDER VT1005
• Safely measure high voltages up to 5000 V
• Detect efficiency improvement effects on the order of 0.1%
