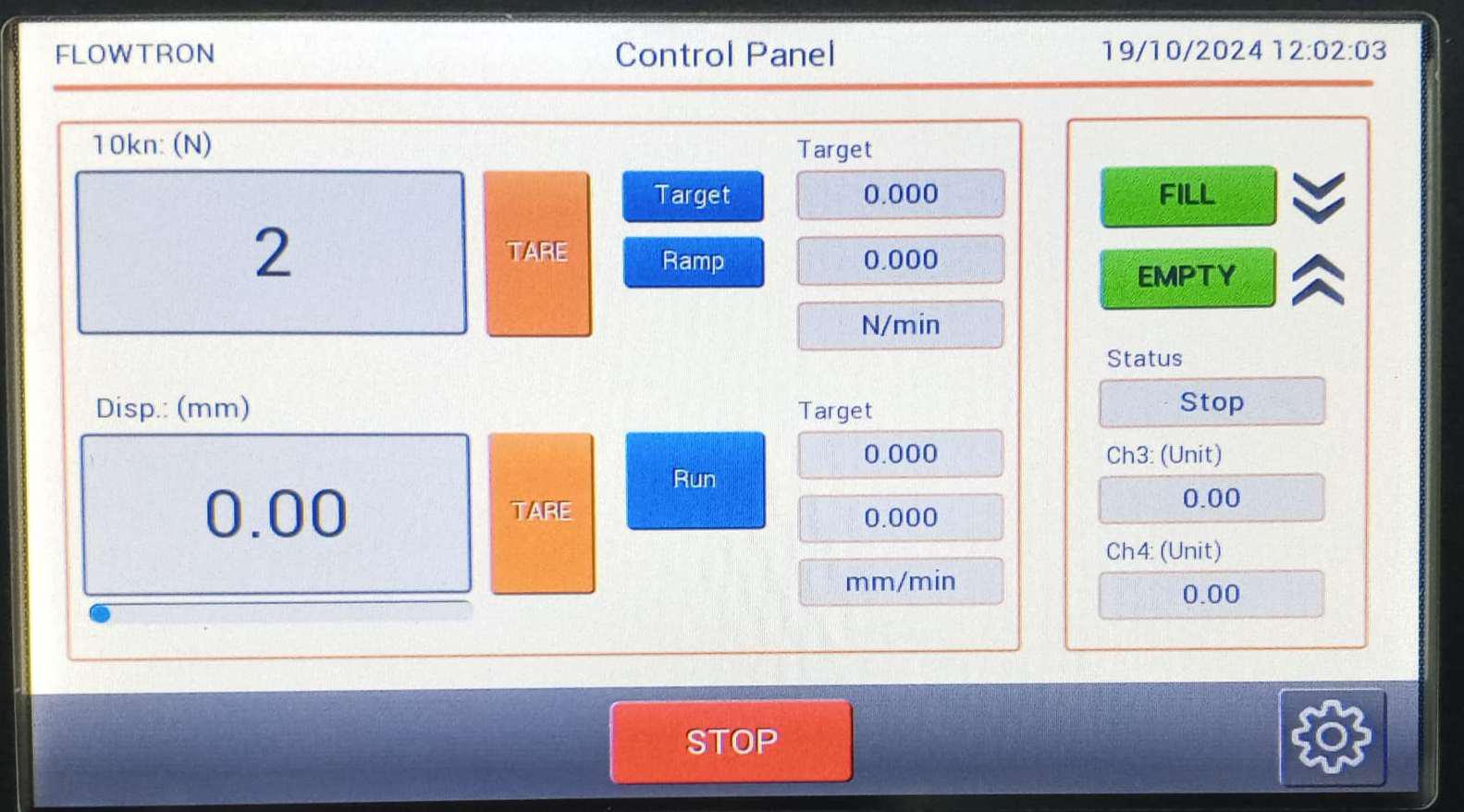

The Flowtron Automatic Pressure Controllers are designed to control and measure pressure (and volume where applicable) inside a triaxial cell. The system is used in a multitude of geotechnical test such as triaxial UU, CU, Constant Rate of Strain, Permeability, modified Shearboxes and can be configured in many other test where pressure and volume regulation is required. The system provides a 7” Colour Touch Screen Interface with built-in features to calibrate and setup the device as well as monitoring measured and control parameter on board. Built-in over range limits protects the device from damage and misuse.
Technical Specification
| Model Number | FlowTron 2Mpa |
| Pressure Capacity | 2Mpa |
| Volume Capacity | 200ml |
| PC Communication | Ethernet |
| Power | 240 VAC, 50Hz |
| Test Standard | ASTM 2580, D4767, DD7181, AASHTO T296, T297, BS1377-6, BS1377-7, BS1377-8, ISO/TS17892-9, AS1289.6.4.1, AS1289.6.4.2 |
