Discover The Power Of PolyWorks On Aberlink CMMs
Unleash the full potential of your Aberlink CMM with PolyWorks! Industry-leading inspection software that delivers precision, performance, and productivity without the premium price tag. From advanced GD&T tools to offline simulation and automated path planning, PolyWorks transforms your inspection process. Now with full support for Kreon Zephyr laser scanning alongside traditional touch and contact probing, it's a future-proof solution for every measurement challenge.
PolyWorks + Aberlink: Big Capability.
Small Cost.
High-Productivity CNC CMM Solution
PolyWorks Inspector has reinvented the way inspection projects are set up and executed on CNC CMMs, within a flexible, user-friendly, and efficient CNC CMM operational paradigm.

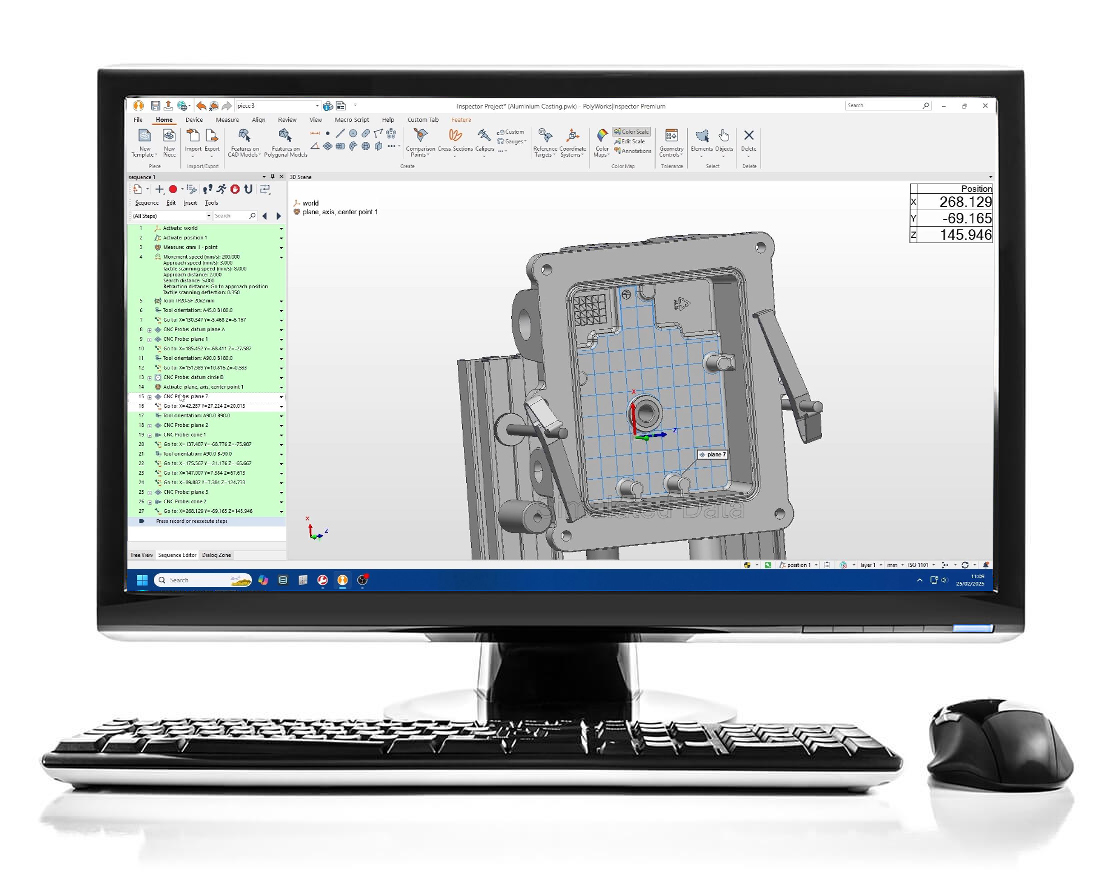

Accelerate the sequencing process while staying in control
Select objects to be measured and let the sequence editor automatically find the proper tool orientations, the optimal measurement order, and collision-free measurement paths.
Intelligent sequence editor provides immediate feedback when illogical or incorrect operations are detected, and lets you repair detected mistakes in a single click.
Avoid potential collisions automatically
Powerful collision analysis and avoidance technologies that detect potential tool collisions in real time* and automatically modify the toolpaths to prevent them. Offline simulation also available for risk-free program validation.

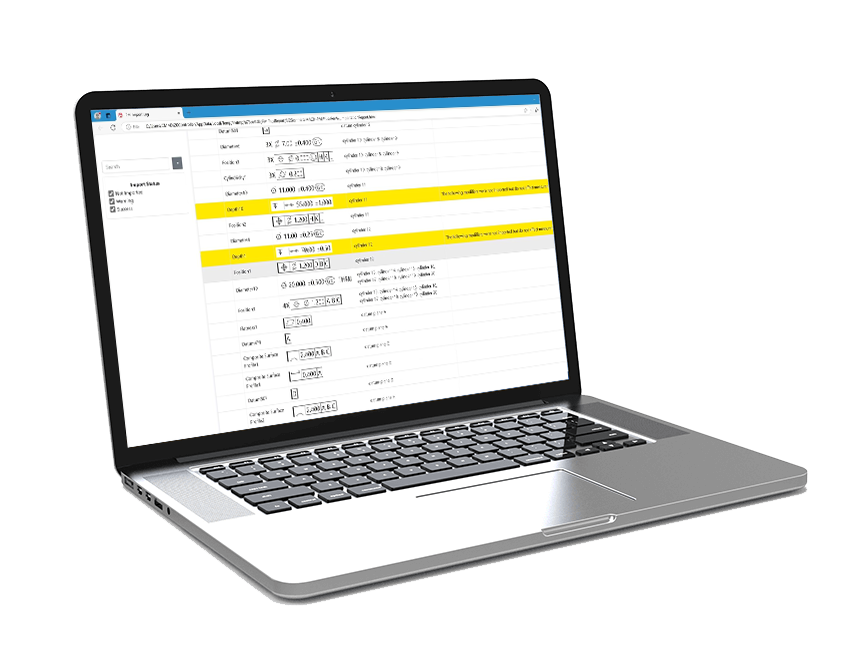

Review inspection results efficiently
Organise projects containing hundreds of dimensional and GD&T controls into small and logical groups of controls, with individual controls tied to specific alignments and coordinate systems.
First Article Inspection Reports
Quickly publish an AS9102 and PPAP-compliant First Article Inspection Report by measuring a piece from the first production run and transferrring the results automatically to Excel using PolyWorks | ReportLoop™.
Statistical Process Control (SPC)
Assess the repeatability and predictability of your manufacturing processes with multipiece statistics automatically calculated for object dimensions and surface deviations.
Measurement System Analysis
Design and carry out repeatability and Gauge R&R studies and publish results in elegant, content-rich Excel templates using PolyWorks | ReportLoop™.
Automate Quality Control Tasks
Multipiece data management
Measure multiple pieces using different 3D measurement devices, and store them in a single project folder or an online data management solution using an optimal format that minimizes disk space usage.
Play Inspection Tool
Use the powerful Play Inspection and Sequence Editor tools to automate measurement workflows by ordering and triggering operations.
Macro Scripting
Add macro scripts to your measurement workflows to apply proprietary techniques, provide special feedback, or interconnect to other systems.
Measure All Required Dimensions
Universal Data Handling
Extract measured dimensions from point clouds, polygonal models, or probed points, and nominal dimensions from a CAD model or a measurement part. Seamless import of a wide range of native CAD formats. Full support for PMI (Product anufacturing Information) with autoatic feature creation.
Smart GD&T
Benefit from a smart PTB-certified GD&T engine based on the latest ASME and ISO standards, with advaced DRF, material condition, datum modifier, and tolerance zone capabilities.
Deviation Analysis Using Colour Maps
Obtain surface, boundary, cross-sectional, or thickness measured-to-nominal deviations, and analyse them through a colour map display.
Profile and Flush & Gap Gauging
Evaluate advanced dimensions on fillets, design feature lines, and sheet metal part assemblies, such as radius, angle, bending, sharpness, flush, and gap.

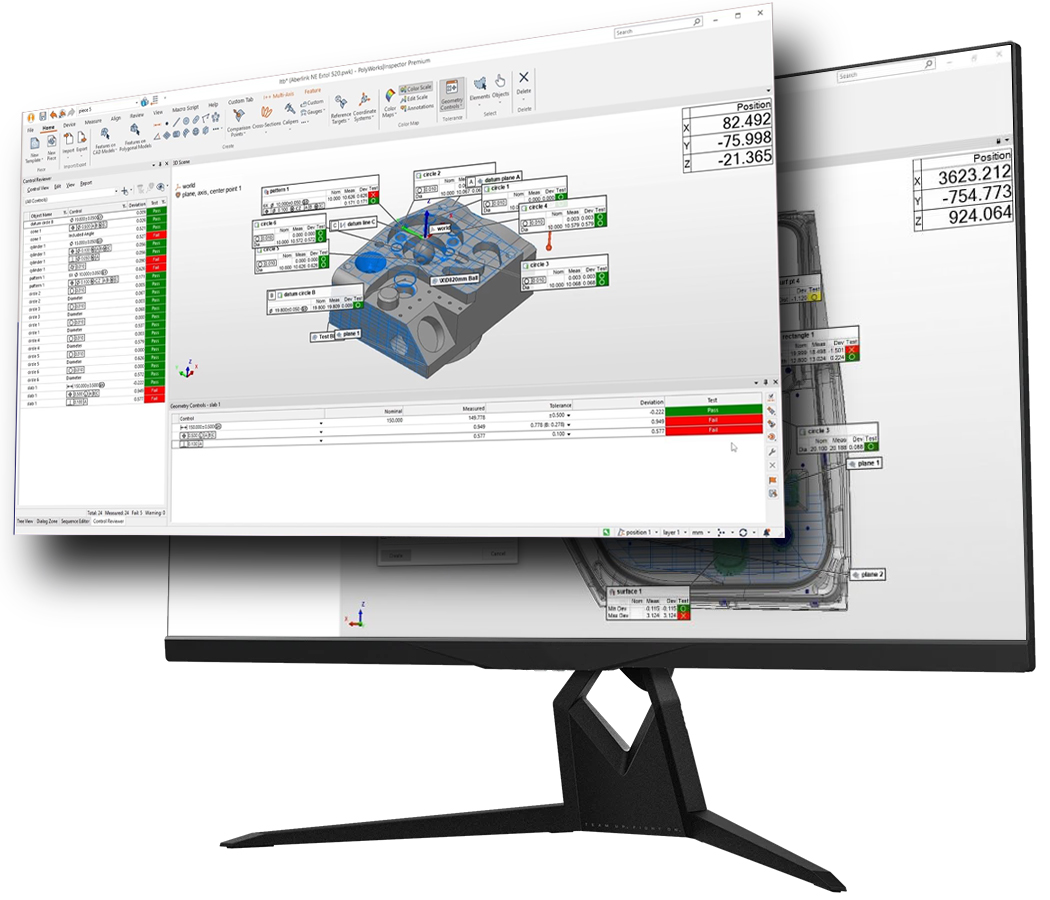

Feature-Based Dimensioning
Measure a feature’s diameter, position, or orientation, or distances and angles between two features, in 2D or in 3D, and configure the dimensions’ display intuitively.
Airfoil Gauging
Extract advanced features on fan, compressor, and turbine blades to control and analyse dimensions, such as edge radius, thickness, length, width, angle, and area.
