- Air Driven Two-component Injection Machine
- For Processing Acrylic Gel, Polyurethane Resin and Other 1:1 Ratio Material
- For Processing Fast Curing Injection Material
- Consistent Fixed 1:1 Mixing Ratio
- Constant Flow of Material
- Precise Homogeneous Mixing

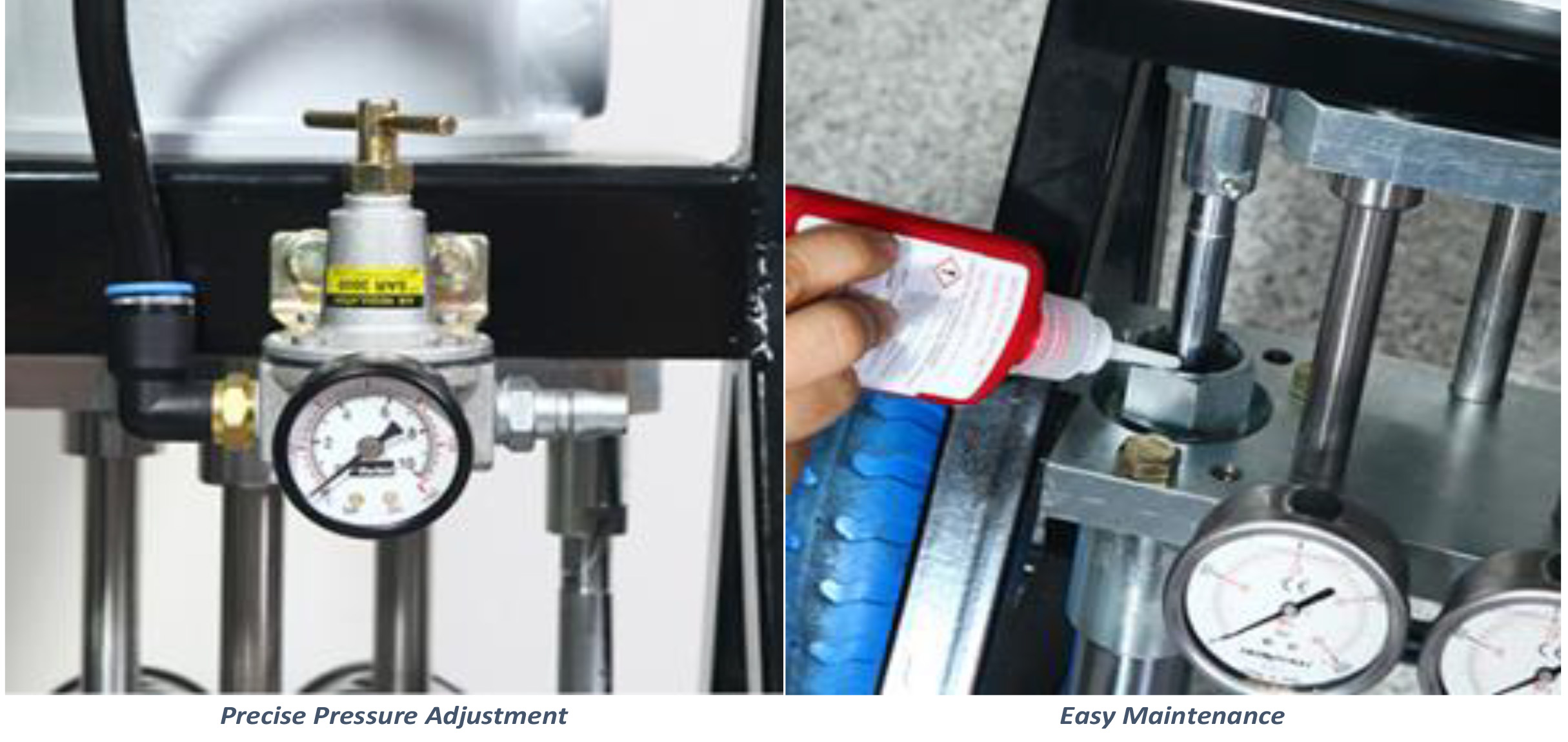

- Exact Injection Pressure Adjustment
- Easy Operation, Cleaning and Maintenance
- Compact and Portable Design
- Modifiable Material Inlet (suction hose/feed funnel)
- Optional Independent Flush Pump
- Optional Injection Gun with Flushing Assembly
Specifications
| Pressure Ratio | 48:1 |
| Inlet Operating Air Pressure | 3-7 bar |
| Max. Discharge Pressure | 100 bar |
| Max. Delivery | 5ℓ/min |
| Mixing Ratio | 1:1 |
| Stroke | 100mm |
| Cycle | 60/min |
| Dimension (W/L/H) | 76/50/91 cm |
| Weight | 45kg |
All information contain herein was obtained from sources which we believe to be accurate and reliable. The information is subject to change without prior notice. However, it is provided without any warranty, expressed or implied, regarding its correctness. The information is provided for informational purposes and solely for customer’s consideration, investigation and verification. The statements in this information sheet are based on the best of our knowledge and experience.
For this and other reasons, NCL Chemical & Equipment Sdn Bhd do not assume responsibility and expressly disclaim liability for loss, damage or expense arising out of or in any way connected with the handling, storage, use or disposal of the material. However, we have no control over the method of application and the amount of care taken when using this product and therefore the liability of NCL Chemical & Equipment Sdn Bhd is limited to the quality of the delivered material.
