Penang,Butterworth KROHNE OPTIBAR PM 5060 Pressure transmitter for process pressure and level applications Level Transmitters - Level Measurement - KROHNE from TECH IMPRO AUTOMATION SOLUTION SDN BHD

Overview

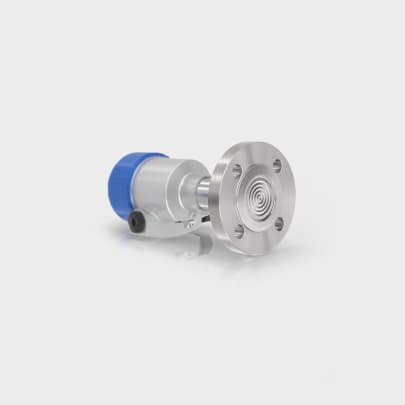

The OPTIBAR PM 5060 is a pressure transmitter for process pressure and level measurement in hygienic and non-hygienic applications with gases, liquids and steam. It can be used in open tanks and – as dual version for electronic differential pressure measurement – also in closed vessels. The pressure device features a piezoresistive or a strain gauge metallic diaphragm. Depending on the measuring cell, the pressure transmitter can operate over a wide process pressure range from 100 mbar / 1.45 psi up to 1000 bar / 14500 psi.

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Various housing materials available: plastic, aluminium, stainless steel (precision casting or electro-polished)
Extremely quick step response times <85 ms
Available with flush mounted, hygienic process connections for the food industry
Quick setup for all applications
Extensive diagnostic and parameterization functions on the display and adjustment module or the user-friendly and free DTMs
Wireless device commissioning, verification and monitoring with the OPTICHECK Pressure Mobile app
Ex ia, Ex d, Ex t approvals
SIL 2/3 certified by TÜV Rheinland

Specifications

Depending on selected device configuration

General information

Product type	Pressure transmitter
Product family name	OPTIBAR
Product positioning	For all hygienic and non-hygienic process pressure and level applications
Measurement principle	Hydrostatic
Measured media	Liquids, Gases, Steam
Measuring point	Open tank

Operating conditions

Process pressure	max. 1000 bar/ 14500 psi
Process temperature	-40…+150°C/ -40…+302°F With optional diaphragm seals up to +400°C / +752°F

Materials

Diaphragm	Austenitic stainless steel (1.4404/316L), Nickel-chrome-molybdenum-tungsten alloy (2.4819/Alloy C276), Cobalt-Chromium-Nickel-Molybdenum alloy (2.4711 / Alloy 1058)
Fill fluid	Silicone oil, Halocarbon oil, Dry measuring cell (without fill fluid), Food grade oils (FDA listed), Medical grade white oil (FDA conform)
Measuring cell seal	Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM), Perfluoroelastomer rubber (FFKM), Without (fully welded)

Process connections

Flange connections	EN (1092-1): DN32…100 ASME (B 16.5): 1…4''
Thread connections	Male: G½ (EN 837-1) G½, G1, G1½ (DIN 3852) G½ front flush (DIN 3852) G1 front flush (cone 40°, cone 33.4°) Hygienic G1 for hygienic adapters 1 NPT front flush ¼ NPT, ½ NPT M20 x 1.5 (EN 837-1) Female: ½ NPT, ¼ NPT
Hygienic adapters	Clamp (DIN 32676): DN40, DN50 Clamp (ISO 2852): 40, 51 Tri-Clamp: 1½'', 2'' Collar ferrule (SMS 1147): 38 mm, 51 mm Collar ferrule (DIN 11851): DN25, DN40, DN50 Collar ferrule (DIN 11864-1A): DN40, DN50 Flange with collar (DIN 11864-2A): DN40, DN50 Aseptic clamp union (DIN 11864-3A): DN40, DN50 VARIVENT®: N, F Hygienic fitting with compression nut: F40 NEUMO BioControl®: DN50, DN65, DN80

Approvals/Standards

Certificates/Approvals Others	Pressure Equipment Directive (PED)
Certificates/Approvals Ex	ATEX, IECEx, NEPSI
Certificates/Approvals Hygienic	FDA, 3A, EHEDG, EC 1935/2004
Certificates/Approvals Marine	CCS, DNV, GL, NK
Certificates/Approvals Safety	SIL 2/3

Communication

Analogue outputs	4…20 mA
Digital outputs	FOUNDATION™ fieldbus, HART®, Profibus-PA
