High accuracy, with level measurement sensitivity of 1mm and built-in temperature compensation. Suitable for a variety of flumes and weirs, such as Parshall flume (ISO), V-Notch weir, Rectangular weir (with or without end contractions) and custom formula type weir Displays flow rate in l/s, m3/h or m3/min Excellent anti-interference capability Clear display with Graphical LCD (with backlit) Sensor cable length up to 1000 m The sensor with leak-proof structure and IP68 compliant. Chemical resistant sensor materials for maximum application flexibility 4-20mA output and RS485 serial communication (MODBUS RTU) output 6 relays for alarms Three buttons panel or remote control for easy configuration and operation˄ opt.˅
Application
Water Treatment
Sewage Treatment
Industries Wastewater Treatment
Irrigation System
.png)
.png)
Introduction

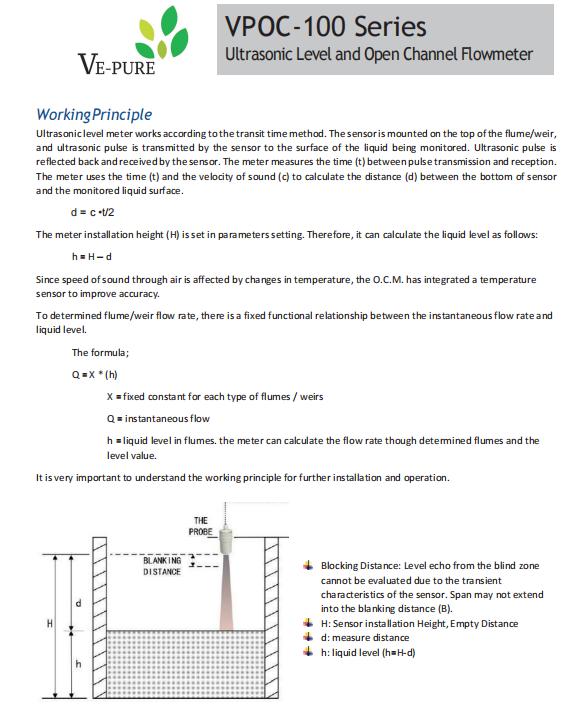

The VPOC-100 Series Ultrasonic level sensor is a remote type of ultrasonic level meter which is ultrasonic sensor able
to extend up to 1000 meters away. It easy to maintain due to self-cleaning effect by the membrane pulsing.
The sensor has wide option of material such as ABS, PTFE or PVC. With a patented smart echo processing technology,
it can effectively and reliably deal with echo.
Ultrasonic level sensor is widely used to measure level and flow for different kinds of liquid in various industrial such
as water, waste water and tank application.
