VE-PURE Electromagnetic Flow Meter

High accuracy: ± 0.5% of reading and ± 0.1% optional, velocity > 0.2 m/s.

Medium temperature between 20 ~ 200 Degree C

Dual frequency excitation and stable zero point.

Forward and Reverse direction flows.

Integrated diagnostic function and empty pipedetection.

Self-diagnosis alarm output.

Build in reference electrodes, not require ground ring.

Protection grade, IP68 for remote converter.

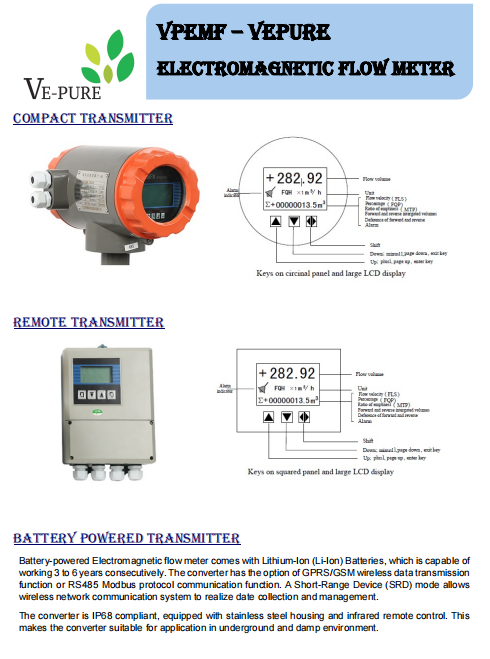

Battery-powered converter, Build in GPRS/GSM wireless module.

Sewage Water

Chemical

Food and Beverage

Water supply system

NRW monitoring system

Industry waste water

Electromagnetic flow meter works based on

Faraday's law, uses the electromagnetic induction

principle to measure the flow of conductive fluid

according to the electromotive force induced by the

conductive fluid through the applied magnetic field.

According to customers’ requirements, we provide

Sanitary flow meter , Battery-Powered flow meter ,

Threaded flow meter , Wafer flow meter and

Insertion flow meter.
