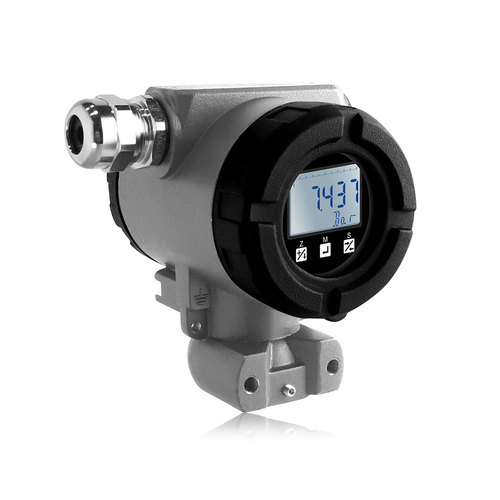

High-performance Integrated Indicator Transmitter with Anti-interference Design
Input：Temperature
Output：4 ... 20 mA
Display range：-9999 ... 99999
Accuracy：＜0.2%
●Additional option：(ILAC/TAF)Test report-Standard calibration laboratory (TAF accreditation：3032, complying with ISO/IEC 17025)
TAF has mutual recognition arrangement with ILAC MRA

Description
High-performance Integrated Indicator Transmitter with Anti-interference Design

．2-wire loop design
．Anti-interference design
．Protection rating : IP67
．Suitable for industrial environments
．5-digit backlight display
．Button layout setting

The SD06-T adopt the highest accuracy transmitter. High reliability, long-term stability, high quality, compact size easy installation , suitable for general industrial environments.

Specification
Input type：Temperature
Display Range：-9999 ... 99999
Display unit：°C / Re / K / F
Output：4 ... 20 mA
Signal connection：2 Wire
Temperature compensation：＜0.5% at -20 ... 70°C
Linear accuracy：<0.2%
Sampling time：20 ... 30 times / sec
Response time：<2 sec
Temperature influence：±0.05%URL / 10°C
Insulation resistance：>200 MΩ
Medium：Water, Gas, Oil, etc. Compatible with Stainless Steel
Operating Temp.：-20°C ... 70°C
Storage Temp.：-40°C ... 85°C
Power supply：DC 24 V±10%
Current consumption：＜23 mA
Electrical connection：Terminal connection
IP rating：IP67
Electrical protection：■ Polarity reversal protection ■ Over-voltage ■ Short-circuit
Certification：CE
Material：Rugged aluminum
Weight：Metal：618 g(without wire)

Application
Industrial process control / Laboratory systems / Compressor / Petrochemical industry / Chemical industry
