Measurement accuracy 1 %
Converter protection class IP 67 , transducer protection class IP 68
Wide measurement range , pipe size from DN15mm to DN6000mm
Connect the temperature transducer can finish the heat / energy measurement
●Additional option (ILAC/TAF) Test report - Standard Calibration laboratory(TAF Accreditation: 3032)
Description
． No need to cut off water , no pressure loss
． Connect clamp on temperature , transducer , can finish the heat / energy measurement
． Easy for installation

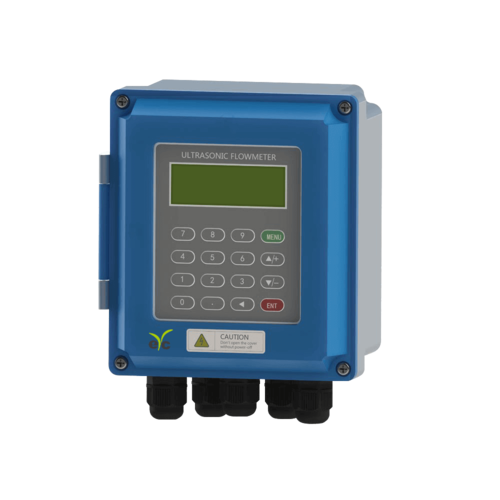

FUM05B flow meter can be virtually applied to a wide range of long-term online measurement. Convertor IP67, transducer IP68. A variety of liquid applications can be accommodated: ultra-pure liquids, portable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant, effluent.etc
Specification
Converter
Principle:
Transit-time Ultrasonic Flowmeter
Accuracy:
± 1 %
Data Interface:
Insulate RS-485, Support the Modbus
Signal Output:
． 4 ... 20 mA , electric resistance 0 ... 1 K , accuracy 0.1 %
． OCT pulse output ( Pulse width ... 1000 ms, the default is 200 ms )
． Relay output
Signal Input:
． 4 ... 20 mA , accuracy 0.1 %
． Connect the temperature transducer Pt100
Display:
2 x 20 character LCD with backlight
Measuring Medium
Type of Liquid:
Single liquid can transmit sound wave such as Water, Oil, Alcohol, Beverage, Ultra-pure liquid, etc.
Temperature:
-30 ... +160 ℃
Turbidity:
≦ 10000 ppm ( less bubble )
Flowrate:
0 ... ± 10 m/s
Pipe Installation Condition
Pipe Material:
Steel, Stainless Steel, Cast Iron, Copper, Cement, Pipe, PVC, Aluminum, Glass steel product, the liner is allowed
Pipe Diameter:
15 ... 6000 mm
Straight Pipe:
Transducer installation should be satisfied: upstream 10 D, downstream 5D, 30D from the pump
Working Environment
Temperature
Converter : -20 ... 60 ℃
Flow Transducer: 30 ... +160 ℃
Humidity:
Converter: 85 %RH
Flow Transducer: Water depth ≦ 2m
Special Cable
Twisted-pair cable, generally, the length under 50 meters; Select the RS-485, transmission
distance can over 1000m
Power Supply
DC 8 ... 36 V
AC 85 ... 264 V
Power Consumption
1.5 W
Dimension
132 x 150 x 85 mm (converter)
Application
Oil and Gas Industries / Chemical / Pharmaceutical / Food and Beverage / Metal / Mining / Pulp and Paper / Wastewater Industries.
Converter
Principle:
Transit-time Ultrasonic Flowmeter
Accuracy:
± 1 %
Data Interface:
Insulate RS-485, Support the Modbus
Signal Output:
． 4 ... 20 mA , electric resistance 0 ... 1 K , accuracy 0.1 %
． OCT pulse output ( Pulse width ... 1000 ms, the default is 200 ms )
． Relay output
Signal Input:
． 4 ... 20 mA , accuracy 0.1 %
． Connect the temperature transducer Pt100
Display:
2 x 20 character LCD with backlight
Measuring Medium
Type of Liquid:
Single liquid can transmit sound wave such as Water, Oil, Alcohol, Beverage, Ultra-pure liquid, etc.
Temperature:
-30 ... +160 ℃
Turbidity:
≦ 10000 ppm ( less bubble )
Flowrate:
0 ... ± 10 m/s
Pipe Installation Condition
Pipe Material:
Steel, Stainless Steel, Cast Iron, Copper, Cement, Pipe, PVC, Aluminum, Glass steel product, the liner is allowed
Pipe Diameter:
15 ... 6000 mm
Straight Pipe:
Transducer installation should be satisfied: upstream 10 D, downstream 5D, 30D from the pump
Working Environment
Temperature
Converter : -20 ... 60 ℃
Flow Transducer: 30 ... +160 ℃
Humidity:
Converter: 85 %RH
Flow Transducer: Water depth ≦ 2m
Special Cable
Twisted-pair cable, generally, the length under 50 meters; Select the RS-485, transmission
distance can over 1000m
Power Supply
DC 8 ... 36 V
AC 85 ... 264 V
Power Consumption
1.5 W
Dimension
132 x 150 x 85 mm (converter)
Application
Oil and Gas Industries / Chemical / Pharmaceutical / Food and Beverage / Metal / Mining / Pulp and Paper / Wastewater Industries.
