Feature : Industrial-grade Metal Meter/Can be connected to a 2-wire transmitter/Anti-interference Design/Multiple Input Type
Input : 4 ... 20 mA DC Temperature / Pressure / Differential pressure / Flow, etc.
Range : -1999 ... +9999
Accuracy : 0.2 % F.S
●Additional option (ILAC/TAF) Test report - Standard Calibration laboratory(TAF Accreditation: 3032)

Description
Industrial-grade Metal Meter/Anti-interference Design/Multiple Input Type

．Multiple input types:
    Temperature, Pressure, Differential Pressure, Flow, etc.
．2-wire loop design
．Anti-interference design
．Protection rating : IP 67
．Suitable for industrial environments
．4-digit LED display, decimal point can be arbitrarily planned

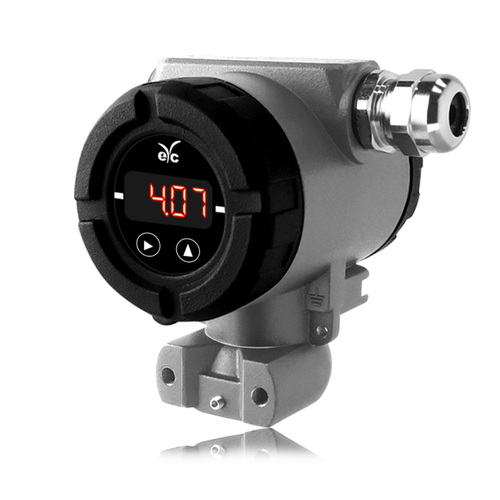

SD03 is set according to the SENSOR range. Integrated display for industrial
sites and 2-wire transmitters. Power supply in two-wire signal loop, not required
additional power supply, easy to install, high performance and stability suitable for
on-site monitoring.

Specification
Input : 4 ... 20 mA DC Temperature / Pressure / Differential pressure / Flow, etc.
Measuring Range : -1999 ... +9999
Scale : Decimal point, programmable
Signal Connection : 2-wire
Accuracy : 0.2 % F.S
Voltage Drop : 3.3 VDC
Overload Current : 40mA DC
Power : 4 ... 20mA, 2-wire Loop
Electrical Connection : M27x2 ( Optional M27x1.5 )
Protection Degree : IP 67
Electrical Protection : ■Polarity reversal protection
Environmental Temperature : -20°C ... +70°C
Material : Rugged aluminum
Weight : Metal:618g( Without wire )
Features

．Multiple input types:
    Temperature,Pressure, Differential Pressure, Flow, etc.
．2-wire loop design
．Anti-interference design
．Protection rating : IP 67
．Suitable for industrial environments
．4-digit LED display, decimal point can be arbitrarily planned

Application

Semiconductor Industry / Steel
Industry / Chemical Industry /
Environmental engineering/ Food /
Pharmaceutical / Water Plant /
Power Plant / R&D Testing
