Input：MEMS
Output：4 ... 20 mA
Measuring range：0 ... 50°C / 0 ... 100%RH(Non-condensing)
Accuracy：±0.5°C(10 ... 45°C) / ±5%RH(30 ... 80%RH)
Signal connection：2-wire
●Additional option：(ILAC/TAF)Test report-Standard calibration laboratory (TAF accreditation：3032, complying with ISO/IEC 17025)
TAF has mutual recognition arrangement with ILAC MRA

Description

● Continuously detect temperature and humidity data in indoor air quality
● Quickly real-time data monitoring and LCD display
● MEMS sensor for monitoring, long-term stability, response time quickly of measuring
● Anti-condensation and nicer long-term stability

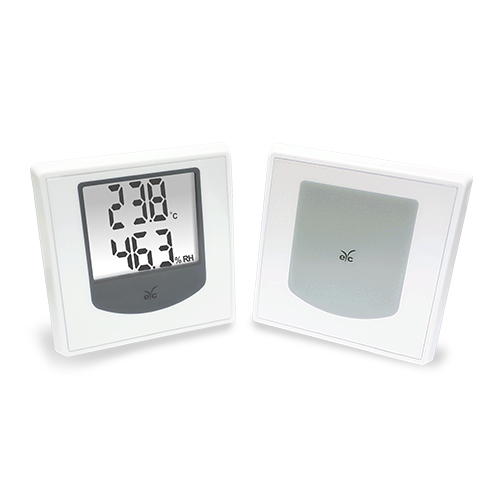

● Compact size and elegant outlook and easy to install on the wall

Specification

Display：LCD without backlight
Display readout：Double-row(Up：Temp.；Ｄown：Ｈumidity)
Digit：3 digits and 1 decimal
Digit height：17.91 mm
Input sensor type：MEMS
Measuring range：0 ... 50°C / 0 ... 100%RH(Non-condensing)
Signal output：4 ... 20 mA
Signal connection：2-wire
Warm-up time：＜2 min；Stable time 20 min
Response time：t63(15 ... 45°C / 33 ... 75%RH)≦10 sec
Sampling time：About 3 sec
Accuracy(at+25°C；DC 24 V)：±0.5°C(10 ... 45°C) / ±5%RH(30 ... 80%RH)
Medium：Air
Operating environment：0 ... +50°C / 0 ... 100%RH(Non-condensing)
Storage environment：-20 ... +60°C
Power supply：DC 15 ... 35 V
Power consumption：40 mA
Instant switching current：45 mA(Max.)
Electrical connection：4P Connector
Installation：Wall mount
IP rating：IP20
Electrical protection：■ Polarity protection ■ Over-voltage ■ Short-circuit
Certification：CE
Housing material：PC(PC-110)(UL94V-2)
Weight：88 g(with display)；73 g(without display)

Application

Hospital / Restaurant / Warehouse / Office / Parking lot / Shop / Museum / Library / Greenhouse / Data station / Ambient air circulation control / HVAC / Data monitoring room
