Features : With temperature compensated and linear correction / Physical quantity & temperature linear correction output by computer program / Industrial class sensor comes with high accuracy, long-term stability,and anti-condensation function.
Input : Capacitive Humidity Sensor & Pt100Ω
Output : 0...20mA / 4...20mA / 0...5V / 0...10V
Linear accuracy ( at + 25°C ) : ±0.15°C ± 0.002 °C x tactual / ±3dp°C ± ( 0.02 % F.S / °C )
Temp. influence of body ( at + 25 °C ) : 0.02 % F.S. / °C
Display：Optional
●Additional option (ILAC/TAF) Test report - Standard Calibration laboratory(TAF Accreditation: 3032)

Description

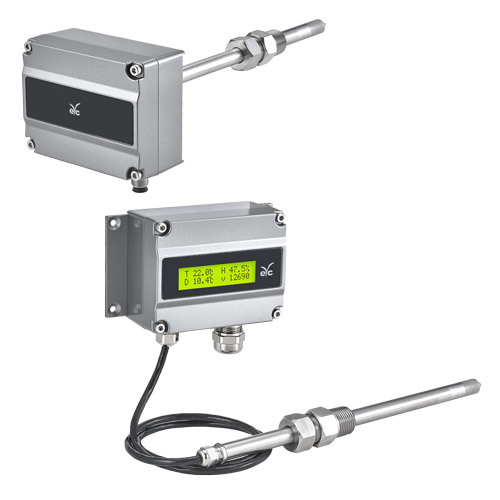

● Industrial & multi-function；Duct/Remote type；Remote: 2-meter cable
● Temp. : -50 ... 80°C ; Dew point : -50 ... 60 dp°C ;
    0 ... 20mA / 4 ... 20mA / 0 ... 1V / 0 ... 5V / 0 ... 10V
● With RS485 and MODBUS RTU communication interface that can play by program, data log, and analyze chart will be easy to monitoring.
● Physical parameters of outputs and range are programmable.
● Physical parameters are such as temperature, dew point, frost point, absolute humidity(ppm/v or ppm/w).

Specification

Measuring Range : Temperature : -50 ... 80°C ; Dew point : -50 ... 60 dp °C ; Frost point : -45 ... 0 fp°C
Accuracy ( at 25°C ) : Temperature : ±0.15°C±0.002°C x tactual ; dew point：± 3 dp °C ± ( 0.02 % F.S / °C )
Temp. influence of body (at+25°C) : 0.02%F.S./°C
Output : 0 ... 20mA / 4 ... 20mA / 0 ... 1V / 0 ... 5V / 0 ... 10V
Signal Connection : 3-wire
Load Resistance : current output max. 500 Ω / voltage output min. 10 KΩ
output calibration ( ZERO & SPAN) : software
Power Supply : 8 ... 35V / 12 ... 30V
Protection rating : body IP65 ( probe : IP20 )

Application

● Monitoring for storeroom / crisper / agriculture / food industry.
● Monitoring for industrial process / air conditioning / environmental ventilation control .
● Temperature & humidity measuring in hospital / pharmaceutical industry / textile industry.
● Environmental monitoring for building / factory / clean room / Lab / weather station.
