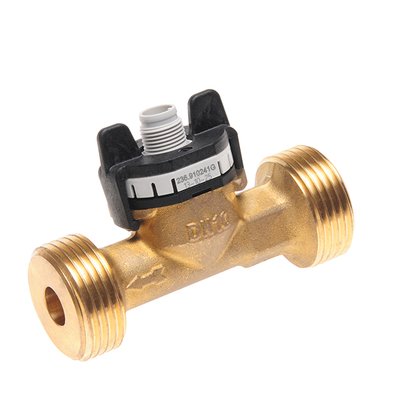

The difference between flow sensor type 236 and type 210 is the version of the case. The Vortex sensor type 236 has a rugged construction of brass connection. This flow sensor is available with a larger variety concerning power supply and outputs. You can choose between various versions as integrated temperature measurement. Type 236 without moving parts is insensitive to pollution and persuades by very few loss of pressure and a very high accuracy.

Medium  : Fluides
Flow range  : 1.8 ... 240 l/min.
Nominal diameters  : DN 10 / 15 / 20 / 25 / 32
Output  : Frequency output 9 ... 479 Hz
               Analogue signal 0 ... 10 V, 4 ... 20 mA
Temp. measurment  : PT1000
Electrical connection  : M12x1
Tube connection  : Brass - outside thread

*Flow measuring with voltage, current, pulse or frequency output
*Temperature non-sensitive measuring principle
*Excellent media resistance (measuring element not in contact with the media)
*Available with temperature measurement
*Excellent EMC capacity by reinforcement on measuring cell
*Measuring element not sensitive to debris
*Direct temperature measurement in the medium
*Drinking water approval
