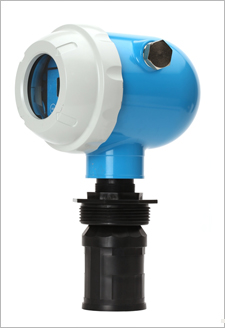

ULM-200C is an ultrasonic non-contacting level meter designed sensor and transmitter in one housing by an explosion structure. The measurement range is 8 meters and 10 meters. It is two-wire loop-powered product. The sensor material is PVDF so it can be applied in various industry applications. Its simple maintenance expects economical effect of managing facilities. The accurate level and reliable performance enable you the effective level monitoring and your facilities running safely and consistently.

Technical Specification

Dimension		130(Ø) x 187(D) x 287(H) mm
ProcessConnection		2½''PF
Weight Nominal		2.8kg
Sensor Material		PVDF
IP Rating		IP67
Temperature	Sensor	-20 to 70℃ (-4 to 158℉)
	Display	-20 to 60℃ (-4 to 140℉)
Measuring Range		0.3m to 8m (0.98 to 26.2ft)
Accuracy		0.2% of F.S
Display Resolution		1mm
Beam Angle		8° at -3dB
Damping Rate		Adjustable 0.01m/min to 100m/min
Temperature Compensation		Built-in temperature sensor
Analog Output		4 to 20 mA into max 600Ω
Display		5 Digit LCD
Power Supply		DC 20V to 30V
Supply Current		less than 0.022A
Certification		CE
Warranty		3 years
