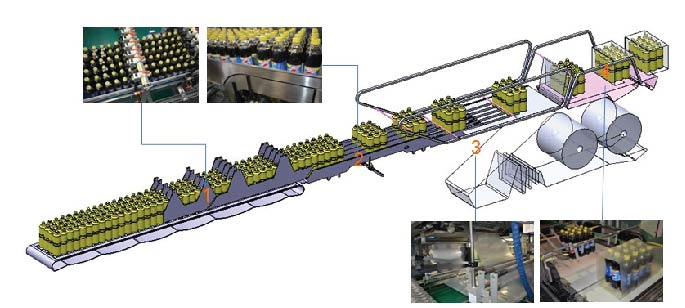

Automatic shrink wrapping machine packages bottles, cans, jars into film through continuous linear operation. The machine adapts to medium and high production line with its good stability and easy operation.
.jpg)
| Model | 1 | 2 | 3 | 4 | 5 | 6 |
| Capacity (packs/min) | 35 | 45 | 80 | 45 | 60 | 80 |
| Bottle Grouping | Gate - Type | Servo - Type | Servo - Type | Servo - Type | Servo -Type | Servo- Type |
| Dimension (mm) | 11270*1650*2600 | 11270*1650*2600 | 12670*1850*2600 | 12380*1650*2600 | 13750*1650*2600 | 17300*2160*2640 |
| Feeding Belt (L * W mm) | 3620*730 | 3620*730 | 3620*1030 | 3620*730 | 3620*730 | 6100 * 1200 |
| Min Packing Size (mm) | 200*130*80 | 200*130*80 | 200*130*80 | 200*120*80 | 200*120*80 | 200*120*80 |
| Max Packing Size (mm) | 530*300*320 | 530*300*320 | 430*300*320 | 530*300*320 | 530*300*320 | 530*300*320 |
| Bottle Diameter | 55 ~ 110 mm | 55 ~ 110 mm | 55 ~ 110 mm | 55 ~ 110 mm | 55 ~ 110 mm | 55 ~ 110mm |
| Bottle Height | 80 ~ 320 mm | 80 ~ 320 mm | 80 ~ 320 mm | 80 ~ 320 mm | 80 ~ 320 mm | 80 ~ 320 mm |
.jpg)
Shrink Wrapping Machine
.jpg)
Automatic shrink wrapping machine packages bottles, cans, jars into film through continuous linear operation. The machine adapts to medium and high production line with its good stability and easy operation.
| Model | 1 | 2 | 3 | 4 |
| Capacity (packs/min.) | 35 ppm | 45 ppm | 45 ppm | 60 ppm |
| Bottle grouping mode | Gate - Type | Servo -Type | Gate-Type | Servo - Type |
| Dimension (mm) | 12550*1650*2650 | 12550 * 1650 * 2600 | 15775*1650*2600 | 15775 * 1650 * 2600 |
| Feeding Belt (L *W) | 3620 * 730 mm | 3620 * 730 mm | 3620*730 mm | 3620 * 1030 mm |
| Min Packing Size | 200*130*80mm | 200 * 120 * 80 mm | 200*190*80 mm | 200 * 190 * 80 mm |
| Max Packing Size | 530*300*320 mm | 530 * 300 * 320 mm | 450 * 300 * 320 mm | 450*300*320 mm |
| Bottle Diameter | 55 ~ 110 mm | 55 ~ 110 mm | 55 ~ 110 mm | 55 ~ 110 mm |
| Bottle Height | 80 ~ 320 mm | 80 ~ 320 mm | 80 ~ 320 mm | 80 ~ 320mm |
Technical Advantages :
1. Low investment, quick return
2. Advanced device laypout
3. Pre-cut film, energy-saving channel
4. Lower waste, higher productivity
5. Easy operation, rapid replacement
6. User friendly interface
7. Complete after-sales service

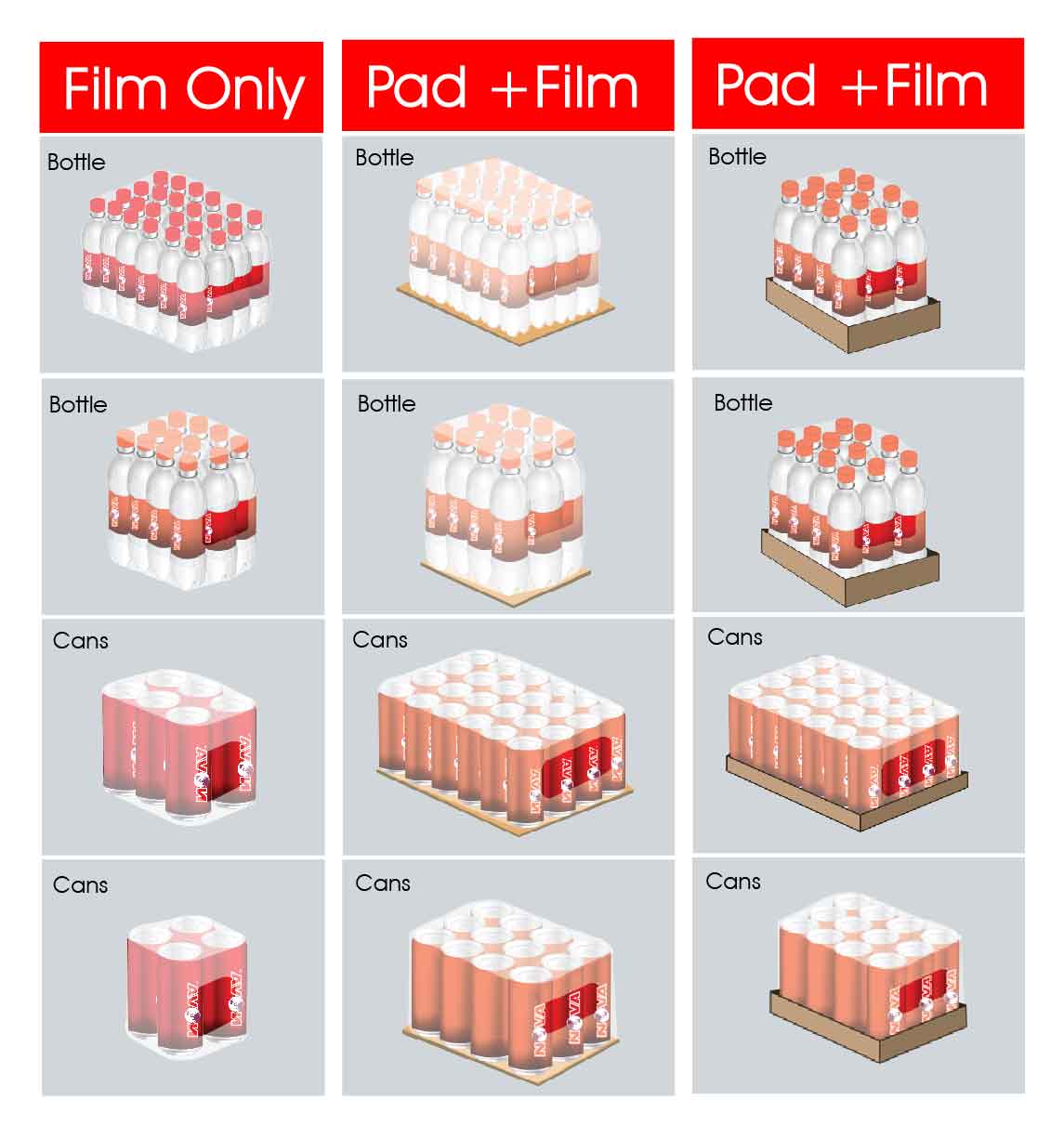

ApplicationShrink wrapper with tray can package beer bottles, soft PET bottles and other containers.
ApplicationShrink wrapper with tray can package beer bottles, soft PET bottles and other containers.
