Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
Photoelectric rotation speed |
2.5～99999RPM(r/min) |
± (0.05%+1 digit) |
|
Contact rotation speed |
0.5～19,999RPM (r/min) |
± (0.05%+1 digit) |
|
Contact surface speed (metric) |
0.05～1999.9m/min |
± (0.05%+1 digit) |
Special Function:
|
Model |

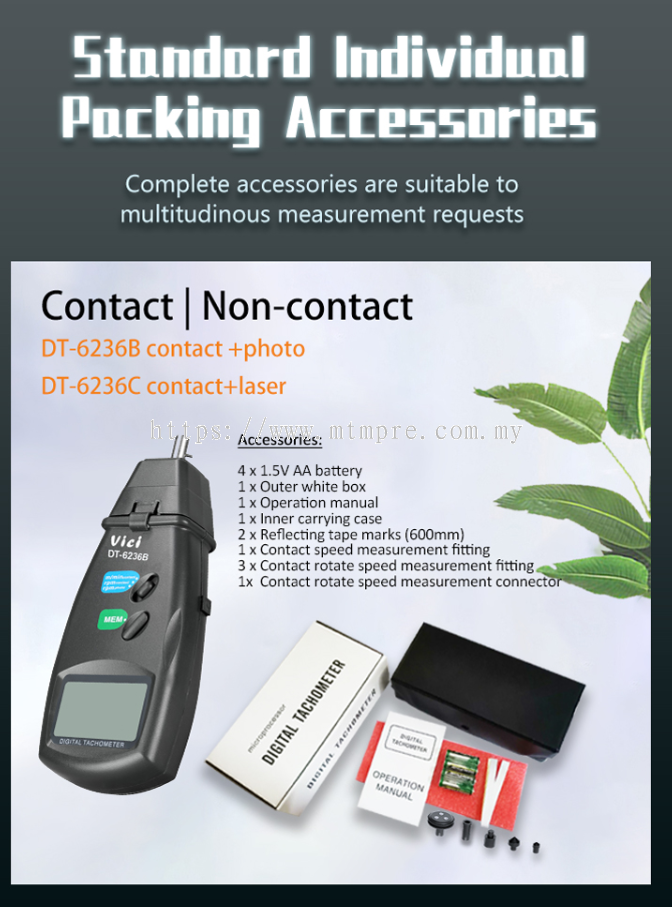

DT-6236B |
|
Measuring way |
Contact & Non-contact photoelectric |
|
Resolution |
Photoelectric rotation speed: 0.1RPM(2.5～999.9RPM) 1RPM (over 1000RPM) Contact rotation speed: 0.1RPM (0.5～999.9RPM) 1RPM (over 1000RPM) Contact surface speed: 0.01m/min(0.05～99.99m/min) 0.1m/min (over 100m/min) |
|
Sampling time |
0.8s (over 60RPM) |
|
Range selection |
Auto switch |
|
Effective distance |
50mm ～ 250mm |
|
Power Consumption: |
Max. 45mA |
|
Memory |
Auto memory Max./Min. and last value and auto store 96 groups data |
|
Time Base |
6MHz Quartz crystal |
|
Accuracy of time base |
10×10-6 (0℃～50℃) |
|
Battery |
4X1.5V AA Size Battery or to external DC 6V |
|
Max. display |
99999 |
|
LCD size |
5digits, 18mm high |
|
Backlight |
Yellow green backlight LCD |
