SJLITE LED CONNECTED DOWNLIGHT SJT ZB TUNABLE WHITE DOWNLIGHT 16W XDLSJZBAFA15W656

  • XDLSJZBAFA10W654

  • XDLSJZBAFA15W656


Features & Benefits
Die casting design to provide low temperature of chip and long lifespan. Recessed trim for incredible aesthetics. On/off dim and tunable white functions. No glare brings comfortable lighting experience.


Application
Ideal for residential & commercial.

Optics
Reflector Material: Acrylic
Diffuser Pattern: Frosted

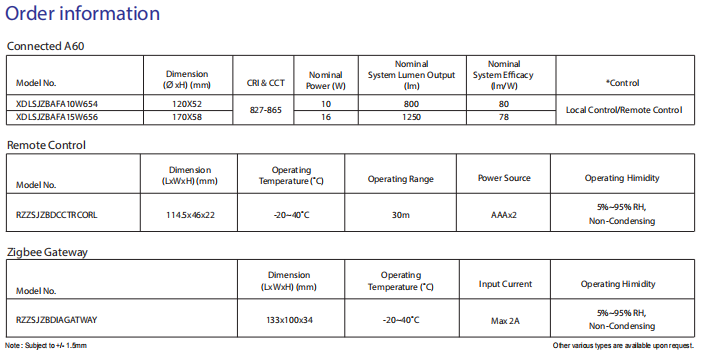

Luminaire Product Description

  1. Model No.: XDLSJZBAFA15W656

  2. Nominal Power (W): 16W

  3. Nominal System Lumen Output (lm): 1250lm

  4. Nominal System Efficacy (lm/W): 78lm/W

  5. Dimension: Ø170mm x H58mm

  6. Mounting: Recessed

  7. Housing Material: Polycarbonate

  8. Power Supply: 220-240V 50/60Hz

  9. Operating Temperature: 45°C

  10. Power Factor: 0.9

  11. Total Harmonic Distortion: >20%

  12. Ingress Protection: IP20

  13. Insulation Classification: Class II

  14. Accessories: Remote Control / Gateway

  15. LifeCycle: 25,000hrs


Other Information

Remote Control

  1. Model No.: RZZSJZBDCCTRCORL

  2. Dimension: L114.5mm x W46mm x H22mm

  3. Operating Temperature: -20~40˚C

  4. Operating Range: 30m

  5. Power Source: AAA x2

  6. Operating Himidity: 5%~95% RH, Non-Condensing

Zigbee Gateway

  1. Model No.: RZZSJZBDIAGATWAY

  2. Dimension: L133mm x W100mm x H34mm

  3. Operating Temperature: -20~40˚C

  4. Power Source: Max 2A

  5. Operating Himidity: 5%~95% RH, Non-Condensing
