• SL 189.4 10W

• SL 189.6 10W

• SL 189.6 20W

• SL 189.8 20W

• SL 189.8 30W

Features & Benefits

Designed for recess mounting ceiling with better glare control. Tool free assembly, simple as push and rotate.

Optics

• Reflector Material: Aluminium Reflector

• Beam Angle: 60°/90°

Applications

Ideal for commercial building, offices, conference room, classrooms, shops & etc.

Control

*Dimming Option: Fixed Output

Luminaire Product Description

1. Mounting: Recessed

2. ​Housing Material: Aluminium

3. ​Power Supply: 220-240V 50/60Hz

4. Operating Temperature: -20°...+40°C

5. ​Power Factor: 0.90

6. ​Total Harmonic Distortion: ≤20%

7. Ingress Protection: IP20

8. Insulation Classification: Class II

9.  Life Cycle: 50,000 hrs

10. Model No: SL 189.8 20W

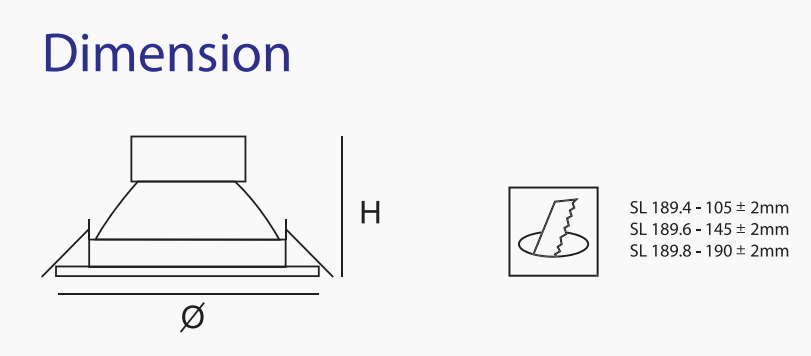

11. Dimension (ØxH) (mm): 225x135

12. ​Driver Model: Tridonic DLA ECG

13. Light Source Model: Tridonic DLA

14. CRI & CCT: 830/840/865

15. Nominal Power (W): 20

16. Nominal System Lumen Output (lm): 2250

17. Nominal System Efficacy (lm/W): 113
