THOR Ethernet Surge Protector (TRSS-RJ45 series) Product Introduction:
What is RJ45 surge protector?
RJ45 lightning protection device is specially designed for computer users in areas with inadequate lightning protection infrastructure, such as towns and mountainous areas with imperfect lightning protection facilities. Destructive electromagnetic waves such as lightning will enter the connected computer network port through the network cable, resulting in damage to the network port or even the computer motherboard. The RJ45 lightning protection device adopts international advanced lightning protection components, combined with excellent lightning protection circuits to protect the computer.The security of the network port and its motherboard greatly improves the ability of the signal port of network communication equipment to resist lightning strikes and surges.
THOR RJ45 SPDs are suitable for various devices with RJ45 network ports, such as RJ45 network port protection for computers, routers, IPTVs, printers and other equipment. RJ45 surge protection is 1, 2, 6, 4, 5, 7, 8. Effectively protect 100/1000M adaptive network cards and motherboards with integrated network ports, and pass the international standards EN61643-21/IEC61643-21.

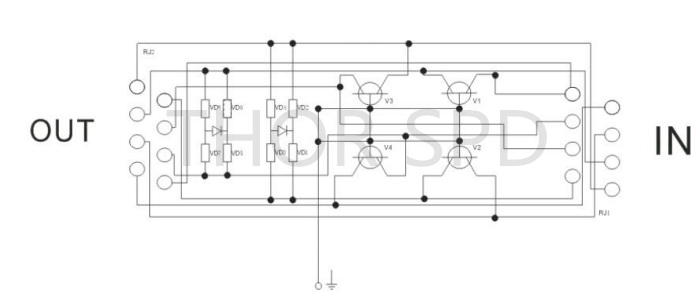

THOR Ethernet Surge Protector (TRSS-RJ45 series) Diagram :
.jpg)
| Electrical Characteristics | ||
| Type | TRSS-RJ45/8 | |
| Product model | POE | |
| 1 port | ||
| In accordance with | IEC 61643-21, EN61643-21 | |
| Normal Voltage (Vdc) : Un | 48Vdc | |
| Max.Continuous operating voltage(Vdc) : Uc | 68Vdc(80vdc should be customized.) | |
| Normal discharge current (8/20us) kA. : In | 5 | |
| Max discharge current (8/20us) kA. : Imax | 10 | |
|
Lighting impulse current (10/350us) |
Iimp | 1 |
| Normal Current | IL | 800mA |
| Voltage protection Level (V) | @1kV/us :Up | ＜45V(LL);＜600V(LG) |
| @5kV 10/700/us :Up | ＜20V | |
| Insertion loss | ≤0.1dB | |
| Response time | Instantaneous | |
| Transmission Speed | 1000Mbps | |
| Type of connection In/Out | RJ45 (shielded) Female / Female | |
| Ethernet cable Transmission performance | CAT 6 | |
| Connection Type | Series | |
| Protective line |
Data:1/2/3/6; PoE:4/5/7/8 |
|
| Mounting | Inline / DIN rail | |
| Material | Aluminum | |
| Dimension (mm.) | 94.5Wx25Lx25H | |
| Weight (g.) | 0.09/(With Din Rail: 0.125) | |
| Operating temperature range | -40oC to +85oC | |
| Environmental protection |
IP20 |
|
