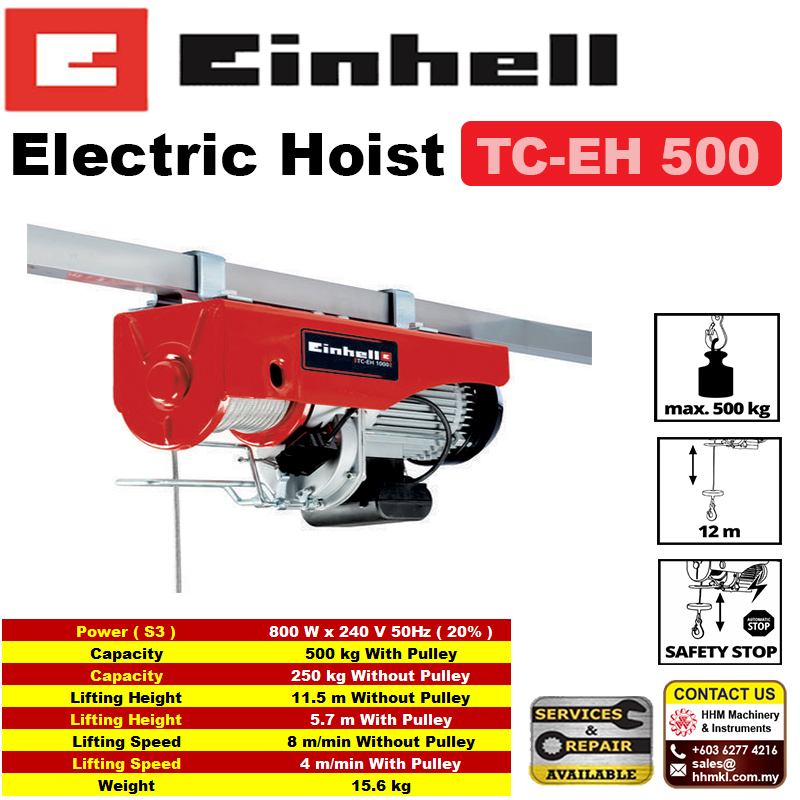

Specifications
- 12 m wire cable (twist-free, Ø 4.0 mm)
- Guide roller with load hook
- Operator switch with emergency stop function
- Motor with thermal switch
- Load hook with safety catch
- Automatic brake secures the load in every position
- Automatic limit cut-out
- Fastening with two double clamps
- - - - - - - - -- - - - - - - - -- - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - -- - - - - - - - -- - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Technical details
- % power S3: 20 %
- Cable length: 11.5 m
- Cable thickness: 4 mm
- Lift speed: 8 m/min
- Lift speed (with pulley): 4 m/min
- Load-bearing capacity: 250 Kg
- Load-bearing capacity (with pulley): 500 Kg
- Max. lift height: 11.5 m
- Max. lift height (with pulley): 5.7 m
- Power S3: 800 W
- - - - - - - - -- - - - - - - - -- - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - -- - - - - - - - -- - - - - - - - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3 Months Warranty under T&C.
All Warranty covers only manufacturer’s defect.
Warranty shall not cover damages or defect caused by:
- Normal wear and tear.
- Usage not in accordance with the operation instructions manual.
- Attempted unauthorised repairs, tempering, alternations, modifications, additions and/or deletions.
- Accident, mishandling/negligence, abuse/mistreatment, loss and/or other calamities whether caused by nature or negligent act/omission.
