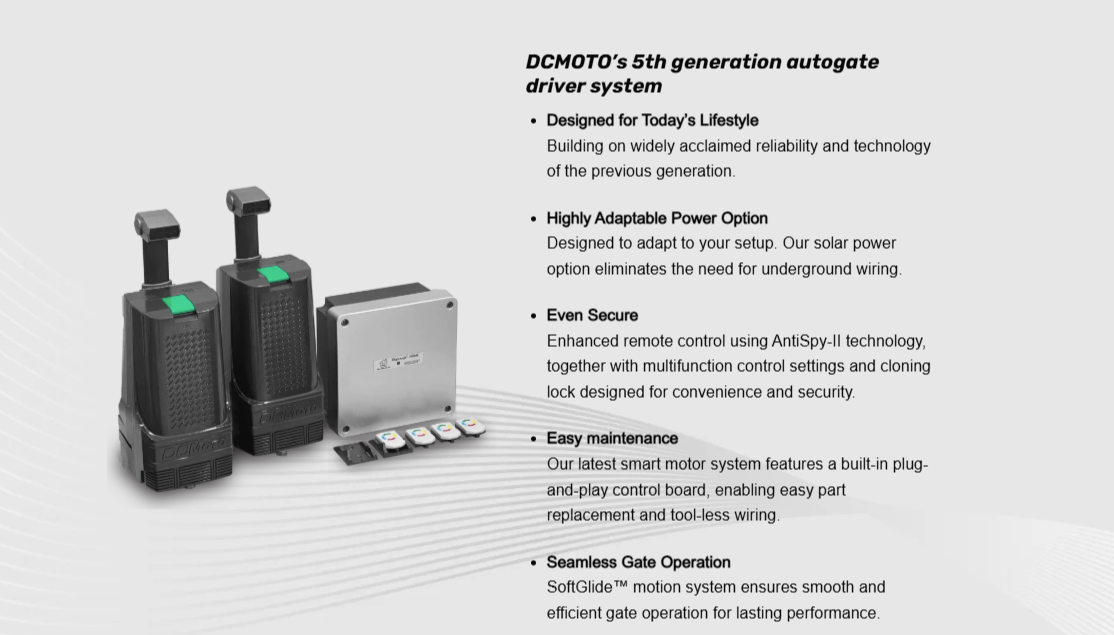

DC Moto GFM975 Automatic Gate Driver System for Swing & Folding Gate
The New Era of Autogate Technology!
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Technical Specifications
Maximum Rating| (per wing) | ||
|---|---|---|
| Max width (m) | Max weight (kg) | |
| Swing Gate | 2 | 150 |
| Folding Tracked Gate | 4 | 200 |
| Folding Trackless Gate | 3.4 | 150 |
Electrical Specification

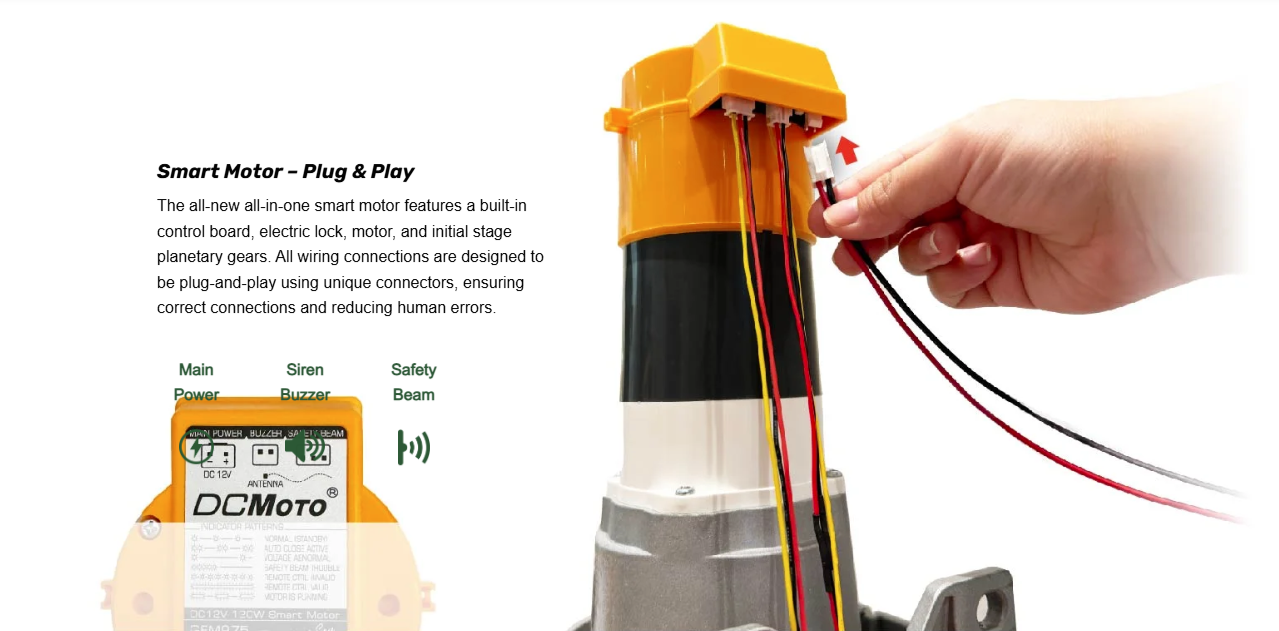

| Motor Type: | 120W PMDC Motor |
| Standard Operating Voltage: | 12V ~ 19V (DC) |
| Standard Power Usage: | 0.015A (Standby) 12A (Maximum Operating Current) |
| Battery Life: | 1500 Operations* 14 Days Standby* |
* Performance may vary due to loading condition. Tested under laboratory-controlled conditions using a 12V7Ah Battery (Healthy, Fully Charged) and a single motor
Mechanical Specification

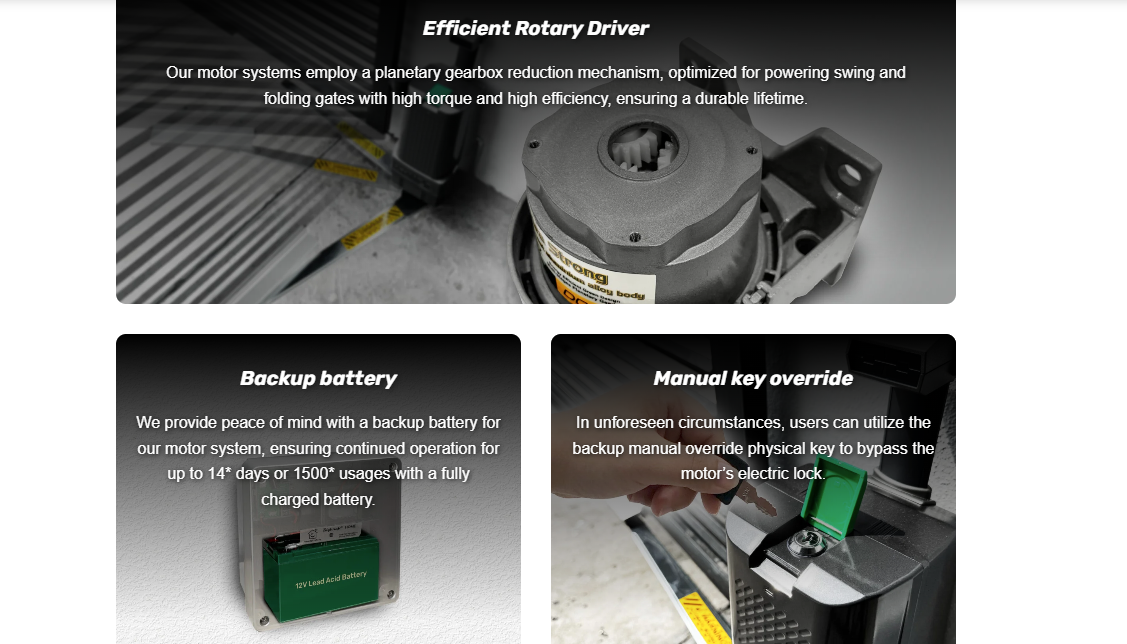

| Driver: | Single Arm Rotary Motion |
| Gear System: | 25 element 4 stage planetary gear train |
| Transmission Reduction Ratio: | 1:2310 |
| Maximum Output Torque: | 196Nm (dynamic) 318Nm (static) |
| Maximum Speed: | 0.17 rad/s** |
| Standard Operating Time: | 10 s (90%)** 16 s (100%)** |
| Recommended Operation Rate: | Less than 100 operations per day |
** 90 Degree Rotation. Performance may vary based on gate mass and type
Electronics Specification
| Processor: | Microcontroller Embedded System |
| Remote Radio Frequency: | 315MHz |
| Remote Radio Protocol: | Digicraft® AntiSpy-II Technology |
| Motion Control: | Digicraft® SoftGlide™ Motion System |
Safety & Security Features

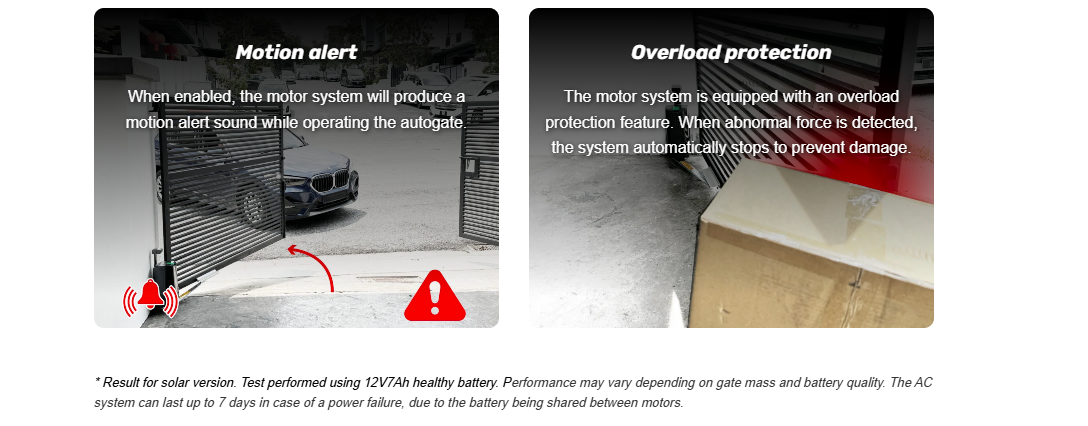

| Overload Protection: | Yes |

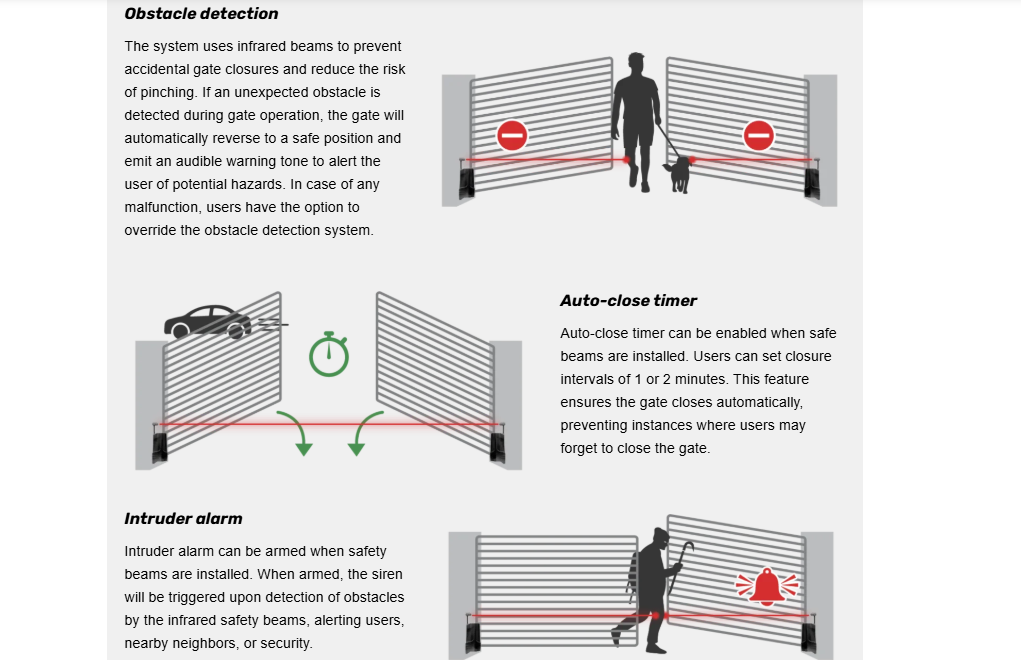

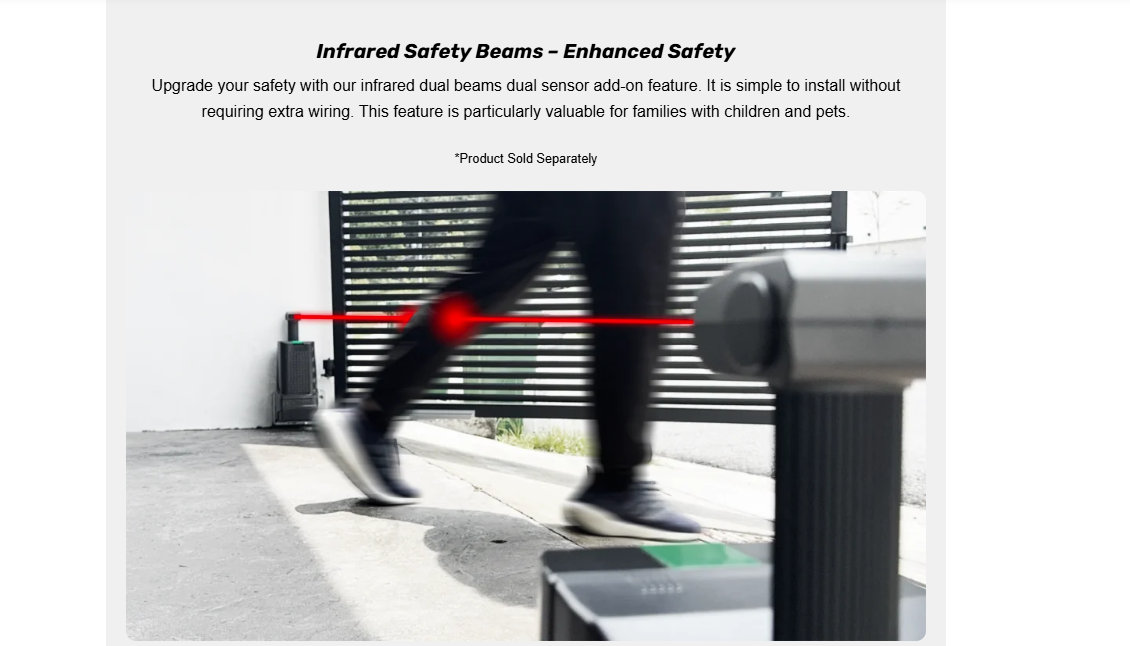

| Obstacle Detection: | Yes (Safety Beam Required) |
| Locking Mechanism: | Electromagnetic lock with manual key release |
| Panic Alam: | Yes (Triggered from remote control) |
| Intruder Alarm: | Yes (Arming Required) |
| Gate Motion Alert: | Yes (Setting Required) |
Additional Features

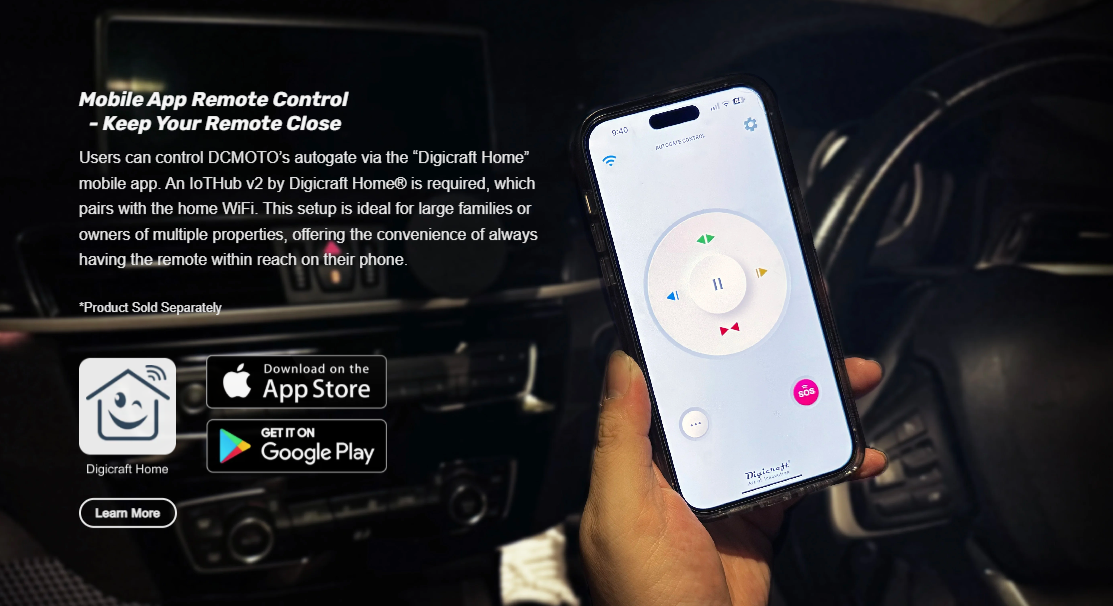

| Smart Home Hub Control: | Yes (Digicraft Home IoTHub Required) |

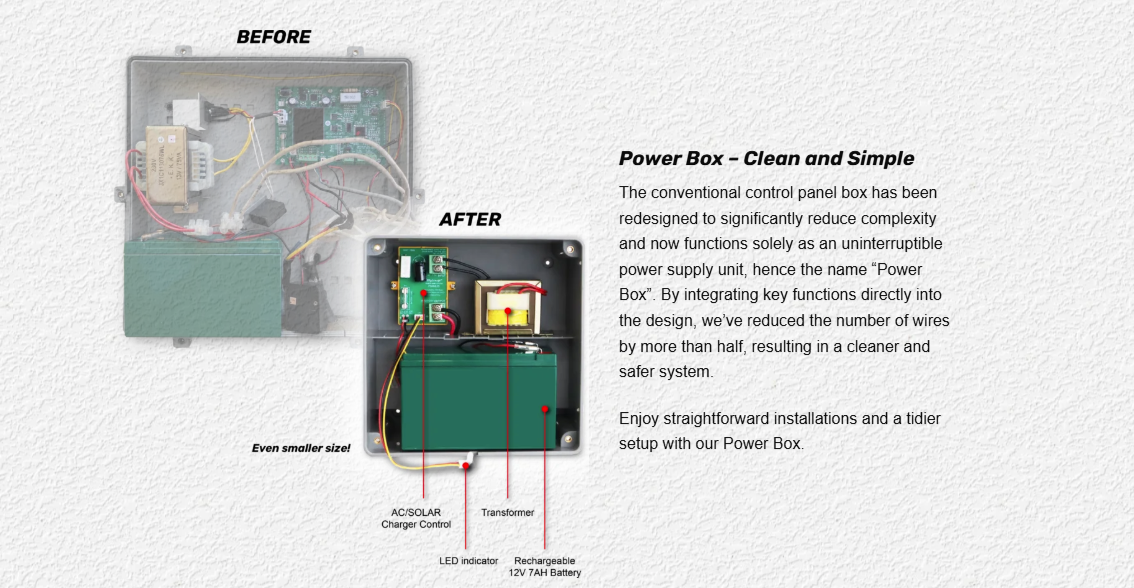

| Backup Battery: | Yes |
