Johor,Ulu Tiram,Johor Bahru (JB),Penang,Selangor,Kuala Lumpur (KL),Taman Perindustrian Cemerlang,Shah Alam,Bayan Lepas,Singapore - Sinowon 2.5D Fully Auto Vision Measuring Machine (AutoVision Series)

27-Feb-2018

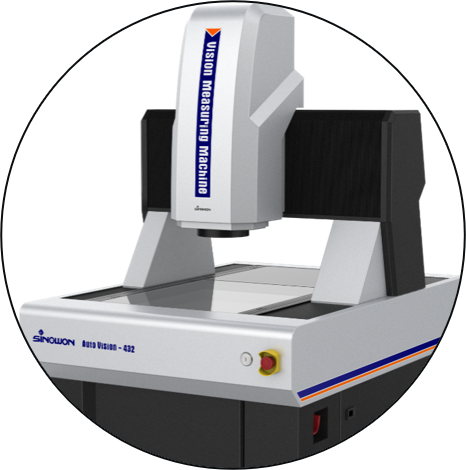

2.5D AutoVision is a Gantry Fully Auto Vision Measuring Machine, designed for high accuracy and large dimension measurement by MSP Metrology (M) Sdn Bhd


Features


  • Moving gantry structure, the workpiece is fixed;
  • Four-axis CNC fully auto close loop control, auto measurement;
  • “00” grade “JINANQING”marble base and pillar, stable and reliable;
  • Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;
  • Imported H grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
  • Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
  • 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
  • Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
  • With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation;
  • Optional touch probe and laser probe, it can also be customized according to customer request;
  • Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.



High Accuracy

Imported open type linear scale with resolution of 0.1µm for higher accuracy and greater stability

Imported H grade linear guide, precision grinding ball screw and AC servo motor to ensure accuracy stability of system position

6.5x continue auto zoom lens, precision auto zoom, only need to make pixel calibration one time





SINOWON iMEASURING 4.1

Professional multisensory 3D measuring software which is friendly operation, powerful function, high accuracy and stability, and simple maintenance that enhance the quality control situation.






Specifications



Full Specifications

Product Name 2.5D Fully Auto Vision Measuring Machine
Model AutoVision 432 AutoVision 542 AutoVision 652 AutoVision
Code 520-121 520-131 520-141 520-151
X-Y axis Travel 500 x 400 mm 500 x 400 mm 600 x 500 mm 800 x 600 mm
Z axis Travel 200 mm 200 mm 200 mm 200 mm
Load Capacity 30 kg 30 kg 30 kg 30 kg
Dimension 1450 x 950 x 1650 mm 1450 x 950 x 1650 mm 1600 x 1050 x 1650 mm 2000 x 1200 x 1650 mm
Packing Dimension 1690 x 1300 x 2000 mm 1690 x 1300 x 2000 mm 1800 x 1400 x 2000 mm 2300 x 1700 x 2000 mm
Weight 780 kg 780 kg 1380 kg 2000 kg
X-Y-Z axis Linear Scale(mm) Imported open linear scale, resolution: 0.0001 mm
Guidance Mode Imported H grade linear guide, double track double slider guide
Operation Mode Joystick controller, mouse operation, automatic detection program
Measurement Accuracy X-Y axis:≤2 + L/200µm
Z axis: ≤5+ L/200µm
Repeatibility ±2µm
Video System 1/2″ color CCD camera
6.5x automatic zoom lens
Optical magnification: 0.7x – 4.5x, video magnification: 20x – 129x (21.5″ monitor)

Field-of-View(mm)

(Diagonal* Horizontal* Vertical)

Lens magnification 0.7X 1X 2.0X 3.0X 4X 4.5x
1/2″ CCD 11.43X9.14X6.86 8.00X6.40X4.80 4.00X3.20X2.40 2.67X2.13X1.60 2.00X1.60X1.20 1.78 x 1.42
Illumination Contour: LED parallel contour illumination
Surface:5-ring 8-division 0-255 grade continue adjustable
Software System iMeasuring 4.1 Fully Auto Measuring Software
Working Environment Temperature 20°C±2°C, humidity range <2°C/hr, humidity 30-80%, vibration<0.002g, <15Hz
Power 220V/50Hz/10A
