CHARACTERISTICS OF THE MAST BOOM LIFT PIAF 810
ADVANTAGES
• Efficiency thanks to the 2 x 110° rotation of the top.
• Designed for any indoor or outdoor job site.
• Smooth operating thanks to the hydraulic joystick.
• Easy to operate.
• Zero turnning radius.
• Preserving fragile floors.
• Designed and manufactured for heavy-duty use.
STANDARD FEATURES
• Non-marking rubber tracks.
• Progressive hydraulic joystick transmission.
• Driving operated by a hydraulic joystick.
• 575 Ah 24 V centralized battery filling system.
• 85 A battery charger.
• 2 drive speeds.
• Lifting facilities.
• Emergency hand-pump.
• Battery indicator with 80% discharge cut-off.
• Tilt indicator with buzzer.
• Overload sensor.
• System preventing from tipping over.
• Hour meter.
• Strong large size platform.
OPTIONS
• Air line to platform.
• 220V AC power to platform.
• Automatic power cut-off if tilt value >5°.
• Flashing light.
• Motion alarm.
• Special paint colour(s).

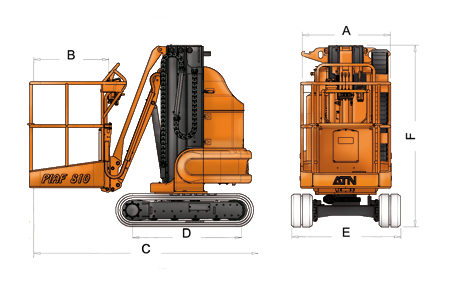

| Working height | 8,10 m |
| Platform height | 6,10 m |
| Horizontal reach | 3,00 m |
| Lift capacity | 200 Kg |
| Turntable rotation | 2x110 ° |
| Platform width | 0,90 m |
| Platform length | 0,80 m |
| Wheelbase | 1,20 m |
| Width | 1,20 m |
| Length- stowed | 2,47 m |
| Height - stowed | 1,98 |
| Drive speed - stowed | 1,8 Km/h |
| Drive speed - raised | 0,8 Km/h |
| Turning radius | 0 |
| Gradeability - stowed | 30 % |
| Maximum tilt value | 5 ° |
| Weight | 2200 Kg |
| Max.ground bearing pressure | 49 kN/m² |
