TCT-2 complies with the ISBTvoluntary standard test methods for PET bottles. With the user-defined test cycles, it can be widely compatible for any in-house standards from customers on different test requests.
Characteristic:
- Perfectly parallel plates
- Automatic record of the force
- Touch screen display
- Predefined the testing distance and testing speed
- Available for both compression (top load) test the traction (pull) test
- User-defined test cycle (up to 4 steps of force and holding time) satisfies different test request
- Memory of 30 products, 10 operators, batch number, sample number ( all by password )
- Easy installation of samples.
- Displays all the information during cycle: time, setting, operator, product, batch NO., Sample NO., value
- Reviews the real-time testing curve
- RS232 outputs
- Stainless steel design ensures the durability of tester
- Overload protected
- Safety design
Specifications
- Dimensions:500 x 400 x 870mm
- Measuring range: 0-1000 N (Bigger by order)
- Resolution:1N
- Power: 110/240V, AC50-60Hz
- Weight: 50 kg
.jpg)
TCT-2 for Traction Test (with Optional Fixture for Traction Test)
.jpg)
TCT-2 for Tube Test (with Optional Fixture)
- Calibration module
- Mini printer
- Custom-made fixture for sample
- “QualiForce” software
(1).jpg)
Mini Printer (Optional)

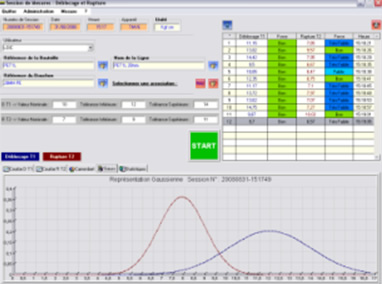

“QualiForce” software
“QualiForce” software
Fixtures for other tests
Flip Top Test
Disk Top Test

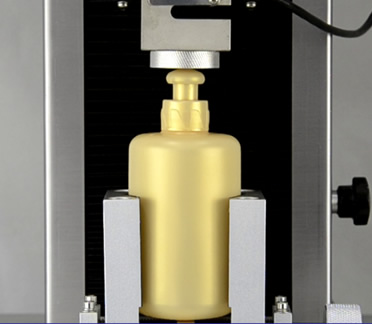

Push & Pull Test
Push & Pull Test
Cover Opening Test
Push Test of Pump Force
Breaking Test
Tube Removal Test
