Electric Chain Hoist

Features

F series hoists equipped with auxiliary brake.

1. HELICAL GEARING
   used where practical to provide quiet operation.
2. LONG LIFE BRAKE UNIT

   Disk type Electro-Magnetic brake system for steady operation and long life F series hoists are equipped with patented Automatic Adjusting Brake for easier maintenance and added safety.
3. U.S PAT,3908802
   W.Germany PAT.2354044
4. LIMIT SWITCH (Upper and Lower)
   interrrupt motor power to prevent hook overtravel and hazardous condition such as chain kink.
5. PLUG-IN CABLES
   reduce maintenance time and installation.
6. ELECTRO-MAGNETICS CONTACTOR
   with mechanical-interlocking against line short by mechanical shock.
7. Moist sizes are provided with REVERSE PHASE INSPECTING RELAY
   cut control circuit when reverse phasing.
8. CHAIN CONTAINER
   as standard part for safer operation.
9. POWER CHAIN
   special (paterned) alloy steel chain surface hardeded for optimum strength and wear resistance.
   (DIN-5684-8)(U.S. PAT. 3830054)
10. LOWER HOOK
    is heart-treated and equipped with safety latch and 360° swivelling.
11. PUSHBUTTON CABLE
    is molded with strain relief wire rope into one body. This assures easier and safer operation.
12. PUSHBUTTON SWITCH
    is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.The 24 volt control circuit reduce shock hazard to the operation.

Specifications

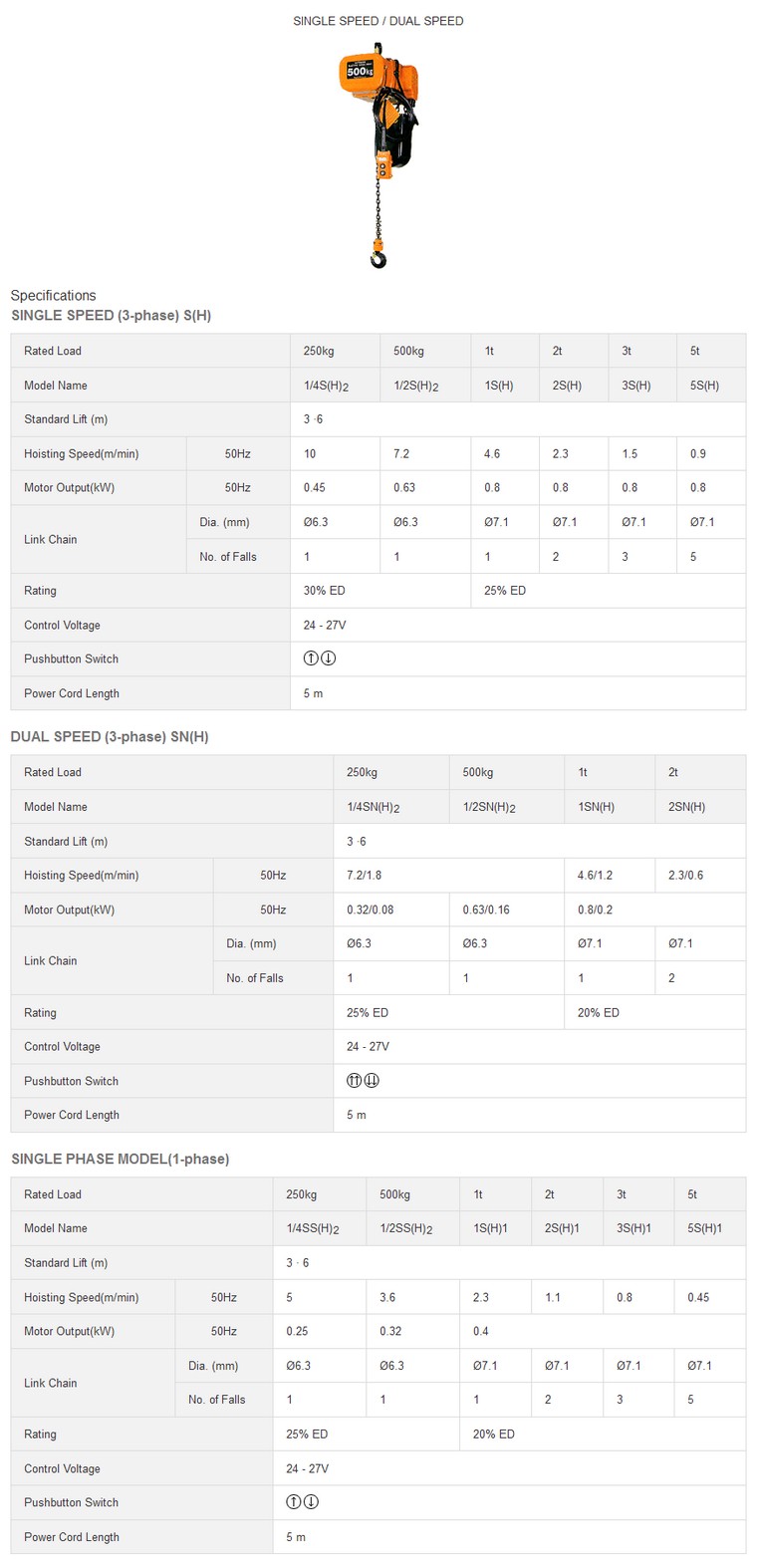

Standard Type (S-series)


High Speed Type (F-series)


Trolleys
