Room controller for wall mounting. Suitable for controlling central, hot water floor, electric, night storage heaters, etc. Special temperature range from 5...60C. Output for heating or cooling. Bimetal technology with thermal feedback and high precision. Temperature setback possible via external timer. Range restriction in the setting knob as a heating cost brake. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail.
With thermal feedback, for surface mounting, or directly onto the flush outlet with vertical mounting holes, or snap fastened onto a DIN rail; Operating voltage: 230 VAC 50/60 Hz. Degree of protection: IP 30. Dimensions: 75 x 75 x 25.5 mm.
Model
EBERLE RTR-E 6705 ROOM TEMPERATURE CONTROLLER (5°C TO 60°C) (MADE IN GERMANY) = RM195.00 PER PC (28-11-2025=AAA31.26667) (3-9-2024=AAA33.0105)(25-9-2023=AAA29.8263)

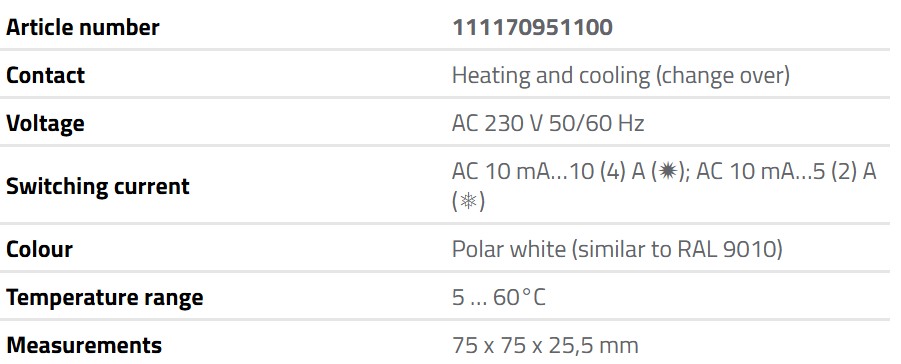

Temperature range: +5.0 to +60 °C. Contact: 1 CO. Switching current: AC 10 mA to 10 A heating, DC 30 W, 10 mA to 5.0 A cooling. Hysteresis: approx. 0.5 K.
Temperature range: +5.0 to +60 °C. Contact: 1 CO. Switching current: AC 10 mA to 10 A heating, DC 30 W, 10 mA to 5.0 A cooling. Hysteresis: approx. 0.5 K.
