03-Feb-2017

COPELAND Scroll Compressor (ZB 2 - 15 HP)

  • One model for multi-refrigerants R-404A, R-407A, R-407C, R-134a and R-22
  • Seasonal efficiency up to 15% above traditional semi-hermetic compressor
  • Large operating envelope
  • Quiet operation
  • Fast temperature pull down capabilities
  • Light weight and compactness
  • Copeland Scroll Digital™ technology for simple, step-less capacity modulation


How Scroll Compressors Work

The Copeland Scroll compressor has one scroll, or spiral, orbiting in a path defined by a matching fixed scroll. The fixed scroll is attached to the compressor body. The orbiting scroll is coupled to the crankshaft and orbits, rather than rotates.

The orbiting motion creates a series of gas pockets travelling between the two scrolls. On  the outer portion of the scrolls, the pockets draw in gas, which they then force to the centre of the scroll, where the gas is discharged.  As the gas moves into the increasingly smaller inner pockets, the temperature and pressure increase to the desired discharge pressure.

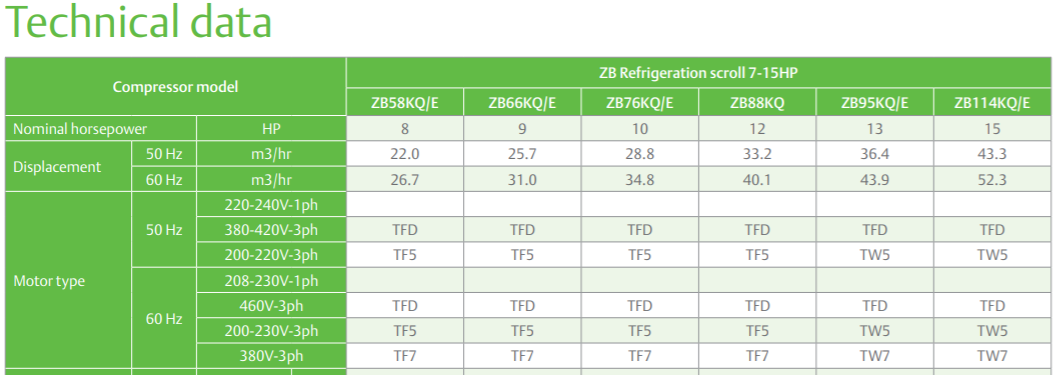

Model Application (Mineral & POE OIL)

COPELAND ZB114KQE-TFD-551 SCROLL COMPRESSOR
COPELAND ZB15KQ-TFD-559 SCROLL COMPRESSOR (2HP/3PH) (R22) (ROTALOCK/SIGHT GLASS)
COPELAND ZB15KQ-TFD-558 SCROLL COMPRESSOR (2HP/3PH) (R22) (BRAZING) (REPLACED:ZX15KC-TFD-524)
COPELAND ZB15KQE-PFJ-559 SCROLL COMPRESSOR (R404A)
COPELAND ZB15KQE-TFD-524 SCROLL COMPRESSOR (R404A)
COPELAND ZB15KQE-TFD-559 SCROLL COMPRESSOR (R404A)
COPELAND ZB19KQE-PFJ-559 SCROLL COMPRESSOR (R404A)
COPELAND ZB19KQE-TFD-524 SCROLL COMPRESSOR (R404A)
COPELAND ZB19KQE-TFD-558 SCROLL COMPRESSOR (R404A/R407C) (BRAZING/SIGHT GLASS) (RL32H POE OIL)
COPELAND ZB19KQE-TFD-559 SCROLL COMPRESSOR (R404A)
COPELAND ZB19KQ-PFV-524 SCROLL COMPRESSOR (R22)
COPELAND ZB19KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB21KQE-PFJ-524 SCROLL COMPRESSOR
COPELAND ZB21KQE-PFJ-559 SCROLL COMPRESSOR
COPELAND ZB21KQE-TFD-524 SCROLL COMPRESSOR
COPELAND ZB21KQE-TFD-559 SCROLL COMPRESSOR W/O ROTALOCK VALVE (R22/R404A)
COPELAND ZB21KQ-TFD-558 SCROLL COMPRESSOR (3PH) (BRAZING) (MINERAL OIL R22)
COPELAND ZB21KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB24KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB26KQE-PFJ-559 SCROLL COMPRESSOR
COPELAND ZB26KQE-TFD-524 SCROLL COMPRESSOR
COPELAND ZB26KQE-TFD-558 SCROLL COMPRESSOR
COPELAND ZB26KQE-TFD-559 SCROLL COMPRESSOR
COPELAND ZB26KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB29KQE-TFD-558 SCROLL COMPRESSOR
COPELAND ZB29KQE-TFD-559 SCROLL COMPRESSOR
COPELAND ZB30KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB38KQE-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB38KQE-TFD-558 SCROLL COMPRESSOR (380-420V/1PH/50HZ) (R22/R404A) (BRAZING)
COPELAND ZB38KQE-TFD-559 SCROLL COMPRESSOR
GREFAC GTF 12 DISCHARGE VALVE (1/2'' X 1'') * Optional
GREFAC GTF 23 SUCTION VALVE ( 7/8'' X 1 1/4'' ) * Optional
COPELAND ZB38KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB45KQE-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB45KQE-TFD-558 SCROLL COMPRESSOR (380-420V/50HZ) (R22/R404A)
COPELAND ZB45KQE-TFD-559 SCROLL COMPRESSOR (R404A)
GREFAC GTF 15 DISCHARGE VALVE ( 3/4'' X 1'' ) * Optional
GREFAC GTF 23 SUCTION VALVE ( 7/8'' X 1 1/4'' ) * Optional
COPELAND ZB45KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB48KQE-TFD-559 SCROLL COMPRESSOR (R4040A)
GREFAC GTF 15 DISCHARGE VALVE ( 3/4'' X 1'' ) * Optional
GREFAC GTF 23 SUCTION VALVE ( 7/8'' X 1 1/4'' ) * Optional
COPELAND ZB58KQE-TFD-550 SCROLL COMPRESSOR
COPELAND ZB58KQE-TFD-551 SCROLL COMPRESSOR
COPELAND ZB58KQE-TFD-559 SCROLL COMPRESSOR
COPELAND ZB58KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB66KQE-TFD-550 SCROLL COMPRESSOR
COPELAND ZB66KQE-TFD-551 SCROLL COMPRESSOR (R404A/R407C) (ROTALOCK) (NN)
CULMI ROTALOCK VALVE [1-3/8'' (STUB-ODF WITH COPPER END) X 1-3/4'' (ROTALOCK VALVE)]
CULMI ROTALOCK VALVE [7/8'' (STUB-ODF WITH COPPER END) X 1-1/4'' (ROTALOCK VALVE)]
COPELAND ZB76KQE-TFD-550 SCROLL COMPRESSOR
COPELAND 10.0HP ZB76KQE-TFD-551 (380-420V/3PH/50HZ) SCROLL COMPRESSOR (R404A) (ROTALOCK)
CULMI ROTALOCK VALVE [1-3/8'' (STUB-ODF WITH COPPER END) X 1-3/4'' (ROTALOCK VALVE)] (SUCTION)
CULMI ROTALOCK VALVE [7/8'' (STUB-ODF WITH COPPER END) X 1-1/4'' (ROTALOCK VALVE)] (DISCHARGE)
COPELAND ZB76KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB76KQ-TFD-550 SCROLL COMPRESSOR
COPELAND ZB88KQE-TFD-550 SCROLL COMPRESSOR (R22)
COPELAND ZB88KQE-TFD-551 SCROLL COMPRESSOR
COPELAND ZB88KQ-TFD-524 SCROLL COMPRESSOR (R22)
COPELAND ZB88KQ-TFD-550 SCROLL COMPRESSOR (R22)
COPELAND ZB88KQ-TFD-551 SCROLL COMPRESSOR
COPELAND ZB95KQE-TFD-551 SCROLL COMPRESSOR
COPELAND ZB95KQE-TFD-551 SCROLL COMPRESSOR (R407C) (ROTALOCK) (OIL SIGHT GLASS)

Rotalock Valve Kit (ZB15/ZB19/ZB21/ZB26)

CULMI ROTALOCK VALVE [1/2'' (STUB-ODF WITH COPPER END) X 1'' (ROTALOCK VALVE)]
CULMI ROTALOCK VALVE [3/4'' (STUB-ODF WITH COPPER END) X 1-1/4'' (ROTALOCK VALVE)]

GREFAC GTF12 DISCHARGE VALVE 1/2'' X 1''
GREFAC GTF 20 SUCTION VALVE 3/4'' X 1 1/4''

Rotalock Valve Kit (ZB29/ZB38/ZB45)

CULMI ROTALOCK VALVE [1/2'' (STUB-ODF WITH COPPER END) X 1'' (ROTALOCK VALVE)]
CULMI ROTALOCK VALVE [7/8'' (STUB-ODF WITH COPPER END) X 1-1/4'' (ROTALOCK VALVE)]


GREFAC GTF12 DISCHARGE VALVE 1/2'' X 1''
GREFAC GTF 23 SUCTION VALVE 7/8'' X 1 1/4''

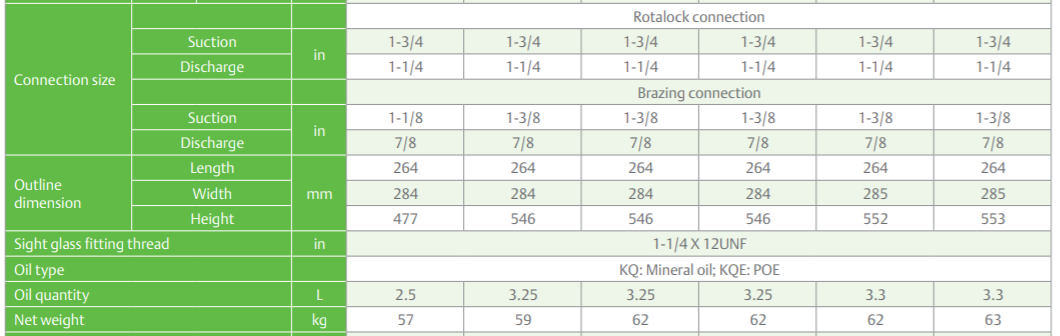

Connection Type Determination

Refer Attached Bill of Material (BOM)


Phase Determination

PFJ is single phase. TFD is 3 phase.
