XG8900 On-line Intelligent Vibration Monitoring System

• Long-term on-line vibration and temperature monitoring
• Real-time vibration key parameter , including vibration intensity, acceleration, etc
• Integrated Time Domain Waveform Parameter. Diagnosis of Bearing and Gearbox Impact and Wear
• Real-time data on ''cloud '' platform to manage massive data, data storage, analysis, application
• With PC or mobile APP , 24/7 manage real-time data & historic trend for equipment PHM

Application:

• Industry: Wind power station, chemical, metallurgy, port, paper, coal, mining, cement, thermal power station, water, tobacco, automotive, equipment manufacturing and other industries
• Equipment: Fan, compressor, pump, motor, reducer, turbine, paper machine, coiler, vibrating screen, shearer, crusher, mill, belt conveyor and other rotary equipmen

X/Y/Z triaxial vibration sensor

• Installation environment :-40℃ to 85℃
• Installation: typical M8 or M6 screw installation, or strong magnetic seat quick installation
• Measuring channel: X,Y,Z triaxial direction ,±16 g measurement, with automatic range adjustment

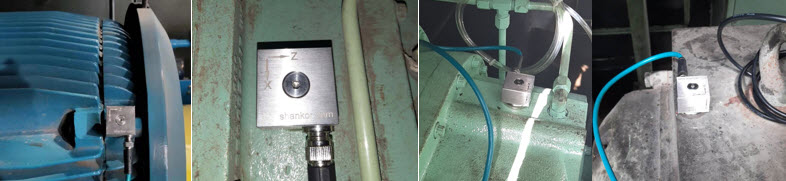

Easy installation
      A sensor supports ''harmless'' installation, and the collected data is processed by an Edge computing ,then send to the cloud platform directly Via 2G/3G/4G mobile network. It will save lots of cost and time for field installation as do not need any wiring and IT configuration on site.

Plug and Play
     The “Error proofing design'' of XG8900 can ensure the easy site installation and avoid any wrong connection.　

Anytime,Anywhere
    The PC web browsing and mobile APP of the platform allow users to access the running status of the monitored equipment anytime and anywhere worldwide.

Professional Parameter List

• Node Serial Number
• Node status
• Node Temperature
• X axial velocity RMS through median filter
• Interval maxim of X axial velocity RMS
• Interval minim of X axial velocity RMS
• Y axial velocity RMS through median filter
• Interval maxim of Y axial velocity RMS
• Interval minim of Y axial velocity RMS
• Z axial velocity RMS through median filter
• Interval maxim of Z axial velocity RMS
• Interval minim of Z axial velocity RMS
• Cycle counter between Modbus transfers
• Root mean square
• Form factor
• Crest factor positive
• Crest factor negtive
• Impulse factor positive
• Impulse factor negtive
• Margin factor positive
• Margin factor negtive
• Kurtosis
• Skewness
• Root mean square
• Form factor
• Crest factor positive
• Crest factor negtive
• Impulse factor positive
• Impulse factor negtive
• Margin factor positive
• Margin factor negtive
• Kurtosis
• Skewness
• Root mean square
• Form factor
• Crest factor positive
• Crest factor negtive
• Impulse factor positive
• Impulse factor negtive
• Margin factor positive
• Margin factor negtive
• Kurtosis
• Skewness
