Compact roughness measuring
A simple instrument and intuitive to usel as easy as using smartphone with large, illuminated 4.3′ TFT touch display

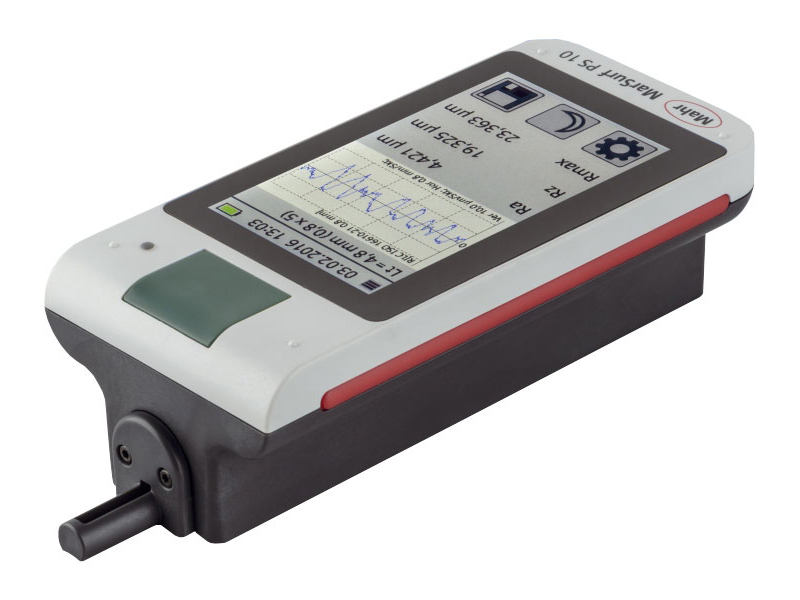

Mahr Mobile Surface Roughness Tester – MarSurf PS10
Compact roughness measuring instrument for mobile use by MSP Metrology (M) Sdn Bhd from Mahr Germany.
Features
Data backup
- Data can be safe as TXT, X3P or PDF file
- The creation of completed PDF measuring records in the measuring device. Specific comments for the PDF measuring records can be entered directyly into MarSurf PS10

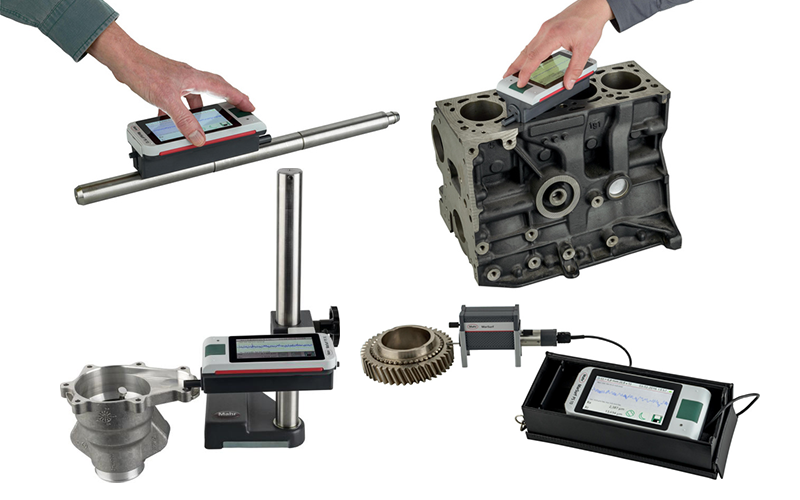

Flexible and all-in-one solution
This small and lightweight can make on-site surface roughness measurement. It can measure during the production process. Can measure in all positions: horicontal, vertical, and upside down.
Specifications
CHARACTERISTICS
- Compact roughness measuring instrument for mobile use.
- Simple and intuitive to use: As easy to use as a smart phone.
- Large, illuminated 4.3′ TFT touch display.
- Adjustable display.
- Start button also serves as the Home button for direct access to the start screen.
- Data backup as TXT, X3P or PDF file.
- Creation of completed PDF measuring records in the measuring device.
- Customer-specific comments for the PDF measuring record are entered directly into the MarSurf PS 10.
- An all in one solution. Small and lightweight (approx. 500g).
- Instrument flexibility: Removable drive unit.
- All the measuring positions needs: horizontal, vertical, upside down.
- 31 Surface parameters offer the same range of functions as a laboratory instruments.
- Error free operation due to an integrated, removable roughness standard.
- Quick access to frequently used functions via the Favorites list in the display.
- Very short activation time: results available within seconds.
- Automatic cut-off selection, even non-specialists can get the correct measuring results.
Full Specifications
| MarSurf PS10 set 2µm | MarSurf PS10 set 5µm | MarSurf PS10 C2 | |
| Measuring Principle | Stylus Method | Stylus Method | Stylus Method |
| Probe | Inductive Skidded Probe | Inductive Skidded Probe | Inductive Skidded Probe |
| Measuring units | Metric/ Inches | Metric/Inches | Metric/Inches |
| Measuring range(mm) | 0.350 | 0.350 | 0.350 |
| Profile Resolution | 8 Nm | 8 Nm | 8 Nm |
| Filter according to ISO/ JIS | Gaussian filter as per ISO 16610-21(formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off) | Gaussian filter as per ISO 16610-21 (formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off) | Gaussian filter as per ISO 16610-21(formerly ISO 11562), special filter as per DIN EN ISO 13565-1, Lambda s filter as per DIN EN ISO 3274 (can be switched off) |
| Short stroke under ISO/ JIS | Selectable | Selectable | Selectable |
| Traversing Length according ISO 12085(MOTIF) | 1 mm, 2 mm, 4 mm, 8 mm,12 mm, 16 mm | 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm |
1 mm, 2 mm, 4 mm
|
| Evaluation Length in according to ISO/ JIS | 1.25 mm 4,0 mm 12.5 mm | 1.25 mm, 4.0 mm,125 mm | 1.25 mm, 40 mm |
| Number n of sampling length according to ISO / JIS | Selectable: 1 to 16 | Selectable: 1 to 16 | Selectable: 1 to 16 |
| Stylus | 2 µm | 5µm | 2µm |
| Measuring force (N) | 0.00075 | 0.00075 | 0.00075 |
| Calibration function | min. 1350 profile, min. 500000 results, min 250 PDF records, expandable to 32 GB with micro SD card | min. 1350 profile, min. 500000 results, min. 250 PDF records, expandable to 32 GB with micro SD card | min. 1350 profile, min. 500000 results, min. 250 PDF records, expandable to 32 GB with micro SD card |
| Other | Lock/Password protected, date/time | Lock/Password protected, date/time | Lock/Password protected, date/time |
| System of protection | IP 40 | IP 40 | IP 40 |
| Rechargeable batteries | Lithium-ion battery, min. 1200 measurements | Lithium-ion battery, min. 1200 measurements | Lithium-ion battery, min. 1200 measurements |
| Wide range power supply | 100 to 264V | 100 to 264V | 100 to 264V |
| Dimension in mm | 160 mm x 77 mm x 50 mm | 160 mm x 77 mm x 50 mm | 160 mm x 77 mm x 50 mm |
Contact us today to inquire about the MarSurf PS10 and enhance your surface roughness measurement capabilities.
