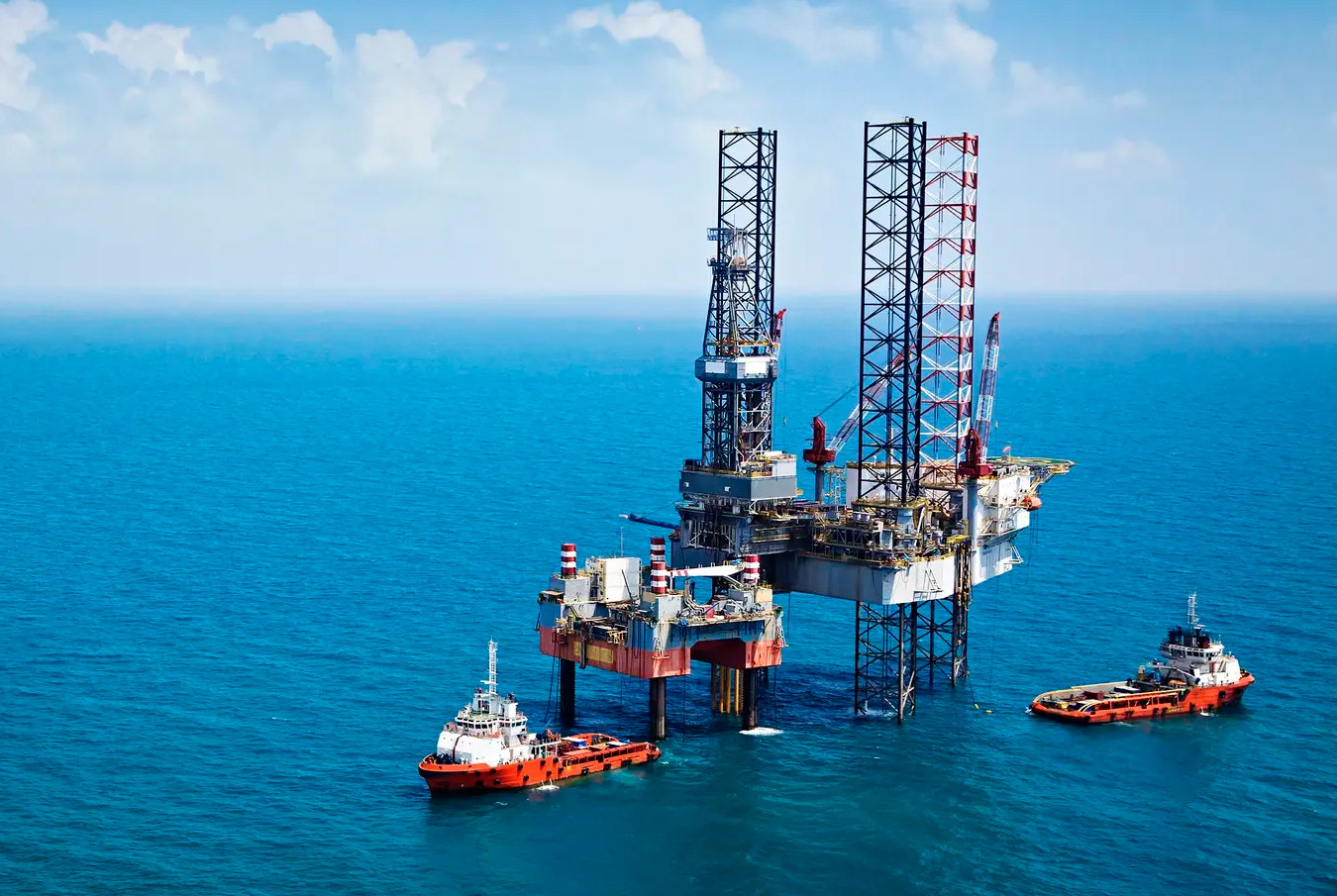

Hempel Protective Coating System is one of the PTS approval coating system for both external and internal coatings meant for onshore and offshore facilities specifically on the metallic substrates (Both domestic and international projects). It shall also include coatings for new construction and maintenance. The follow listed environments and more-

i. Coating System for Atmospheric (Insulated and Non-Insulated)
ii. Coating System forHigh Temperature
iii. Coating System for Immersed
iv. Coating System for Splash Zone
v. Coating System for Spray Zone

vi. Coating System for Sweating


 PTS APPROVAL CAOTING SYSTEM - NEW CONSTRUCTION COATING SYSTEM

•  N1
  • Carbon Steel Surface
  • Atmospharic Zone
  • With / Without Insulation
  • (-5 CelD to 120CelD)

	PROTECTIVE COATING AND LINING				PTS 15.20.03
					JUNE 2019
					FOR INTERNAL USED
APPENDIX 1: COATING SYSTEM
A1.1	NEW CONSTRUCTION COATING SYSTEM
SERVICES CATAGORIES	SYSTEM ID	COAT	Paint and Caoting Specification	Hempel Protective Paint	Nominal DFT (µm)	Surface Profile (Rz, µm)
N1 Carbon Steel Atmospheric Zone With/Without Insulation (Between -5°C to 120°C)	N1-A (Without Insulation)	1	Inorganic Zinc Silicate Primer (b)	Hempel's Galvosil 15780	75	50-75
		2	High Solid Epoxy	Hempaprime Multi 500 45950	150
		3	Aliphatic Polyurethane	Hempathane HS TC 55610	60
		TOTAL			285
	N1-B (Without Insulation)	1	Inorganic Zinc Silicate Primer (b)	Hempel's Galvosil 15780	75	50-75
		2	Epoxy Micaceous Iron Oxide Build Coat	Hempaprime Multi 500 45950	150
		3	Aliphatic Polyurethane	Hempathane HS TC 55610	60
		TOTAL			285
	N1-C* (With Insulation)	1	Inorganic Zinc Silicate Primer (b)	n/a	75	50-75
		2	High Solid Epoxy	n/a	150
		TOTAL			225
	N1-D (With Insulation)	1	Inorganic Zinc Silicate Primer (b)	Hempel's Galvosil 15780	75	50-75
		2	Epoxy Micaceous Iron Oxide Build Coat	Hempaprime Multi 500 45950	150
		TOTAL			225
N2 Carbon Steel Cryogenic Zone Under Insulation (Between -70°C to -5°C)	N1-A (Without Insulation)	1	Amine Cured Phenolic Epoxy	Hempadur 85671	100	50-75
		2	Amine Cured Phenolic Epoxy	Hempadur 85671	100
		3	Amine Cured Phenolic Epoxy	Hempadur 85671	100
		TOTAL			300
