Screen Specifications:
- Brightness: ≥4000 cd/m²
- Uniformity: >95%
- Viewing Angles:
- Horizontal: 140°±10°
- Vertical: 130°±10°
- Optimal Viewing Distance: ≥8m
- Refresh Rates:
- Standard: 960Hz-1920Hz
- High: 1920Hz-3840Hz
- Frame Rate: ≥60 fps
Power Efficiency
- Power Consumption:
- Maximum: ≤586W/m²
- Average: ≤196W/m² (at 1/3 brightness)
- Power Distribution: ≤884W/m² (calculated)
- Brightness Control: 256-level adjustment
Image Quality
- Color Depth: 14-16 bit per channel (RGB)
- Color Range: 4.398 trillion colors
- Pixel Specifications:
- Pitch: 8.0mm
- Density: 15,625 dots/m²
- Configuration: 1R1G1B
- LED Type: SMD3535 (2727/2525)
Reliability & Durability
- Lifespan: ≥100,000 hours
- MTBF: ≥10,000 hours
- Brightness Maintenance: ≤15% attenuation after 3 years
- Pixel Defects:
- 0 continuous malfunctioning pixels
- <0.0001 discrete defects (0 at factory)
- <0.0003 blind spots (0 at factory)
Environmental Specifications
- Operating Conditions:
- Temperature: -20°C to +40°C
- Humidity: 10% to 90% RH
- Protection Features:
- Over-temperature/overload protection
- Power failure recovery
- Image compensation
- Optional lightning protection

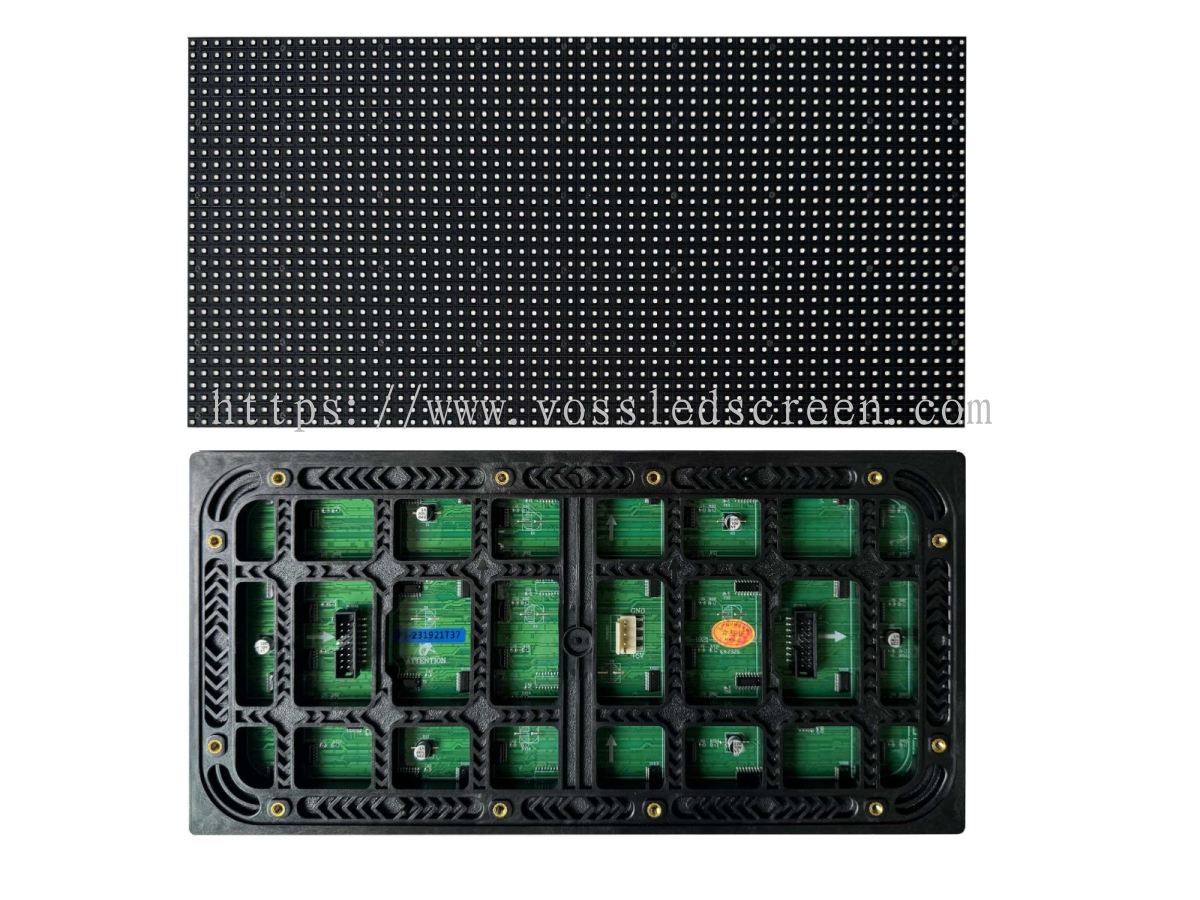

Physical Specifications
- Dimensions: 320×160×20mm
- Weight: 0.52kg ±0.01kg
- Flatness: <1mm/m²
- Design: Integrated LED driver
Electrical Specifications
- Input Voltage: 5V DC ±0.1V
- Max Current: ≤6A
- Power Consumption: ≤30W
- Drive Method: 1/5 constant current
System Integration
- Control: Computer-controlled with point-to-point mapping
- Inputs: DVI/VGA/HDMI/DP, composite video, S-Video, YPbPr
- Operation: Real-time video synchronization
Power Supply Options
- 40A: 4-5 modules
- 50A: 5-6 modules
- 60A: 5-7 modules
- 80A: 7-9 modules
