The VB500 pet food vision counting and packing machine performs precise batch counting using high-speed CCD image technology. Compared to weighing methods, which can be inaccurate due to variations in individual item weight, the vision system delivers significantly higher accuracy.
Model :
- VB
Features :
- The pet food vision counting & packing machine performs batch counting using high-speed CCD image technology.
- Vision-based bulk counting offers higher precision and efficiency compared to traditional weighing solutions.
- It reduces costs by eliminating inaccuracies caused by weight variations and by minimizing labor requirements.
- A high-speed CCD camera scans objects as they fall from vibrating chutes.
- Full projection images are captured and processed using optimized algorithms.
- The system accurately counts falling objects to achieve reliable batch counting and packaging.
- High-speed array camera scans up to 10,000 times per second for continuous and accurate counting, avoiding errors caused by weight differences.
- Coarse and fine control panels with a 2–3 level vibration system ensure stable and accurate material feeding.
- Intelligent learning function reduces setup time by automatically learning material falling patterns and fine-tuning parameters.
- One machine can count multiple types of materials, with saved programs for quick reuse.
- One-key tailing cleaning prevents material mixing during product changeover, with optional forced cleaning time.
- All packaging data is automatically recorded and stored in local logs for easy tracking.
- Packaging and label data can be uploaded to ERP and other management systems for centralized control.
- No under-counting errors: excess packages are automatically detected and returned, reducing customer complaints.
- Intelligent alarm system detects foreign objects, material shortages, and machine abnormalities.
- Always-open hopper outlet prevents material blockage and ensures smooth material flow into bags.
Advantages :
- High efficiency:Vision based counter uses large track and scan falling objects,instead of using several narrow tracks to separate objects one by one
- 99.99% accuracy for weight of each screw is not exactly the same
- Insensitive to dust
- Fast changeover:One button operation for clearing to change objects
- Self-learning software:Easy to calibrate for multiple objects counting
- Extremely low maintenance
- Reducing labor cost
- Compacted design to save space

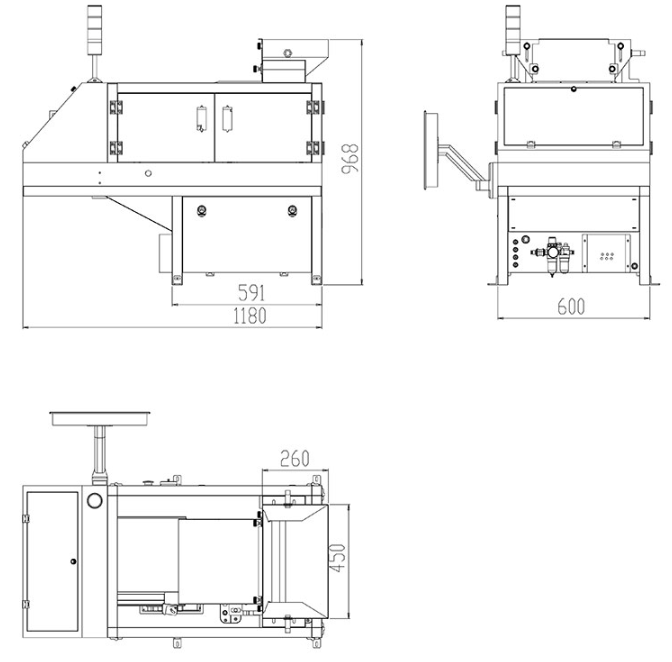

Dimension :
.png)
Applications :
.png)
Specifications :
| Model | VB224-2 | VB63-2 |
| Applicable material size | Cube : 2mm≤L≤30mm | Cube : 2mm≤L≤20mm |
| Cuboid /cylinder : φ≤20mm,L≤50mm | Cuboid /cylinder : φ≤15mm,L≤30mm | |
| Counting accuracy | 99.99%, No negative error | |
| Unit pack | ≥100 | ≥50 |
| Counting efficiency | φ10mm,1000pcs,3-4bags/min | φ3mm,1000pcs,3bags/min |
| φ25mm,200pcs,3-4bags/min | φ15mm,100pcs,2bags/min | |
| Type of applicable materials | Fasteners, connectors, cold pressure terminals, capacitor, zipper, buttons, seeds, medicine, blood collection needles, steel beads, etc | |
| Applicable to packaging machine | Vertical and premade pouch packaging machine | |
| Power/gas source | 220V,50HZ/0.5-0.6MPa | |
| Dimension | 1180mm × 600mm × 970mm | 940mm × 400mm × 920mm |
| Power | 0.4kw | |
