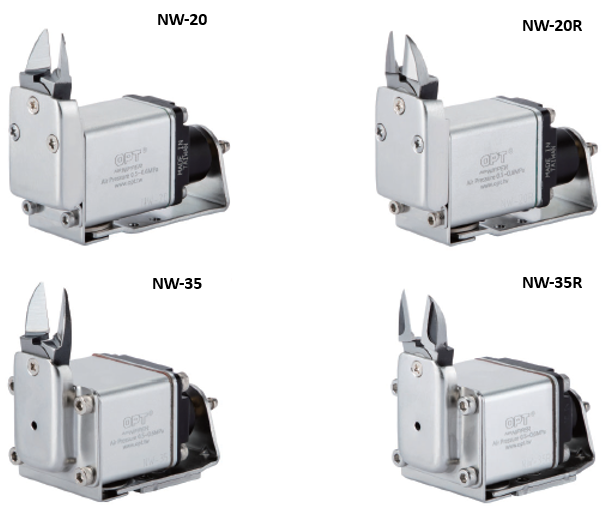

Model :
- NW Series
.png)
Features :

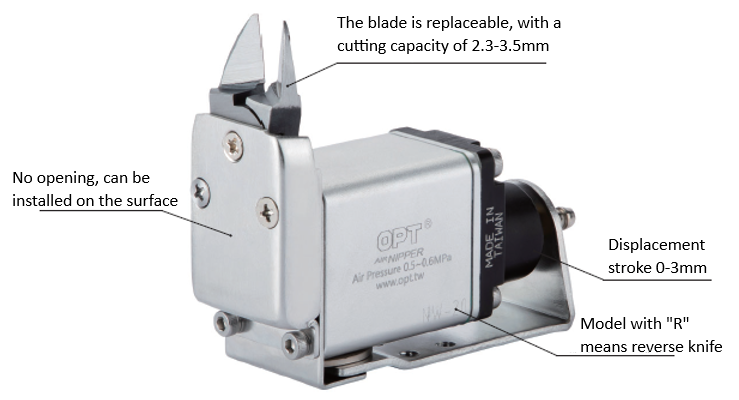

Labelled Diagram :
.png)

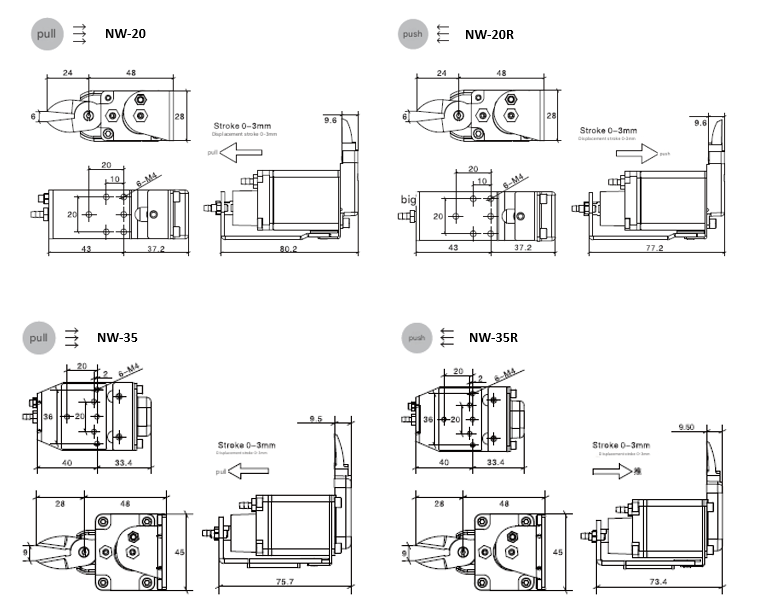

Dimension :
- Installation
.png)
Assembly Drawing :
.png){kind=spacer}

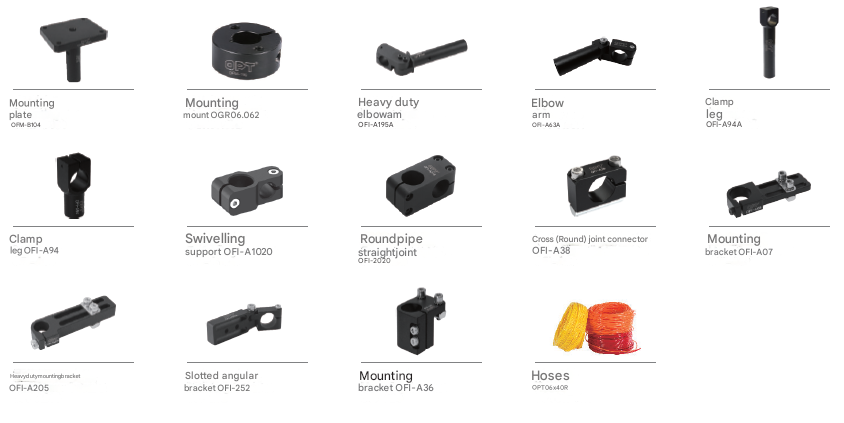

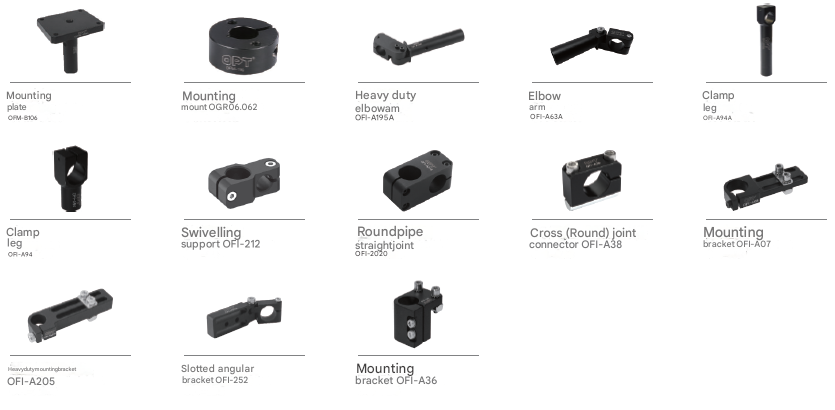

Accessories :
- NW-20 / NW-20R
.png){kind=spacer}
- NW-30 / NW-30R
.png){kind=spacer}

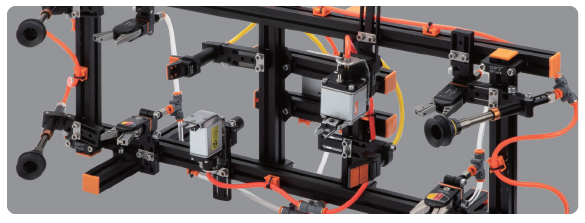

Applications :
Specifications :
| Model | Air inlet (mm) | Gas consumption (per time/cm²) | Operation pressure (kgf/cm²) | Weight Weight(g) |
| NW-20 | 6 | 39 | 4-5 | 220 |
| NW-20R | 6 | 39 | 4-5 | 220 |
| NW-35 | 6 | 64 | 4-5 | 300 |
| NW-35R | 6 | 64 | 4-5 | 300 |

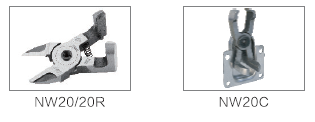

Adapter Blade :
- NW-20 / NW-20R
.png)
- NW-30 / NW-30R
.png)
